ECM Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

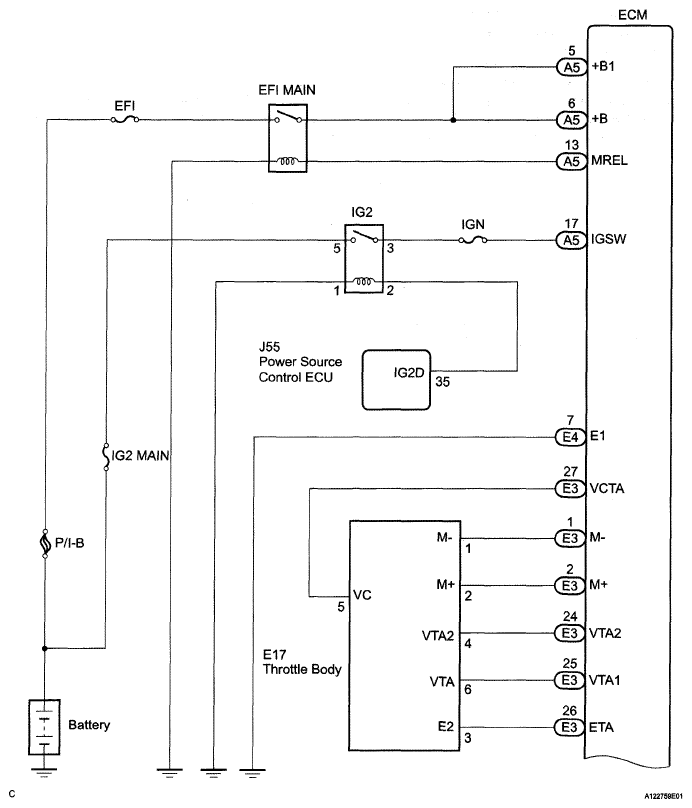

Fig 1: ECM Power Source - Wiring Diagram (1 Of 2)
G05316157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

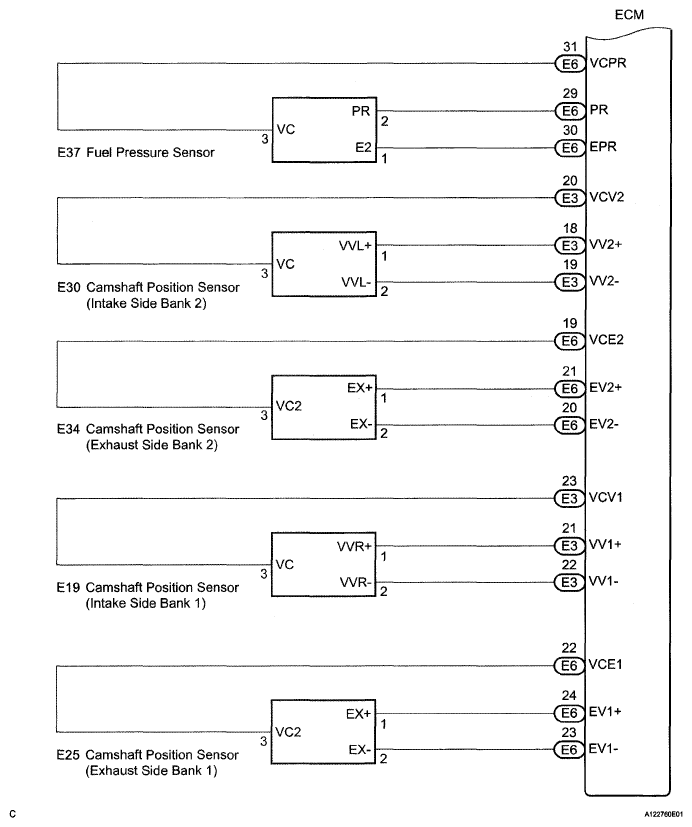

Fig 2: ECM Power Source - Wiring Diagram (2 Of 2)
G05316158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
