Monitor Description
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

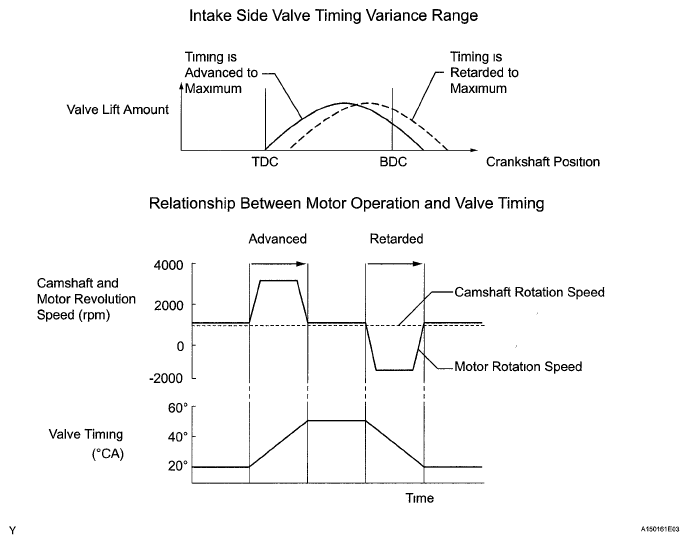

This DTC is output when an IC overheat malfunction or an overcurrent malfunction is detected in the intake side camshaft timing control motor. The camshaft timing control motor is equipped with a self diagnostic function, which is used to output diagnosis signals (VTM) to the ECM If the ECM receives a motor driver interior malfunction signal, a DTC is output immediately (1 trip detection logic) If the engine is idled for 10 seconds, a DTC is detected
