DTC P0230 Fuel Pump Primary Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

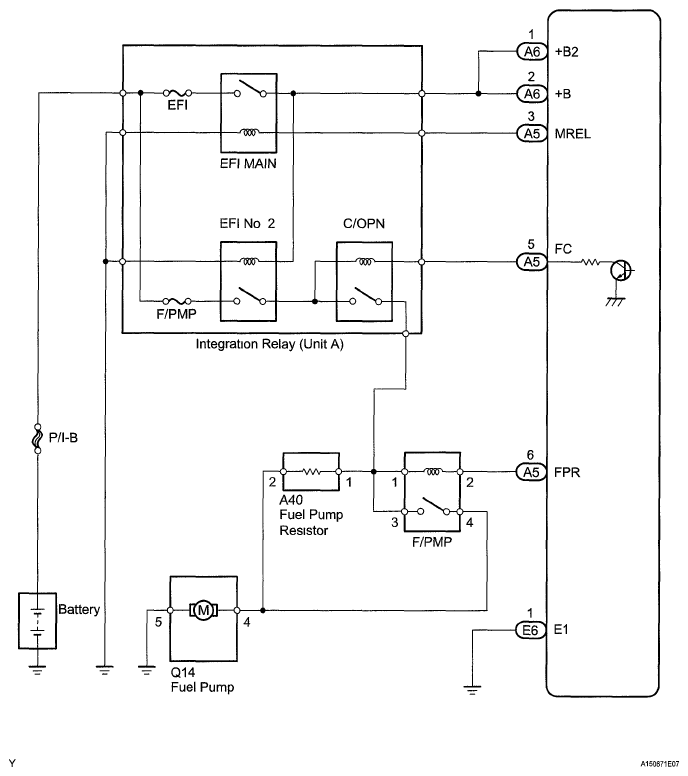

Fig 1: Fuel Pump Primary Circuit - Wiring Diagram
G05751545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This troubleshooting procedure is based on the premise that engine cranking is possible. If the engine does not crank, proceed to the PROBLEM SYMPTOMS TABLE .
