Cylinder Head Gasket: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

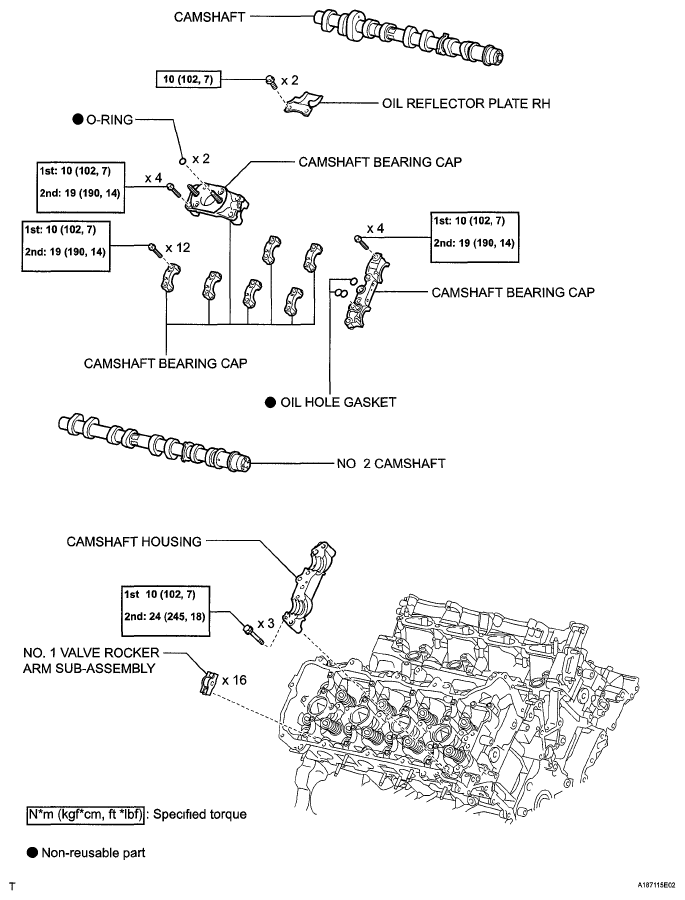

Fig 1: Identifying Cylinder Head Gasket Replacement Components (1 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

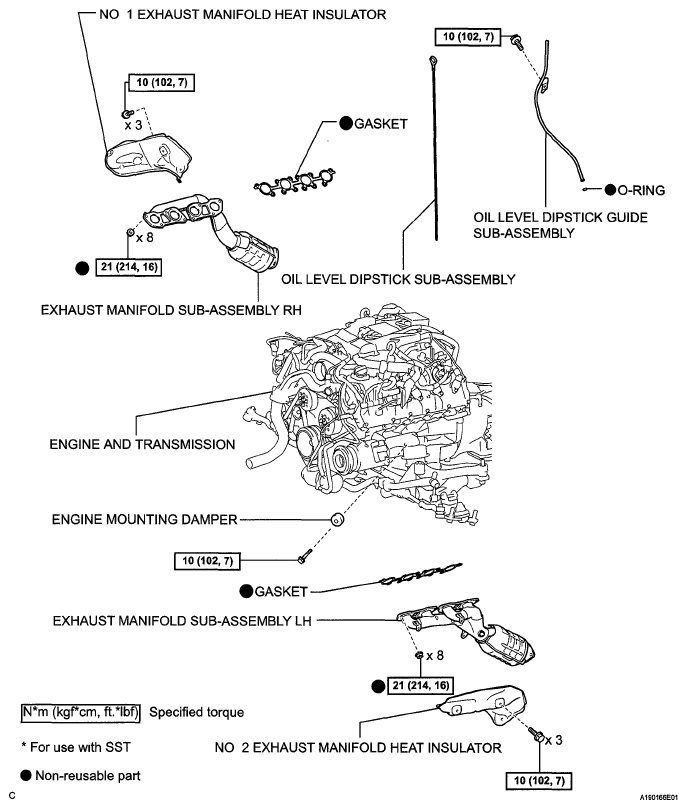

Fig 2: Identifying Cylinder Head Gasket Replacement Components (2 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

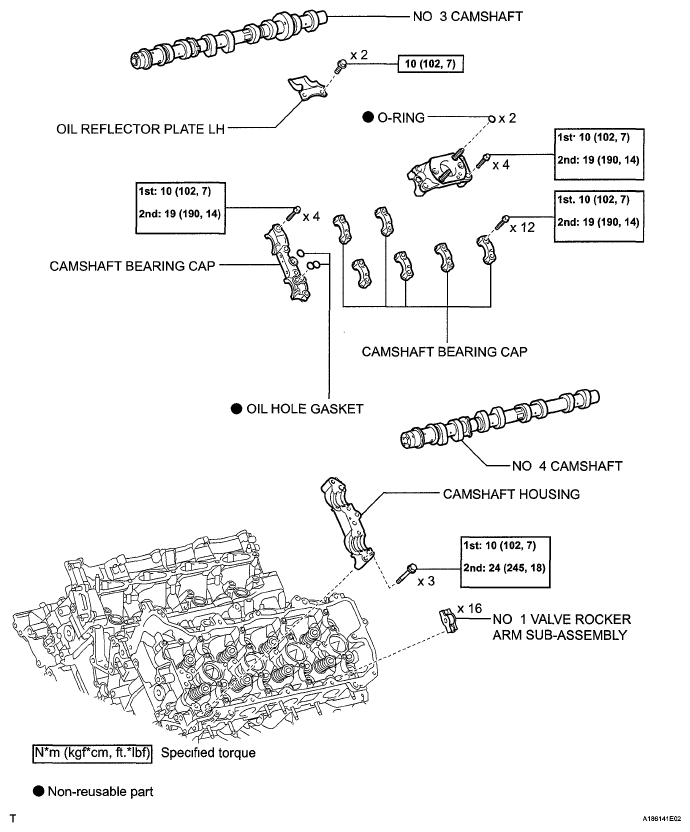

Fig 3: Identifying Cylinder Head Gasket Replacement Components (3 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

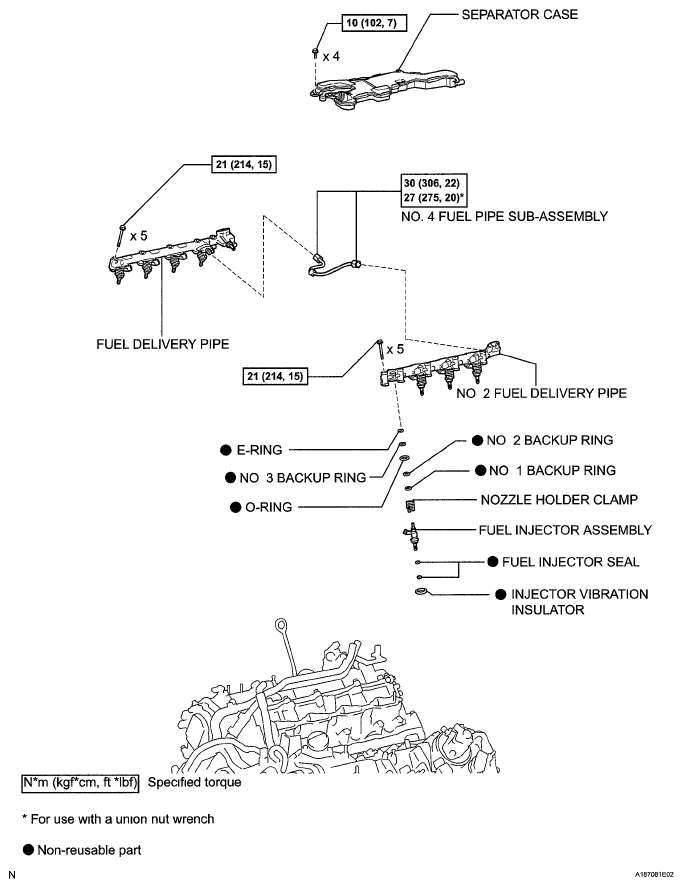

Fig 4: Identifying Cylinder Head Gasket Replacement Components (4 Of 5) with Torque Specifications

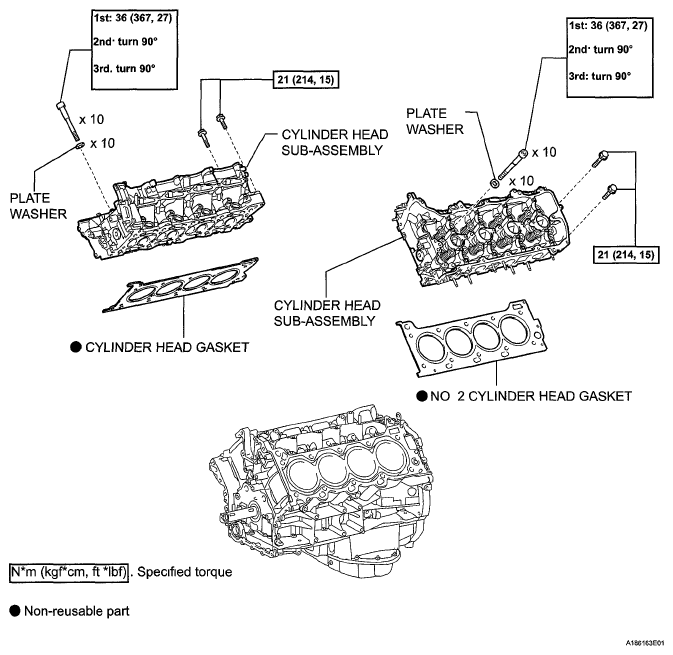

Fig 5: Cylinder Head Gasket Replacement Components (5 Of 5) with Torque Specifications
