Parking Brake Switch: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

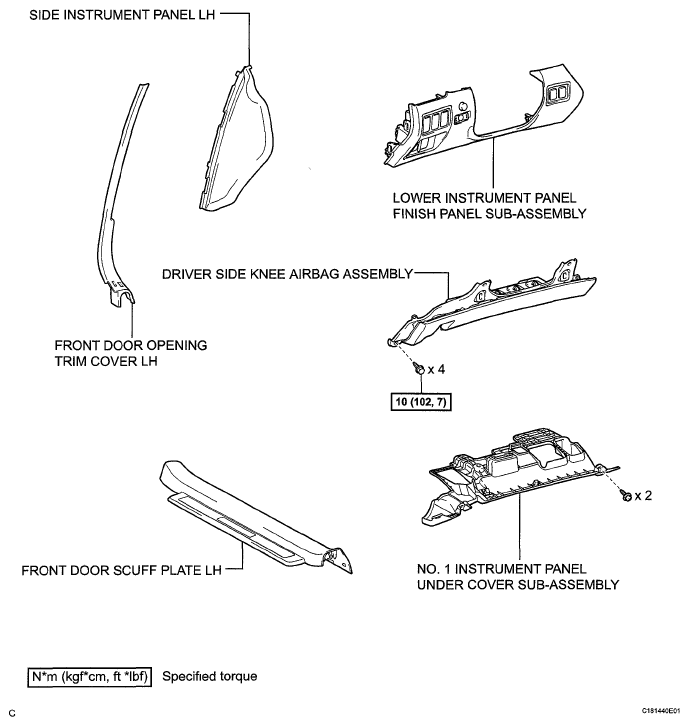

Fig 1: Identifying Parking Brake Switch Replacement Components (1 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Parking Brake Switch Replacement Components (2 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

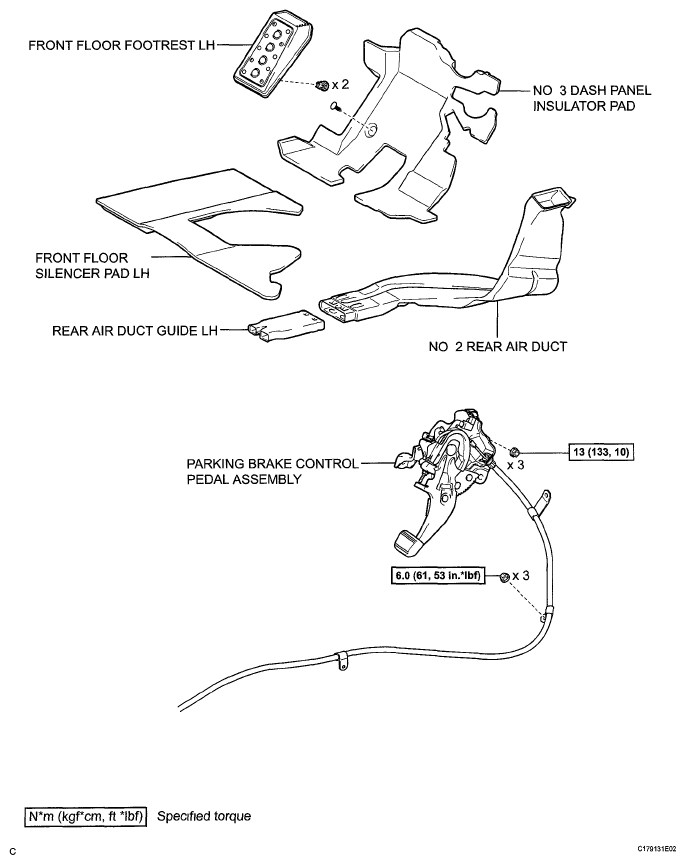

Fig 3: Identifying Parking Brake Switch Replacement Components (3 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

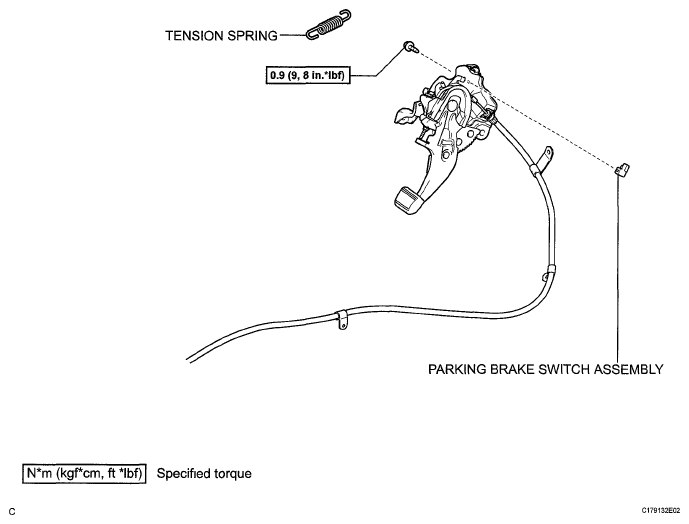

Fig 4: Parking Brake Switch Replacement Components (4 Of 5) with Torque Specifications

Fig 5: Parking Brake Switch Replacement Components (5 Of 5) with Torque Specifications
