Parking Brake Pedal: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

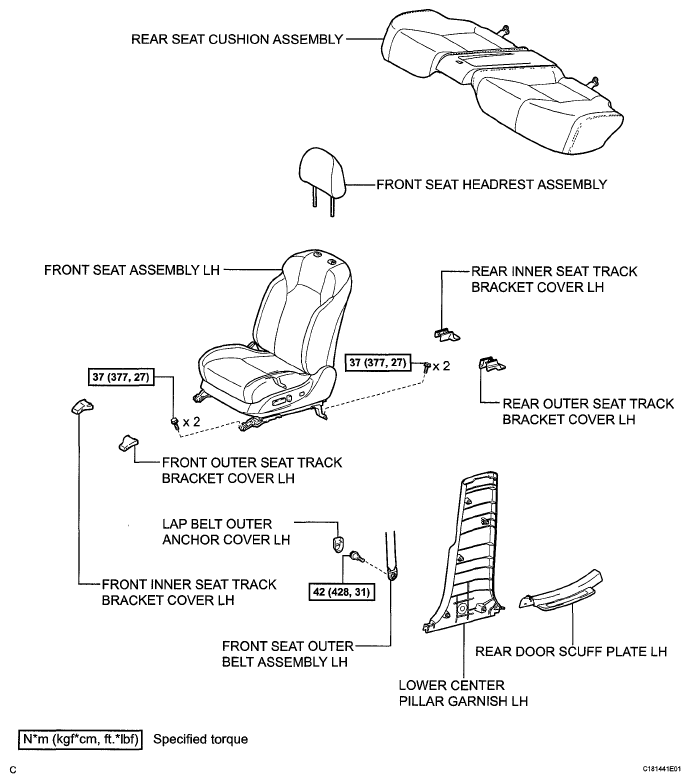

Fig 1: Identifying Parking Brake Pedal Replacement Components (1 Of 5) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

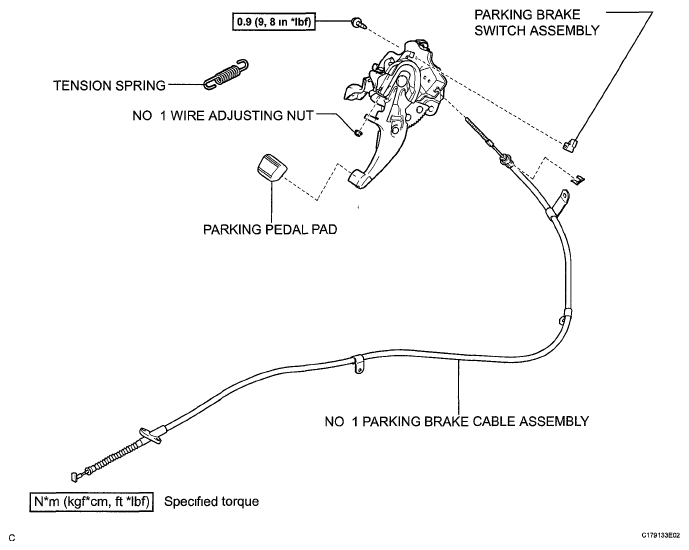

Fig 2: Identifying Parking Brake Pedal Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

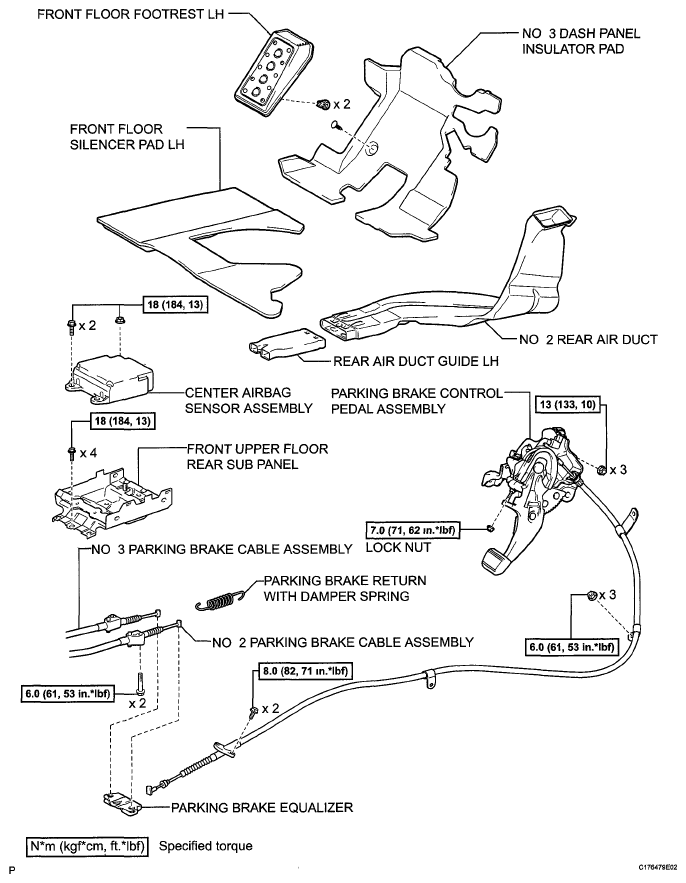

Fig 3: Identifying Parking Brake Pedal Replacement Components (3 Of 5)With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Parking Brake Pedal Replacement Components (4 Of 5) With Torque Specification

Fig 5: Parking Brake Pedal Replacement Components (5 Of 5) With Torque Specification
