Parking Brake Cable: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

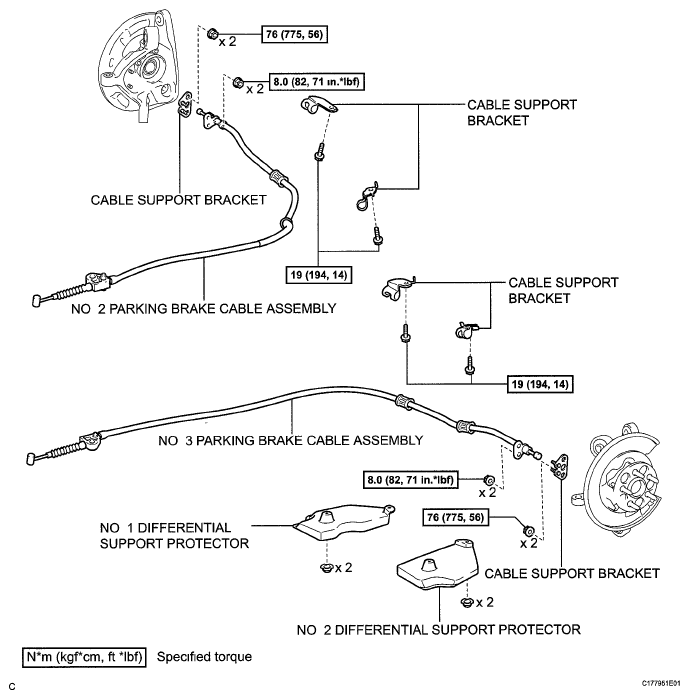

Fig 1: Parking Brake Cable Replacement Components (1 Of 3) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

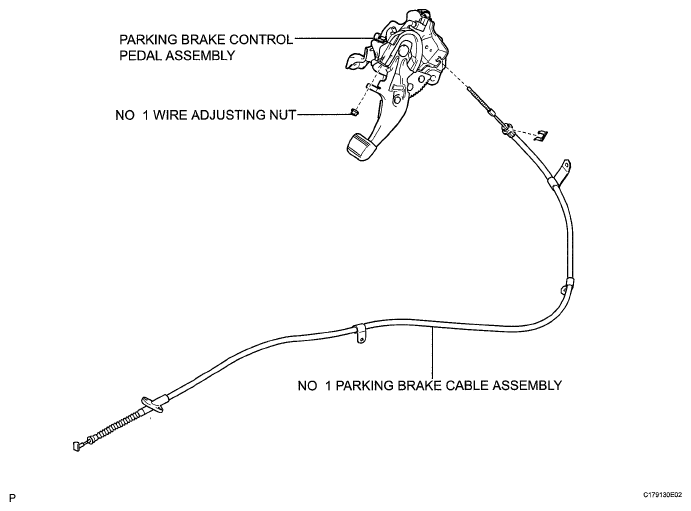

Fig 2: Parking Brake Cable Replacement Components (2 Of 3) With Torque Specification

Fig 3: Parking Brake Cable Replacement Components (3 Of 3) With Torque Specification
