Section 10 (Brake System (Hydraulic))
>>
Brake Master Cylinder
>>
Components
Brake Master Cylinder: Components
WARNING:
This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

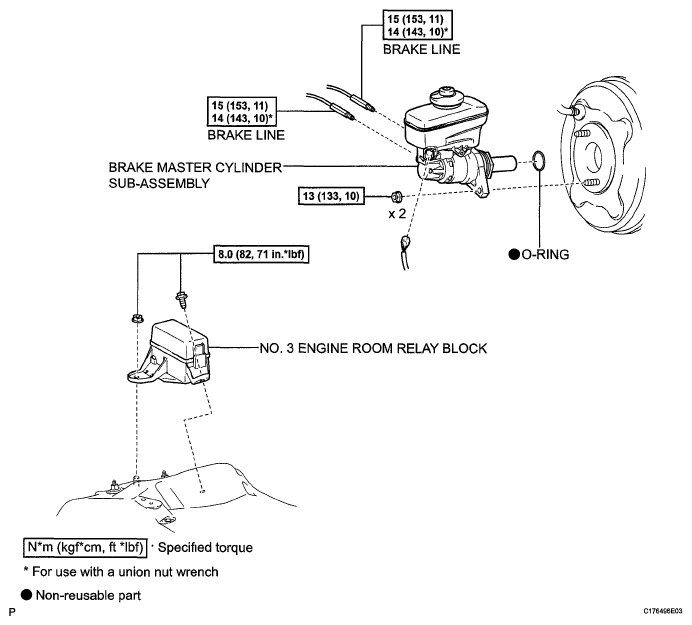

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Brake Master Cylinder Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

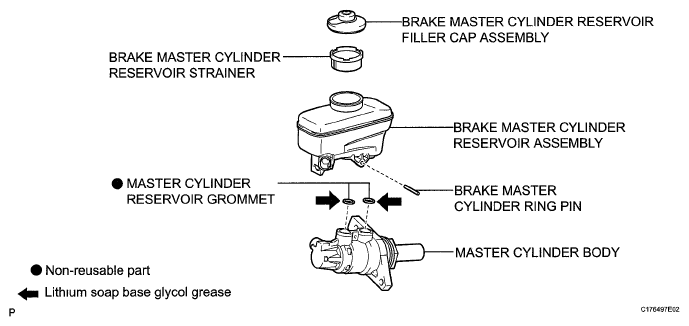

Fig 4: Identifying Brake Master Cylinder Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
