Brake Booster: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 2)
G05752771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

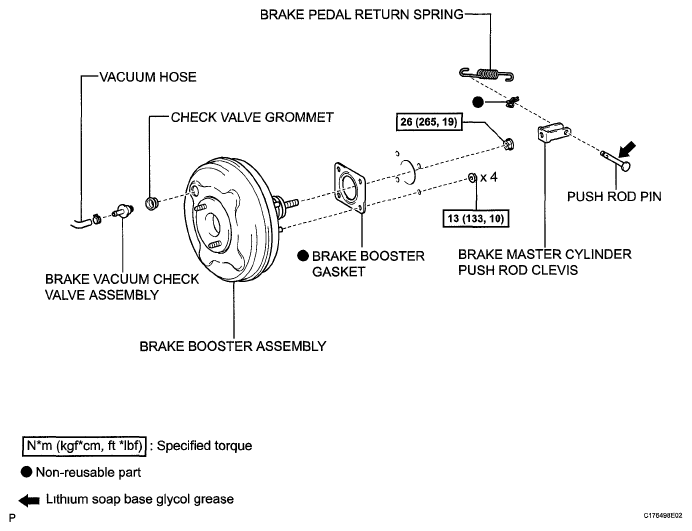

Fig 2: Brake Booster Replacement Components With Torque Specifications (2 Of 2)
G05752772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
