Home >> Lexus >> 2008 >> IS 250 RWD, Automatic >> Repair and Diagnosis >> External Pages >> Different car >> Section 1 (Exterior) >> Front Door Window Frame Molding >> Components

Front Door Window Frame Molding: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

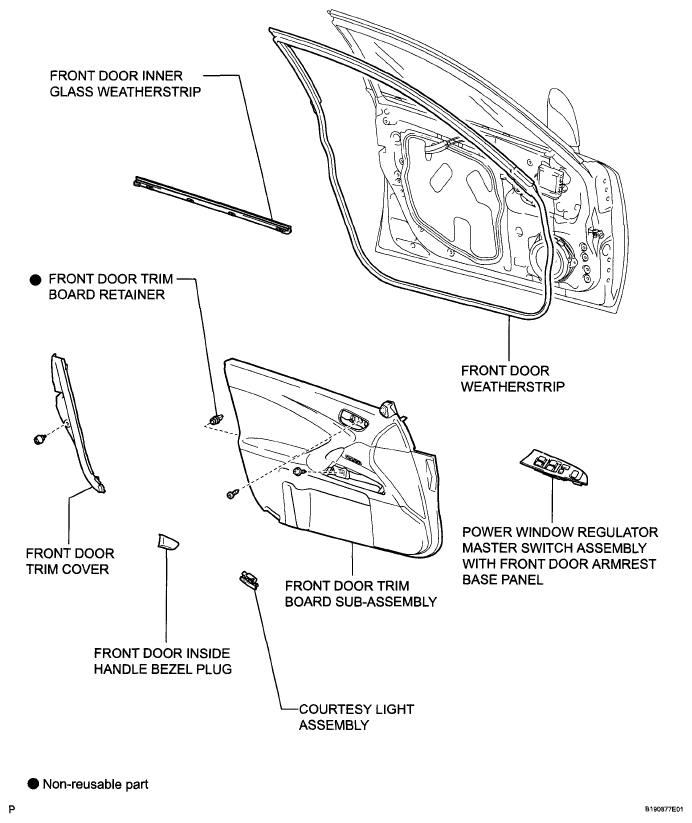

Fig 1: Identifying Front Door Window Frame Molding Components (1 Of 2)
G05756814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

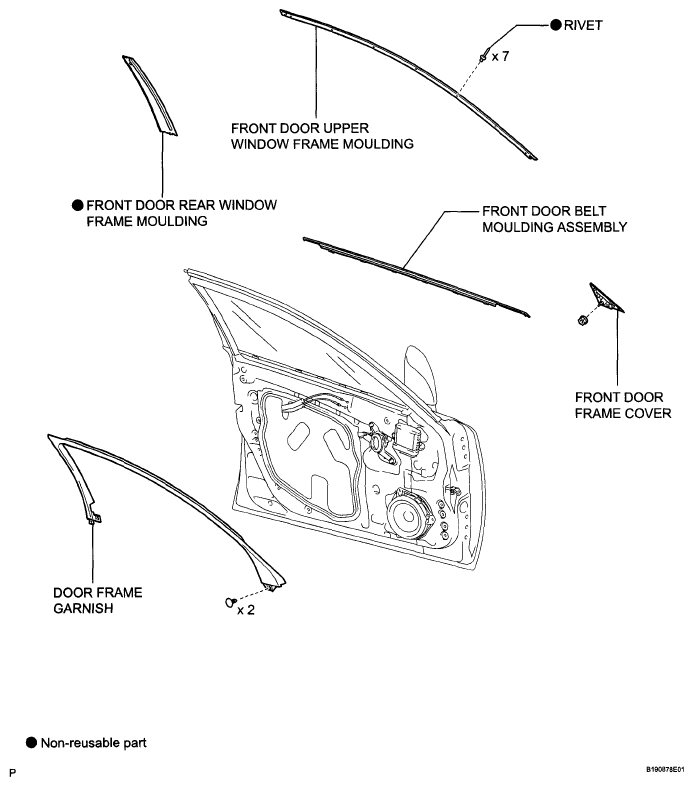

Fig 2: Identifying Front Door Window Frame Molding Components (2 Of 2)
G05756815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
