Parking Brake Assembly: Reassembly

1. Install the parking brake anchor block and cable support bracket with 2 nuts.

   Torque: 76 N*m (775 kgf*cm, 56 ft.*lbf)

   Fig 1: Locating Parking Brake Anchor Block Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear axle hub and bearing assembly (See INSTALLATION ).

1. Apply a thin layer of high temperature grease to the area where the parking brake plate contacts the parking brake shoe (See REASSEMBLY  ).

1. Apply a thin layer of high temperature grease to the area where the parking brake shoe lever contacts the parking brake anchor block.
2. Install the parking brake shoe lever to the parking brake cable assembly.

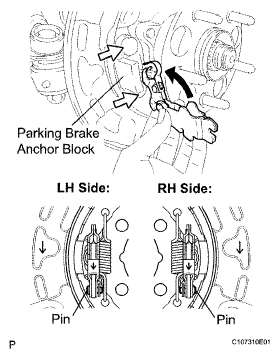

   NOTE: Take care to install the correct parking brake shoe lever because the direction of the pin is different between left and right.
   Fig 2: Installing Parking Brake Shoe Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, install the No. 2 parking brake shoe assembly with the No. 1 shoe hold down spring cup, No. 1 compression spring and No. 1 shoe hold down spring pin.

   SST 09718-00010

   HINT:

   Use the service hole to retain the No. 2 shoe hold down spring pin with your finger.

   Fig 3: Installing No. 2 Parking Brake Shoe Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, install the No. 1 parking brake shoe assembly with the No. 1 shoe hold down spring cup, No. 1 compression spring and No. 1 shoe hold down spring pin.

   SST 09718-00010

   HINT:

   Use the service hole to retain the No. 1 shoe hold down spring pin with your finger.

   Fig 4: Installing No. 1 Parking Brake Shoe Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply high temperature grease to the thread and all joining areas of the parking brake shoe adjusting screw set.
   Fig 5: Locating Parking Brake Shoe Adjusting Screw Set

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the parking brake shoe adjusting screw set.
   Fig 6: Identifying Parking Brake Shoe Adjusting Screw Set

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 1 parking brake shoe return spring.
   Fig 7: Identifying No. 1 Parking Brake Shoe Return Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 2 parking brake shoe return spring.
Fig 8: Identifying No. 2 Parking Brake Shoe Return Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

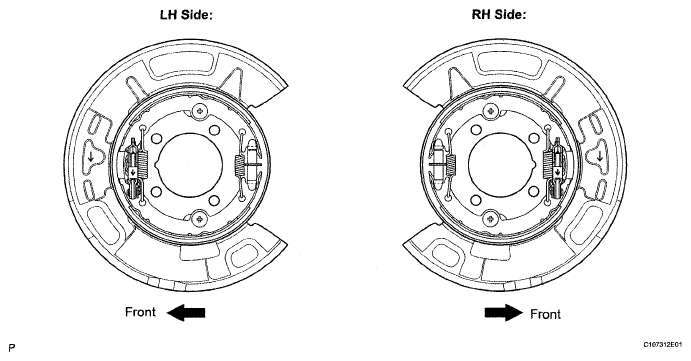

1. Make sure that all the parts are installed properly. If necessary, reinstall properly.
   Fig 9: Identifying Parking Brake

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Align the matchmarks on the rear disc and rear axle hub.

1. Install the rear disc brake caliper assembly with the 2 bolts and 2 new No. 1 caliper plates.

   Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

   NOTE:

   • Do not twist the brake hose.
   • Make sure that the bolts are free from damage and foreign matter.
   • Do not overtighten the bolts.
     Fig 10: Locating Rear Disc Brake Caliper Assembly And Bolts

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
