Roof Drip Side Finish Molding: Removal

1. Put protective tape around the roof drip side finish molding.
2. Using a molding remover, disengage the 6 clips and remove the roof drip side finish molding.
   NOTE:

   • Do not remove the clips.
   • If the clips are damaged or fall off, replace them with new clips.

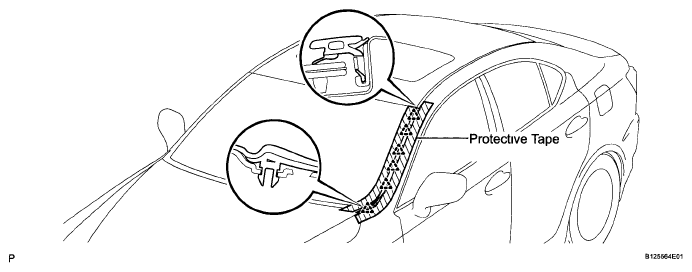

     Fig 1: Identifying Roof Drip Side Finish Molding Clips

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the following procedure if replacing the No. 1 windshield outside molding clips.

1. Remove the 5 No. 1 windshield outside molding clips.

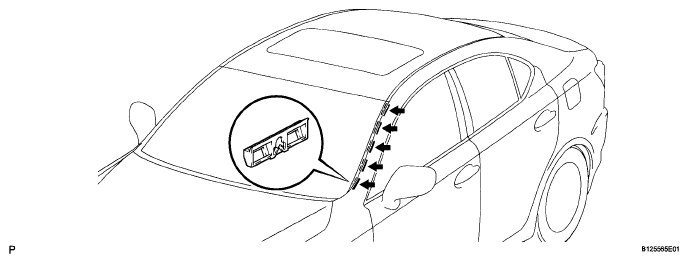

   Fig 2: Locating No. 1 Windshield Outside Molding Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Put protective tape around the roof drip side finish molding center.
2. Using a molding remover, disengage the 2 clips and remove the roof drip side finish molding center.
   NOTE:

   • Do not remove the clips.
   • If the clips are damaged or dropped off, replace them with new clips.

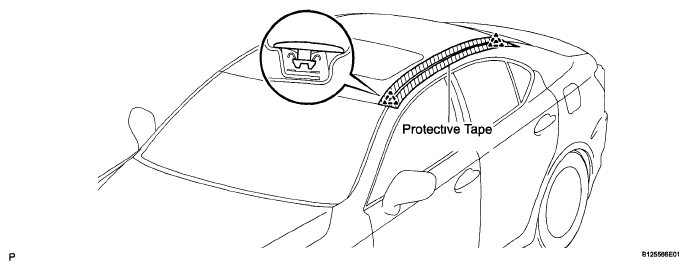

     Fig 3: Identifying Roof Drip Side Finish Molding Center Clips

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the following procedure if replacing the No. 1 roof drip side finish molding clips.

1. Remove the 2 No. 1 roof drip side finish molding clips.

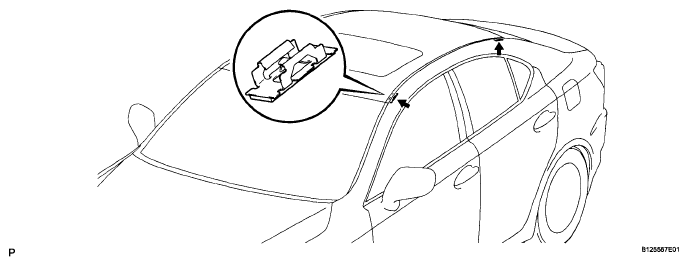

   Fig 4: Locating No. 1 Roof Drip Side Finish Molding Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
