Wiper Switch: Removal

REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)
1. The steering wheel assembly is turned to the right and remove the screw as shown in the illustration.

  Fig 1: Locating Steering Column Cover Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. The steering wheel assembly is turned to the left and remove the screw as shown in the illustration.

  Fig 2: Locating Steering Wheel Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws and remove the steering column cover lower.

  Fig 3: Identifying Steering Column Cover Lower Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the 4 clips and 3 claws to remove the steering column cover upper.

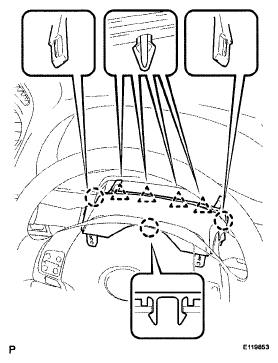

  Fig 4: Identifying Steering Column Cover Upper Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
1. The steering wheel assembly is turned to the right and remove the screw as shown in the illustration.

  Fig 5: Locating Steering Column Cover Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. The steering wheel assembly is turned to the left and remove the screw as shown in the illustration.

  Fig 6: Locating Steering Wheel Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws and remove the screw and the steering column cover lower.

  Fig 7: Identifying Steering Column Cover Lower Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the 4 clips and 3 claws to remove the steering column cover upper.

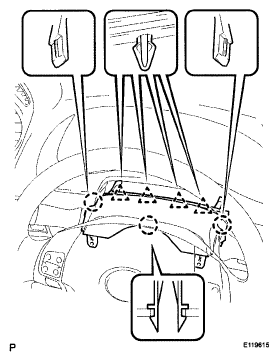

Fig 8: Identifying Steering Column Cover Upper Clips And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
1. Disconnect the 2 connectors.
2. Disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.
NOTE: If the claw is pushed with excessive force, it may break.

Fig 9: Removing Windshield Wiper Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
