DTC C0278/11 Open in ABS Solenoid Relay Circuit; DTC C0279/12 Short to B+ in ABS Solenoid Relay Circuit: Wiring Diagram

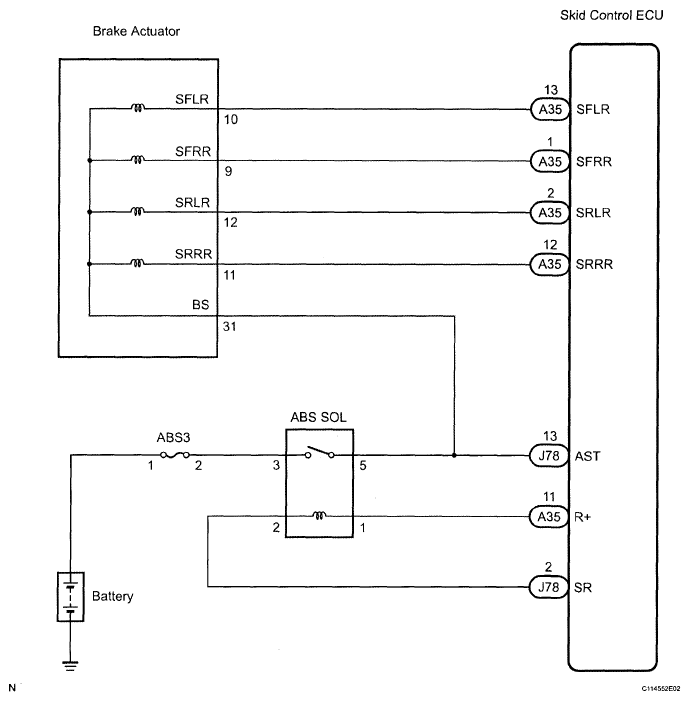

Fig 1: ABS Solenoid Relay Wiring Diagram
G05830539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
