Roof Headlining: Removal

  1. REMOVE NO. 2 REAR SEAT ASSEMBLY LH (w/ Rear No. 2 Seat)

    HINT:

    See REMOVAL .

  2. REMOVE NO. 2 REAR SEAT ASSEMBLY RH (w/ Rear No. 2 Seat)

    HINT:

    See REMOVAL .

  3. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Using a screwdriver, disengage the 6 claws and remove the scuff plate.

    HINT:

    Tape the screwdriver tip before use.

    Fig 1: Identifying Front Door Scuff Plate LH Claws
    G05267155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described above for the LH side.

  5. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the cap nut.
    2. Using a screwdriver, disengage the 2 claws and remove the trim board.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Identifying Cowl Side Trim Board LH Claws
      G05267156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures described above for the LH side.

  7. REMOVE QUARTER SCUFF PLATE INSIDE LH
    1. Remove the 2 quarter scuff plate inner covers.
    2. Using a screwdriver, disengage the 4 claws and remove the scuff plate.

    HINT:

    Tape the screwdriver tip before use.

    Fig 3: Identifying Quarter Scuff Plate Inside LH Claws
    G05267157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE QUARTER SCUFF PLATE INNER RH

    HINT:

    Use the same procedures described above for the LH side.

  9. REMOVE REAR DOOR SCUFF PLATE LH
    1. Using a screwdriver, disengage the 4 claws and remove the scuff plate.
      2. Fig 4: Identifying Quarter Scuff Plate Inner LH Claws
      G05267158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described above for the LH side.

  11. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  12. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  13. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  14. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  15. REMOVE CENTER PILLAR GARNISH LOWER LH
    1. Remove the front seat belt anchor bolt and front seat belt.
    2. Disengage the 2 clips and 2 claws, and remove the center pillar garnish.
      3. Fig 5: Identifying Center Pillar Garnish Lower LH Clips & Claws
      G05267159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CENTER PILLAR GARNISH LOWER RH

    HINT:

    Use the same procedures described above for the LH side.

  17. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. Disengage the 2 claws and clip, and remove the pillar garnish.
      3. Fig 6: Identifying Center Pillar Garnish LH Screws, Claws & Clip
      G05267160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described above for the LH side.

  19. REMOVE BACK DOOR WEATHERSTRIP
  20. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE
    1. Remove the 5 screws.
    2. Using a screwdriver, disengage the 2 claws and remove the mat support plate.

    HINT:

    Tape the screwdriver tip before use.

    Fig 7: Identifying Rear Floor Mat Rear Support Plate Screws & Claws
    G05267161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE QUARTER INSIDE TRIM BOARD LH
    1. Remove the luggage compartment hook by turning it clockwise.
    2. Remove the screw and quarter trim cover.
      Fig 8: Identifying Luggage Compartment Hook & Quarter Trim Cover
      G05267162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and the floor anchor part of the rear No. 1 seat belt assembly.
    4. Remove the 2 screws.
    5. Using a screwdriver, disengage the 8 clips and remove the trim board.

      HINT:

      Tape the screwdriver tip before use.

      Fig 9: Identifying Quarter Inside Trim Board LH Clips
      G05267163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE QUARTER INSIDE TRIM BOARD RH

    HINT:

    Use the same procedures described above for the LH side.

  23. REMOVE ROOF SIDE GARNISH INNER LH
    1. Remove the floor anchor part of the seat No. 2 belt assembly.
    2. Using a screwdriver, firmly push the pin to disengage the clips (A).

      HINT:

      Tape the screwdriver tip before use.

    3. Using a screwdriver, disengage the 8 clips (B and C) and remove the garnish.

      HINT:

      • Tape the screwdriver tip before use.
      • The clip (A) cannot be reused.
      Fig 10: Identifying Roof Side Garnish Inner LH Clips
      G05267164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE ROOF SIDE GARNISH INNER RH

    HINT:

    Use the same procedures described above for the LH side.

  25. REMOVE FRONT PILLAR GARNISH LH
    1. Remove the 2 grip plugs, 2 screws and assist grip.
    2. Using a screwdriver, disengage the clip and remove the garnish.

      HINT:

      Tape the screwdriver tip before use.

      Fig 11: Identifying Grip Plugs & Screws On Garnish
      G05267165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the garnish upward, and remove the pillar garnish from the instrument panel.
    4. w/ Curtain shield airbag: Protect the curtain shield airbag.
      1. Thoroughly cover the airbag with cloth or nylon of 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape.
      NOTE: Cover the curtain shield airbag with the protection cover as soon as the front pillar garnish is removed.
      Fig 12: Fixing Ends Of Cover With Adhesive Tape
      G05267166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described above for the LH side.

  27. REMOVE ASSIST GRIP ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip plugs.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws and assist grip.

    HINT:

    • w/o Rear No. 2 Seat: Remove the 4 assist grips.
    • w/ Rear No. 2 Seat: Remove the 6 assist grips.
    Fig 13: Identifying Assist Grip Assembly
    G05267167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE ROOF CONSOLE BOX SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 3 claws and 2 clips, and remove the console box assembly.

      HINT:

      Tape the screwdriver tip before use.

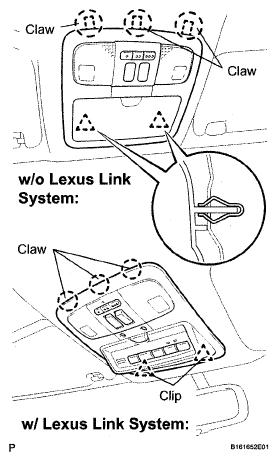

      Fig 14: Identifying Claws & Clips On Console Box Assembly
      G05267168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors.
  29. REMOVE TELEVISION BASE (w/ Rear Seat Entertainment System)
    1. Remove the 2 lenses.
    2. Remove the 2 bolts.
    3. Disengage the 4 clips.
    4. Disconnect the connector and remove the television base.
    5. Disconnect the television display connector.
      6. Fig 15: Identifying Television Base Bolts & Clips
      G05266230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE NO. 1 INTERIOR LIGHT ASSEMBLY (w/o Rear Seat Entertainment System)
    1. Using a screwdriver, remove the lens cover.
    2. Using a screwdriver, disengage the 4 claws and remove the interior light assembly.

      HINT:

      Tape the screwdriver tip before use.

      Fig 16: Identifying No. 1 Interior Light Assembly Claws (Without Rear Seat Entertainment System)
      G05267170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the interior light connector.
  31. REMOVE NO. 2 INTERIOR LIGHT ASSEMBLY
    1. Using a screwdriver, remove the lens cover.
    2. Using a screwdriver, disengage the 4 claws and remove the interior light assembly.

      HINT:

      Tape the screwdriver tip before use.

      Fig 17: Identifying No. 2 Interior Light Assembly Claws
      G05267171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the interior light connector.
  32. REMOVE ROOF HEADLINING REAR TRIM COVER LH (w/ Rear No. 2 Seat)
    1. Pull out the seat belt buckle from the roof headlining trim cover.
    2. Using a roof molding remover, disengage the 6 claws and remove the roof headlining trim cover.
      Fig 18: Identifying Roof Headlining Trim Cover Claws
      G05267172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE VISOR BRACKET COVER
    1. Using a screwdriver, disengage the 4 claws and remove the visor bracket cover.

    HINT:

    • Tape the screwdriver tip before use.
    • Use the same procedure to remove the visor bracket cover on the other side.
      • Fig 19: Identifying Visor Bracket Cover Claws
      G05267173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor assembly.
  35. REMOVE VISOR ASSEMBLY RH
    1. Remove the 2 screws and visor assembly.
  36. REMOVE CENTER VISOR ASSEMBLY LH
    1. Remove the 2 screws and center visor assembly.
  37. REMOVE CENTER VISOR ASSEMBLY RH
    1. Remove the 2 screws and center visor assembly.
  38. REMOVE VISOR HOLDER
    1. Remove the screw and visor holder.

    HINT:

    Use the same procedure to remove the visor holder on the other side.

  39. REMOVE COAT HOOK
    1. Remove the bolt and coat hook.

    HINT:

    Use the same procedure to remove the hook on the other side.

  40. REMOVE COAT HOOK (w/o Rear No. 2 Seat)
    1. Remove the 2 bolt and coat hook.

    HINT:

    Use the same procedure to remove the hook on the other side.

  41. REMOVE ROOF HEADLINING ASSEMBLY
  42. REMOVE ROOF SIDE AIR OUTLET REGISTER
    1. Remove the screw and register.
