Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

  1. w/o Occupant Classification System

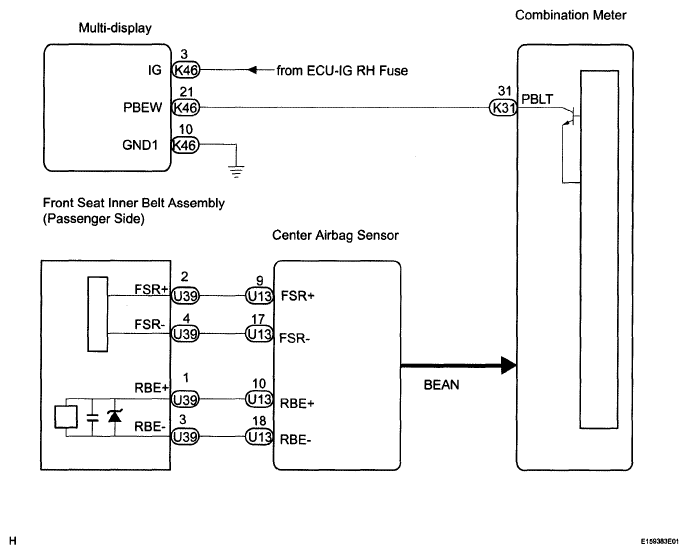

    Fig 1: Front Passenger Side Seat Belt Warning Light Malfunction - Wiring Diagram
    G05807513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Occupant Classification System

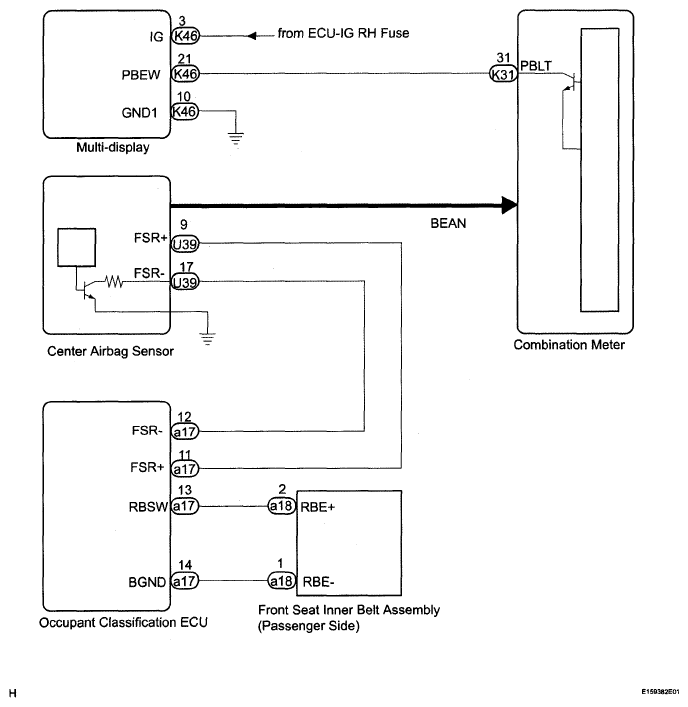

    Fig 2: Front Passenger Side Seat Belt Warning Light Malfunction - Wiring Diagram
    G05807514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
