DTC Check / Clear

CHECK DTC (USING SST CHECK WIRE)
1. Check the DTCs (Present trouble code).
  1. Turn the power switch ON (IG), and wait for approximately 60 seconds.
  2. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
    SST 09843-18040

    Fig 1: Identifying DLC3 Connector Terminals TC And CG
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Connect the terminals to the correct positions to avoid a malfunction.
2. Check the DTCs (Past trouble code).
  1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
    SST 09843-18040

    NOTE: Connect the terminals to the correct positions to avoid a malfunction.
  2. Turn the power switch ON (IG), and wait for approximately 60 seconds.
3. Read the DTCs.
  1. Read the blinking patterns of the DTCs. As examples, the blinking patterns for the normal system code and trouble codes 11 and 31 are shown in the illustration.
    - Normal system code indication (w/o past trouble code)
      The light blinks twice per second.
    - Normal system code indication (w/ past trouble code)
      When the past trouble code is stored in the center airbag sensor, the light blinks only once per second.
    - Trouble code indication
      The first blinking indicates the first DTC. The second blinking occurs after a 1.5-second pause.
    If there are more than 1 code, there will be a 2.5-second pause between each code. After all codes are shown, there will be a 4.0-second pause, and they all will be repeated.

    Fig 2: Blinking Patterns Of DTCs
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - If 2 or more malfunctions are found, the indication begins with the smaller numbered code.
    - If DTCs are indicated without connecting the terminals, proceed to the "TC AND CG TERMINAL CIRCUIT " .
CLEAR DTC (USING SST CHECK WIRE)
1. Clear the DTCs.
  1. When the power switch is turned OFF, the DTCs are cleared.
    HINT:

    Depending on the DTC, the code may not be cleared by turning off the power switch. In this case, proceed to the next procedure.
  2. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3, and then turn the power switch ON (IG).
    SST 09843-18040
  3. Disconnect terminal 13 (TC) of the DLC3 within 3 to 10 seconds after the DTCs are output, and check if the SRS warning light comes on after 3 seconds.
  4. Within 2 to 4 seconds after the SRS warning light comes on, connect terminals 13 (TC) and 4 (CG) of the DLC3.
  5. Check if the SRS warning light goes off within 2 to 4 seconds after connecting terminals 13 (TC) and 4 (CG) of the DLC3. Then, disconnect terminal 13 (TC) within 2 to 4 seconds after the SRS warning light goes off.
  6. Check if the SRS warning light comes on again within 2 to 4 seconds after disconnecting terminal 13 (TC). Then, reconnect terminals 13 (TC) and 4 (CG) within 2 to 4 seconds after the SRS warning light comes on.
  7. Check if the SRS warning light goes off within 2 to 4 seconds after connecting terminals 13 (TC) and 4 (CG) of the DLC3. Also check if the normal system code is output within 1 second after the SRS warning light goes off.
    If DTCs are not cleared, repeat this procedure until the codes are cleared.

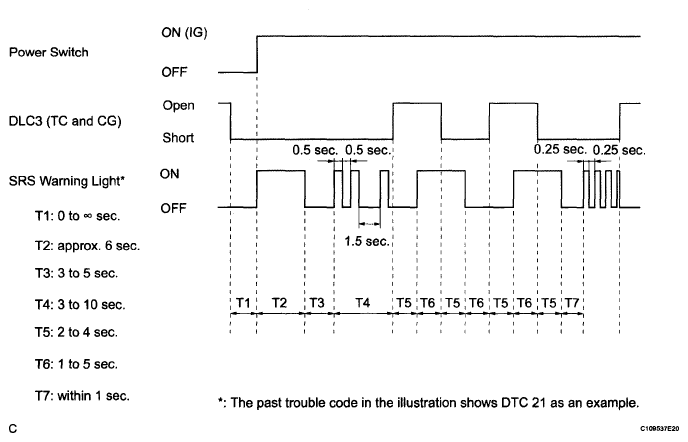

    Fig 3: Blinking Pattern Of SRS Warning Light
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK DTC (USING TECHSTREAM)
1. Connect the Techstream to the DLC3.
2. Turn the power switch ON (IG).
3. Check the DTCs by following the prompts on the Techstream screen.
  HINT:

  Refer to the Techstream operator's manual for further details.
CLEAR DTC (USING TECHSTREAM)
1. Connect the Techstream to the DLC3.
2. Turn the power switch ON (IG).
3. Clear the DTCs by following the prompts on the Techstream screen.
  HINT:

  Refer to the Techstream operator's manual for further details.
