Instrument Panel Speaker: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY
   1. Connect the speaker connector.
   2. Temporarily install the speaker by aligning the positioning pins of the speaker with the instrument panel.
   3. Install the speaker with the 2 bolts.
      NOTE: Do not touch the cone part of the speaker.

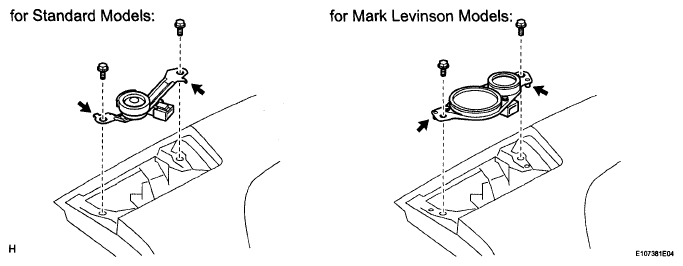

      Fig 1: Locating Front Stereo Component Speaker Assembly Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL SPEAKER HOLE COVER
   1. Attach the 4 clips to install the hole cover.
   Fig 2: Locating Speaker Hole Cover Clips
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
   1. Connect the speaker connector.
   2. Temporarily install the speaker by aligning the positioning pins of the speaker with the instrument panel.
      Fig 3: Locating Positioning Pins Of Speaker

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the speaker with the 2 bolts.
      NOTE: Do not touch the cone part of the speaker.
4. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
   1. Attach the 2 clips and 2 claws to install the panel.
      Fig 4: Identifying No. 2 Instrument Panel Speaker Panel Sub-Assembly Clips And Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
