Vehicle Dynamics Integrated Management (2GR-FSE)

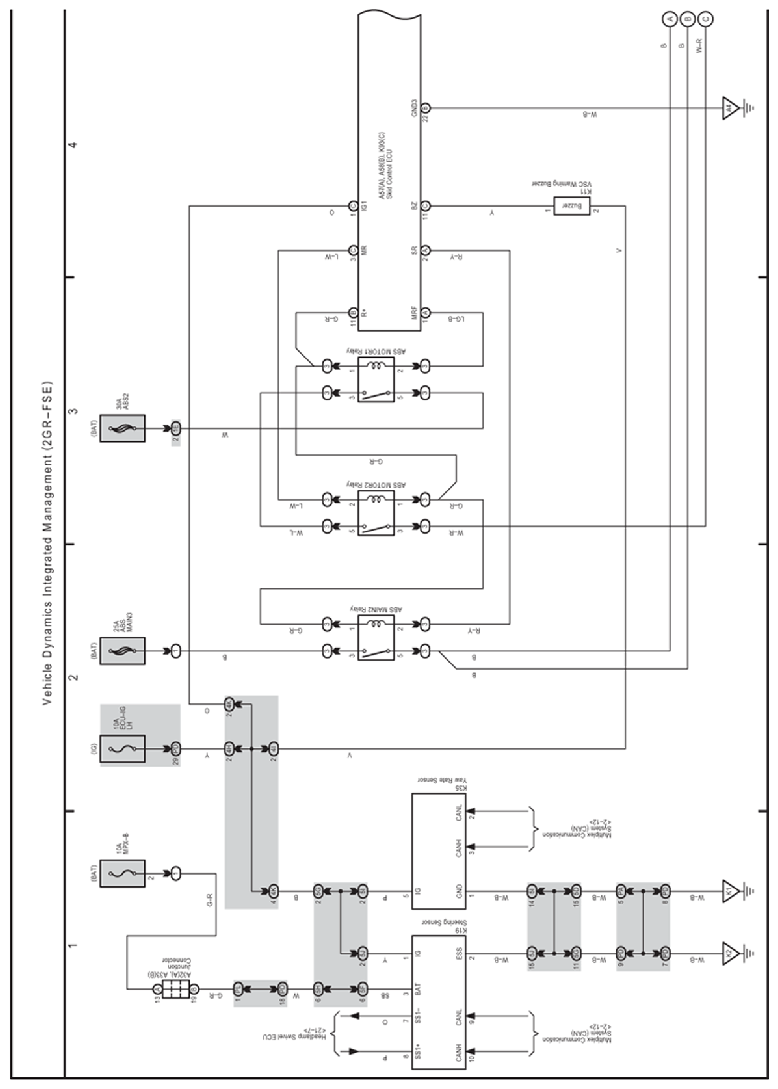

Fig 1: Vehicle Dynamics Integrated Management (2GR-FSE) Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

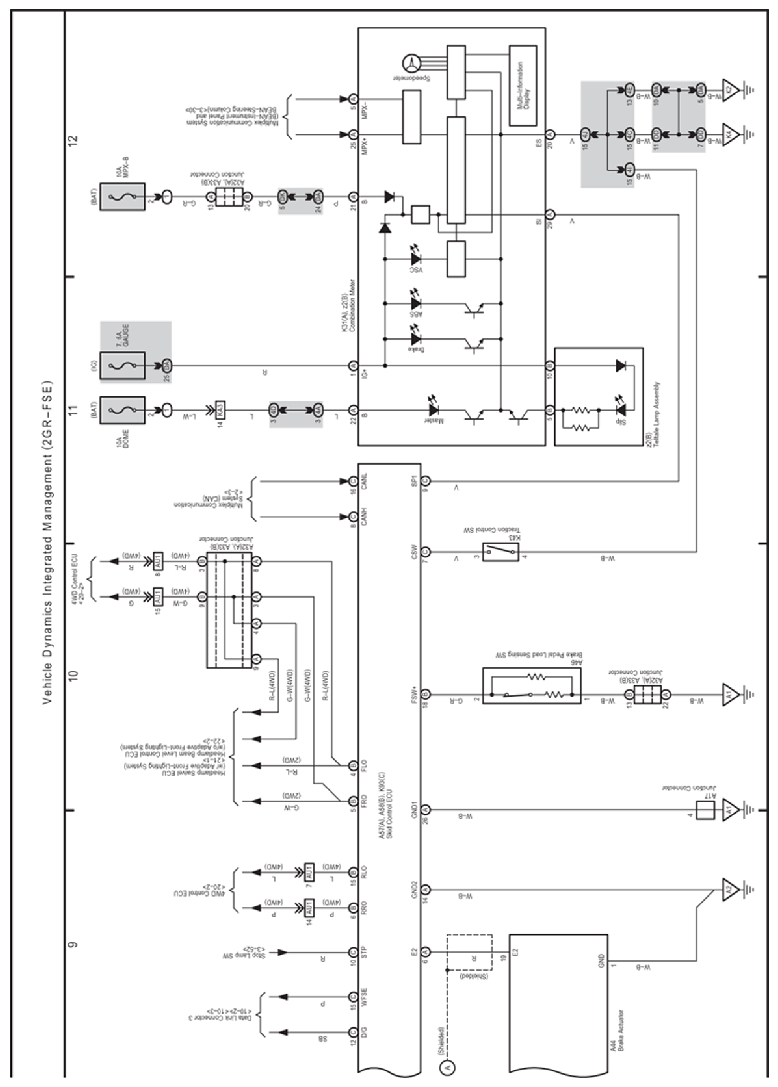

Fig 2: Vehicle Dynamics Integrated Management (2GR-FSE) Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

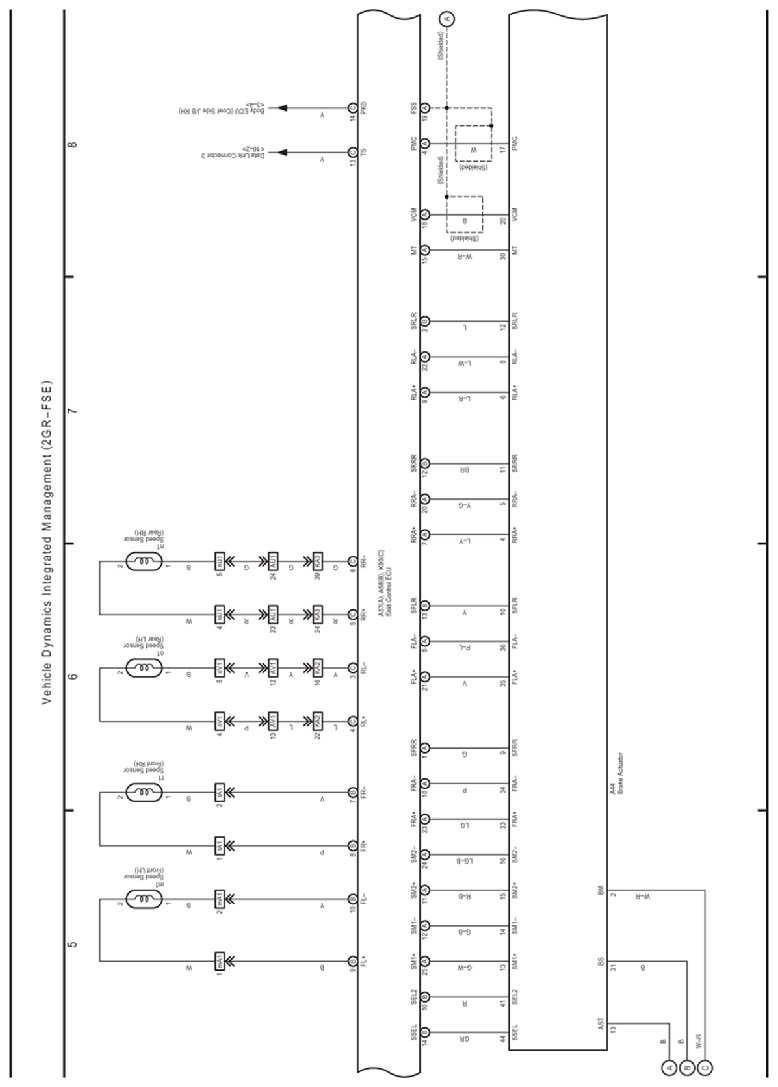

Fig 3: Vehicle Dynamics Integrated Management (2GR-FSE) Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
