VGRS System

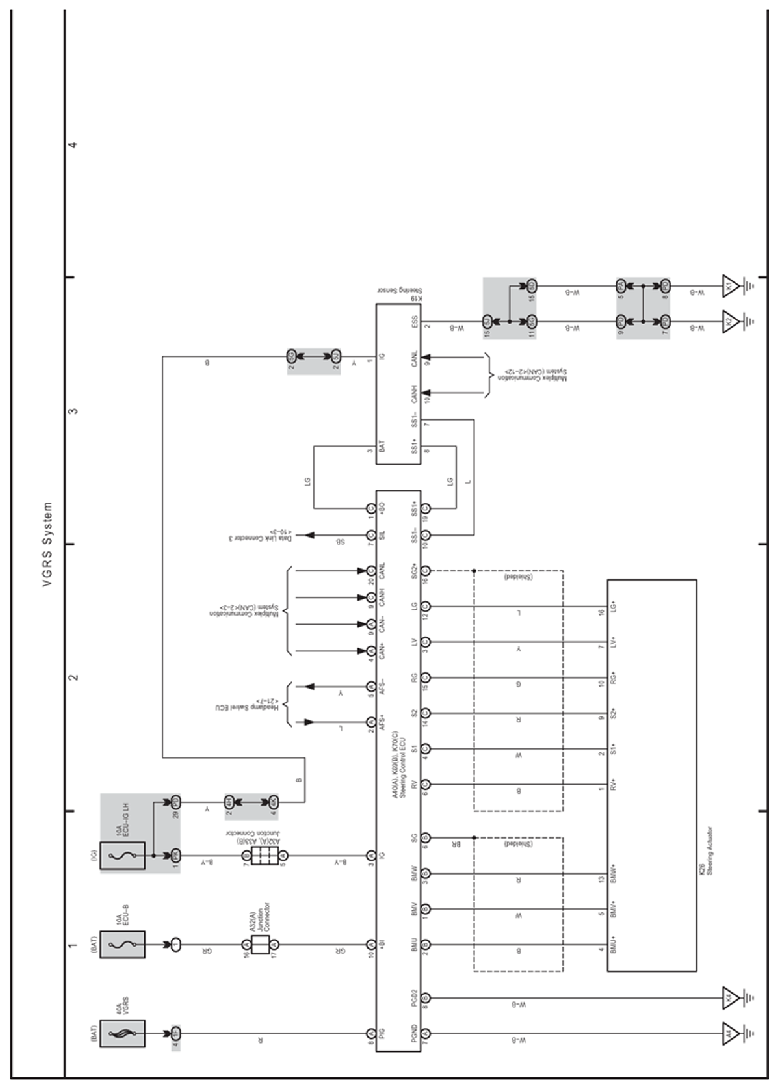

Fig 1: VGRS System Electrical Wiring Diagram (1 Of 2)
G07613216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

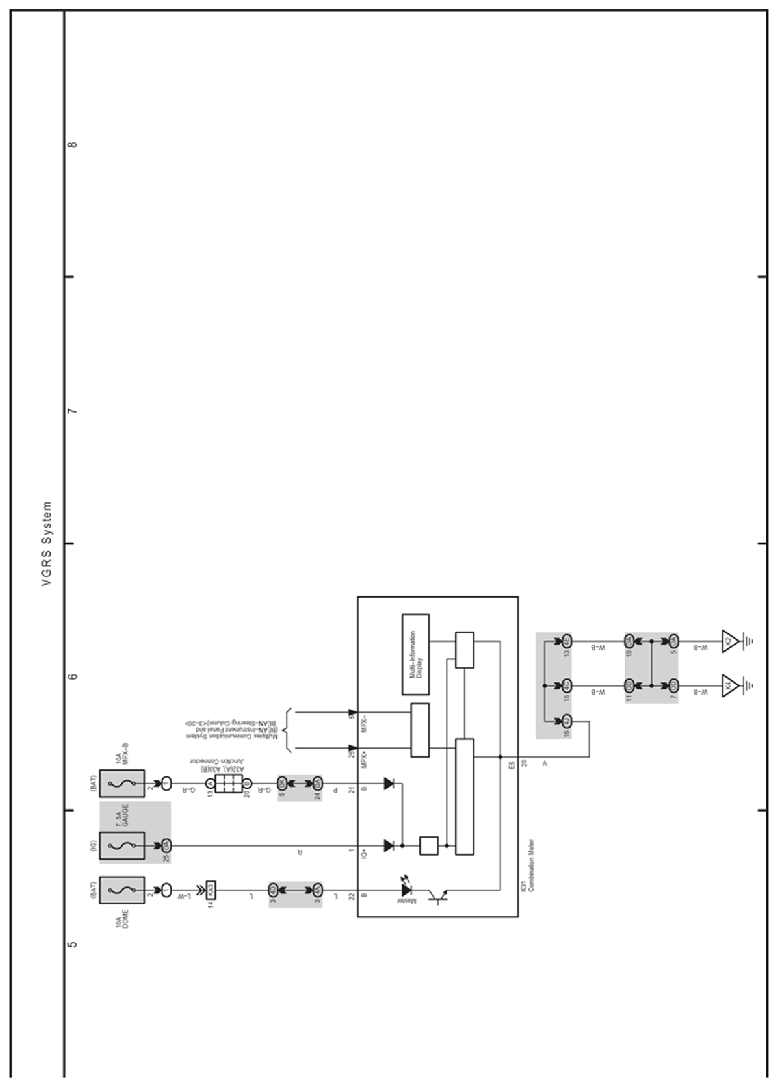

Fig 2: VGRS System Electrical Wiring Diagram (2 Of 2)
G07613217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
