OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Tire Pressure Warning System
Tire Pressure Warning System

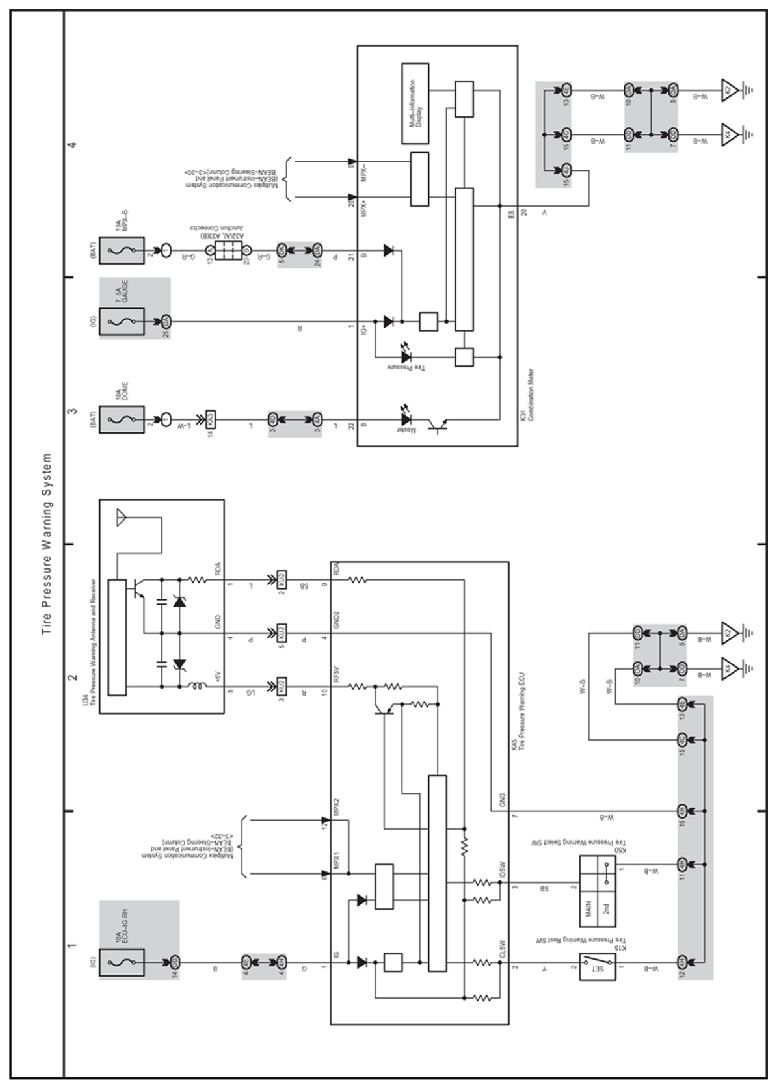

Fig 1: Tire Pressure Warning System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
