OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Pre-Collision System
Pre-Collision System

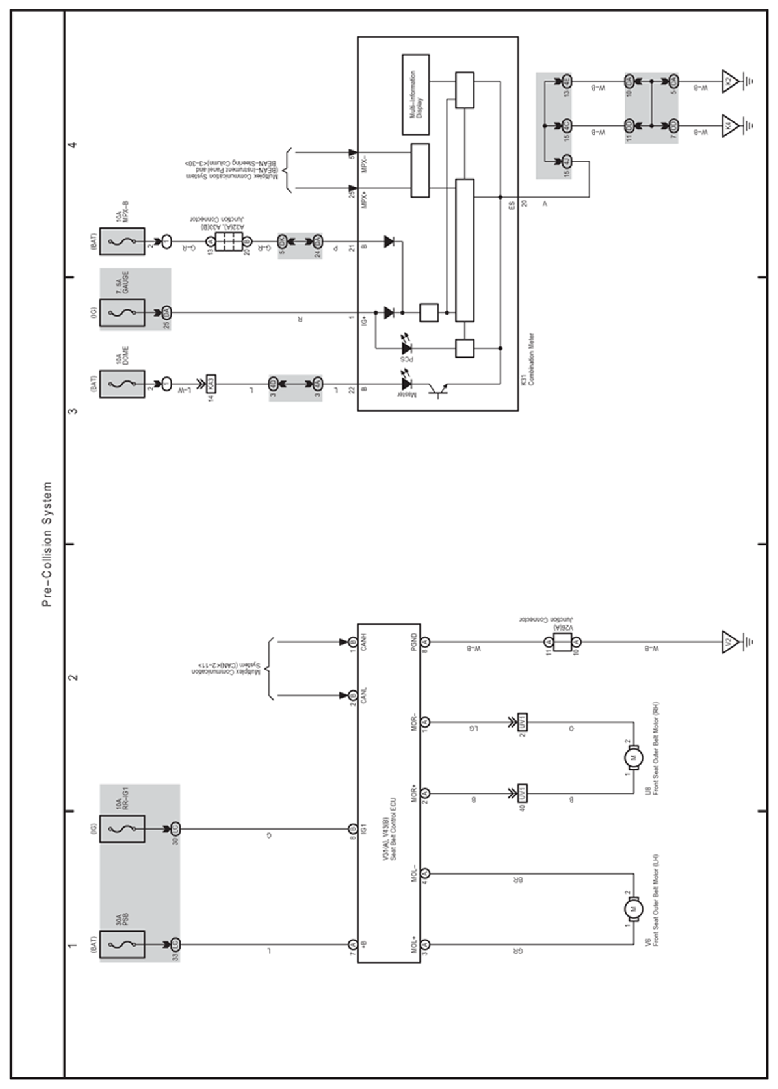

Fig 1: Pre-Collision System Electrical Wiring Diagram
