Lexus
>>
2008
>>
GS 350 RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Seat (Driver's Seat w/o Seat Position Memory)
Power Seat (Driver's Seat w/o Seat Position Memory)

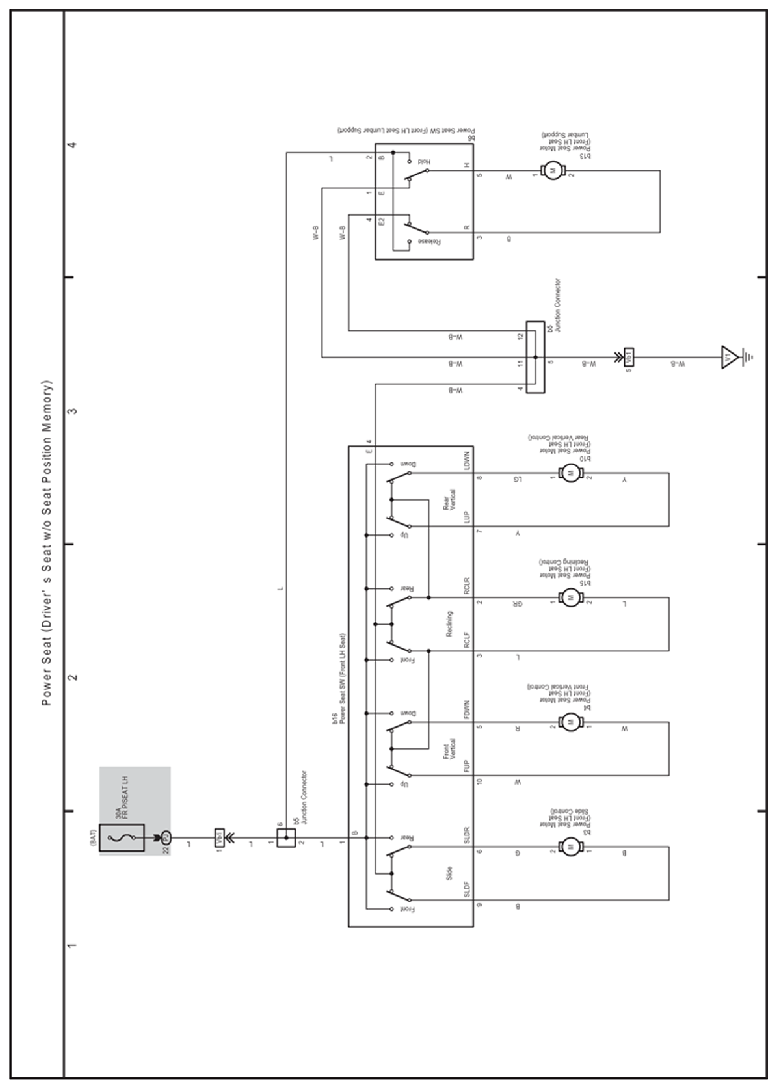

Fig 1: Power Seat (Driver's Seat W/O Seat Position Memory) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
