Multiplex Communication System (BEAN-Door)

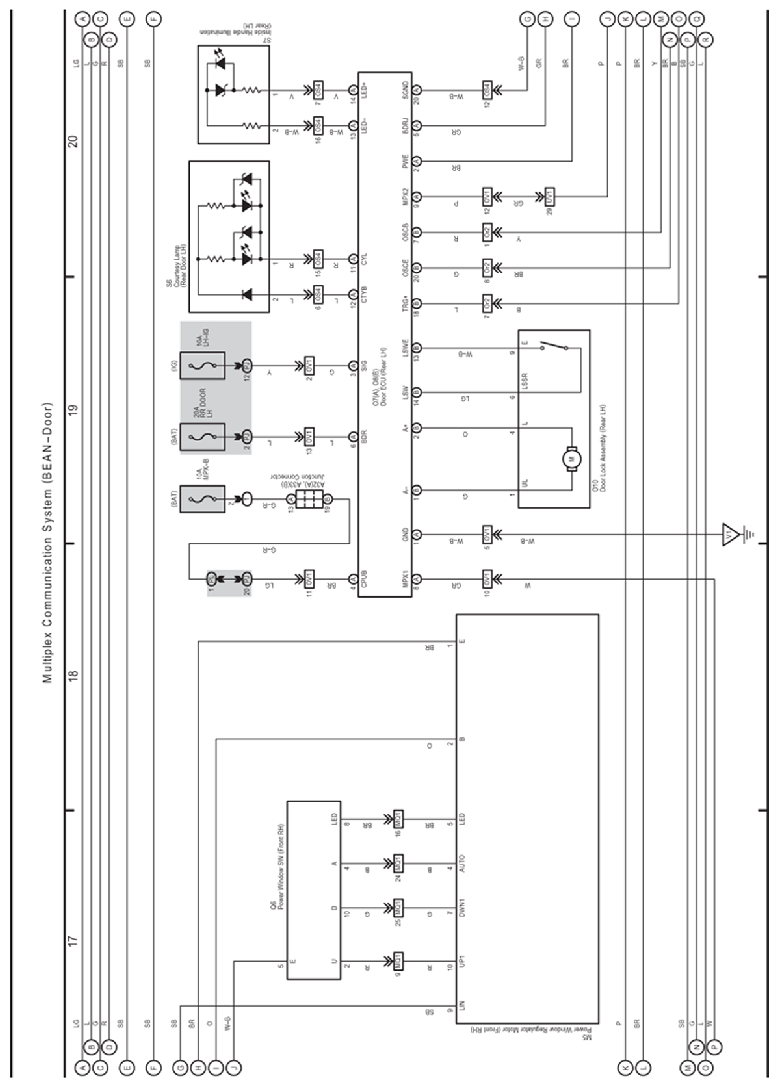

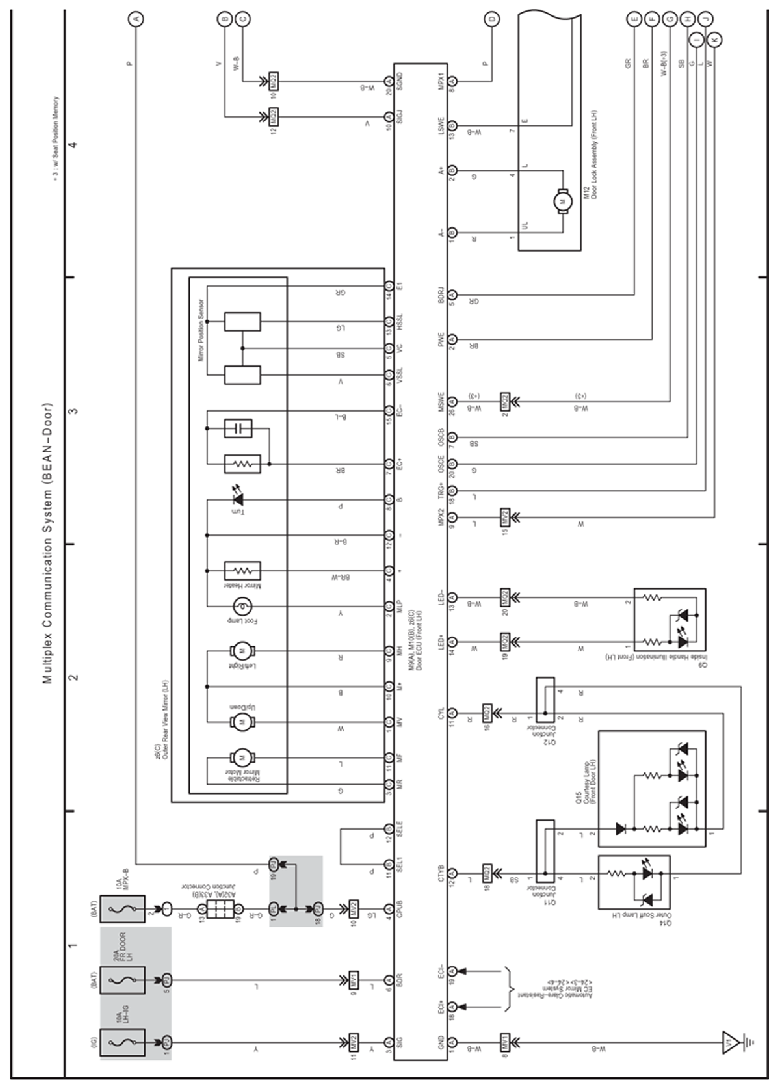

Fig 1: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

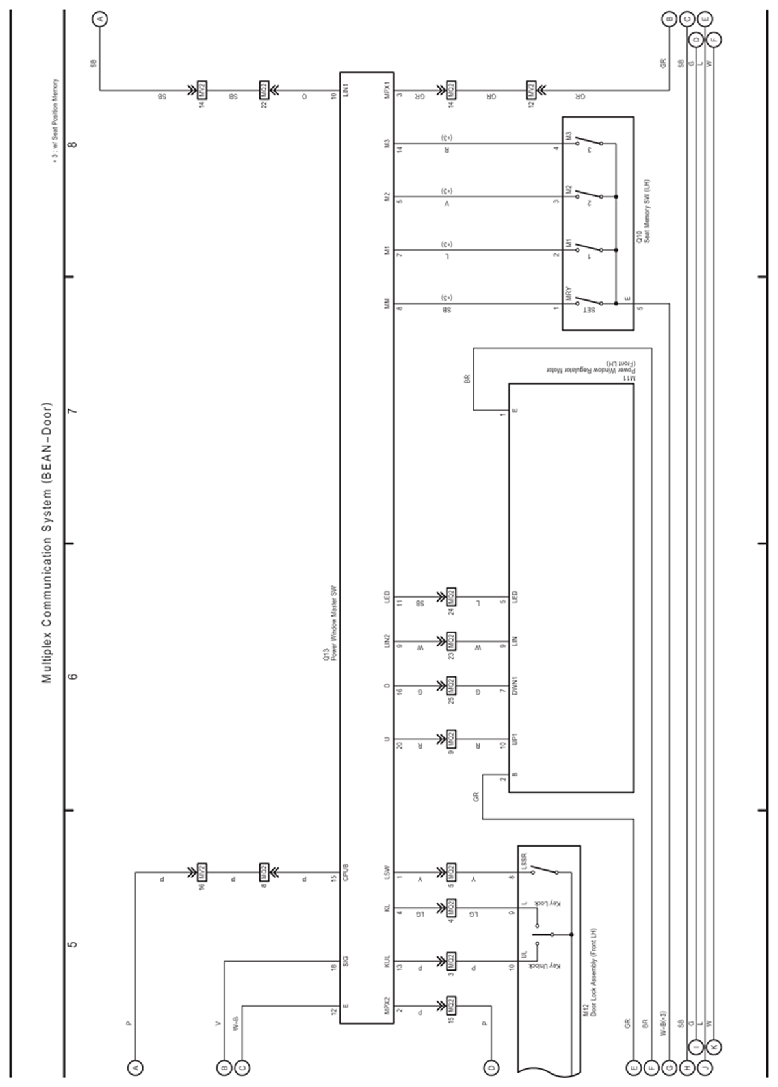

Fig 2: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

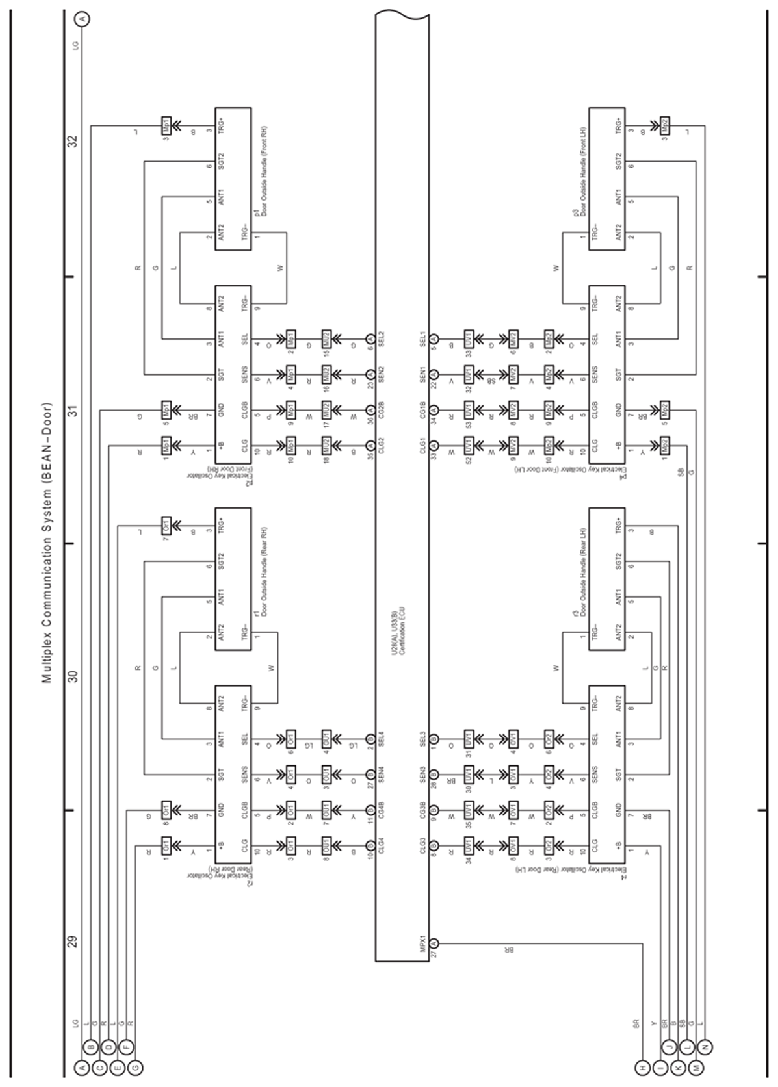

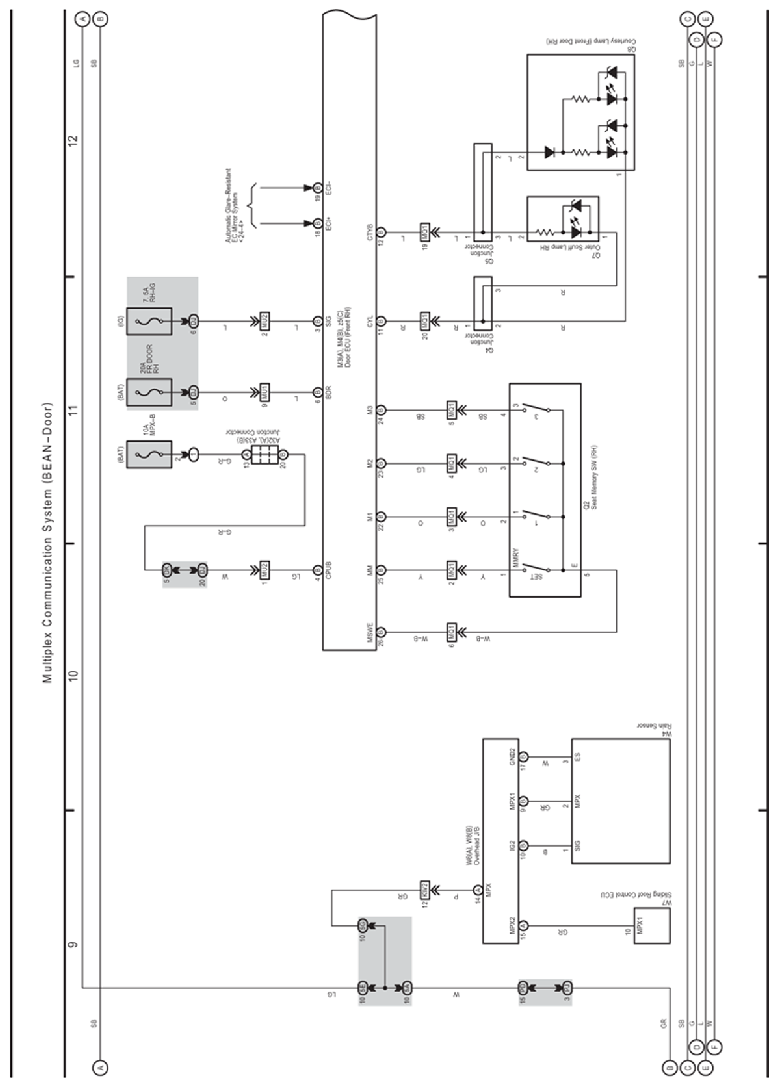

Fig 3: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

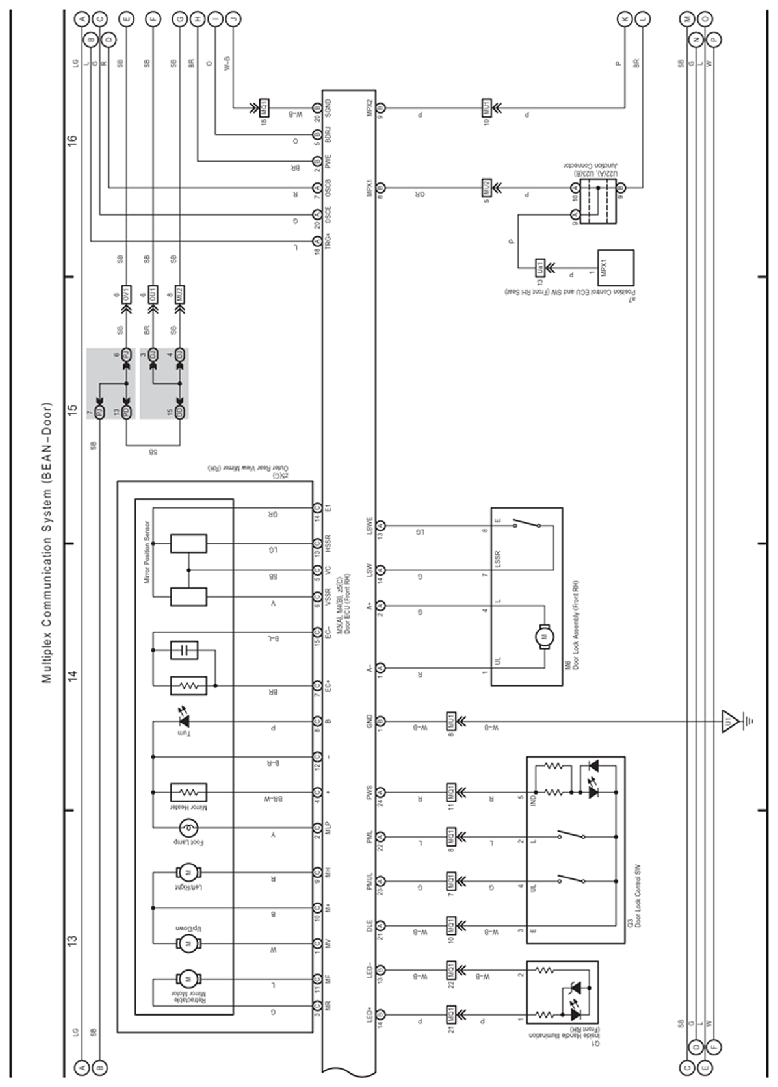

Fig 4: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

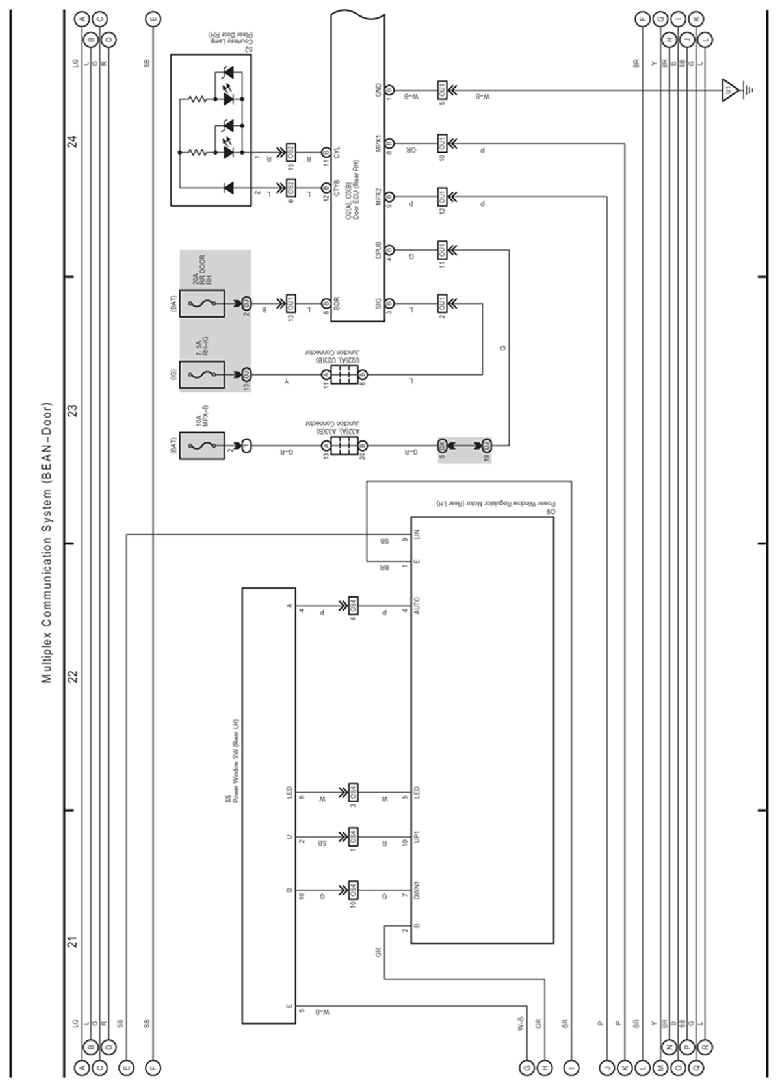

Fig 6: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

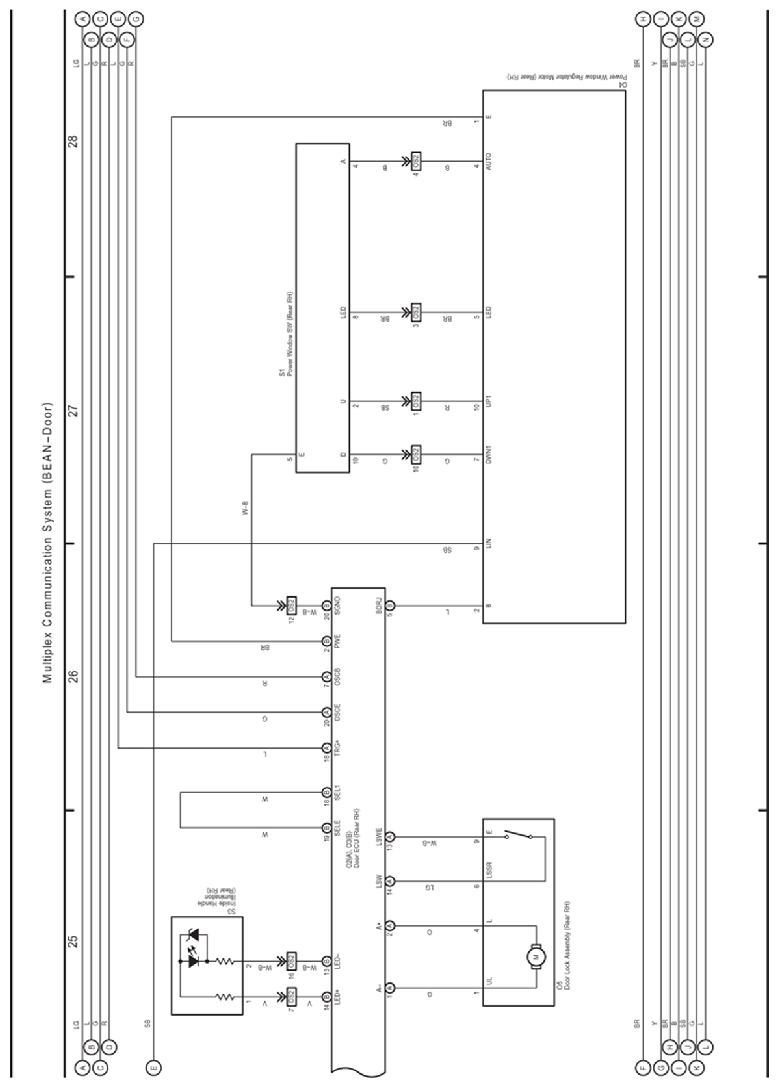

Fig 7: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (8 Of 11)

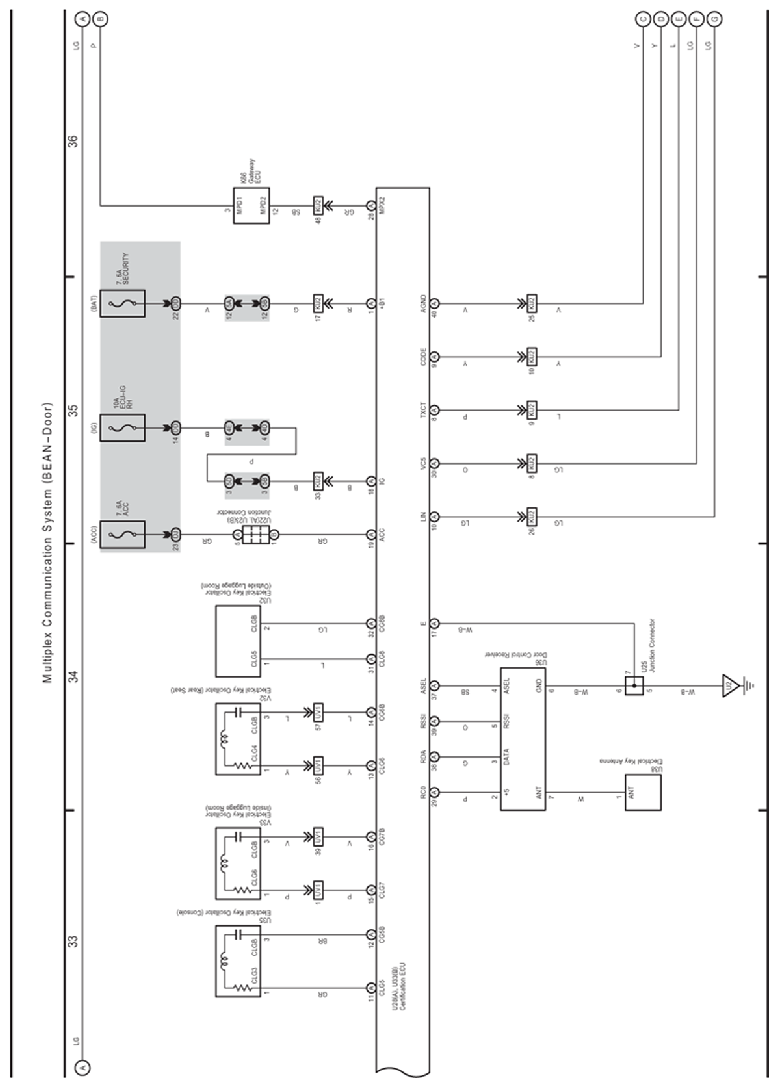

Fig 9: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (9 Of 11)

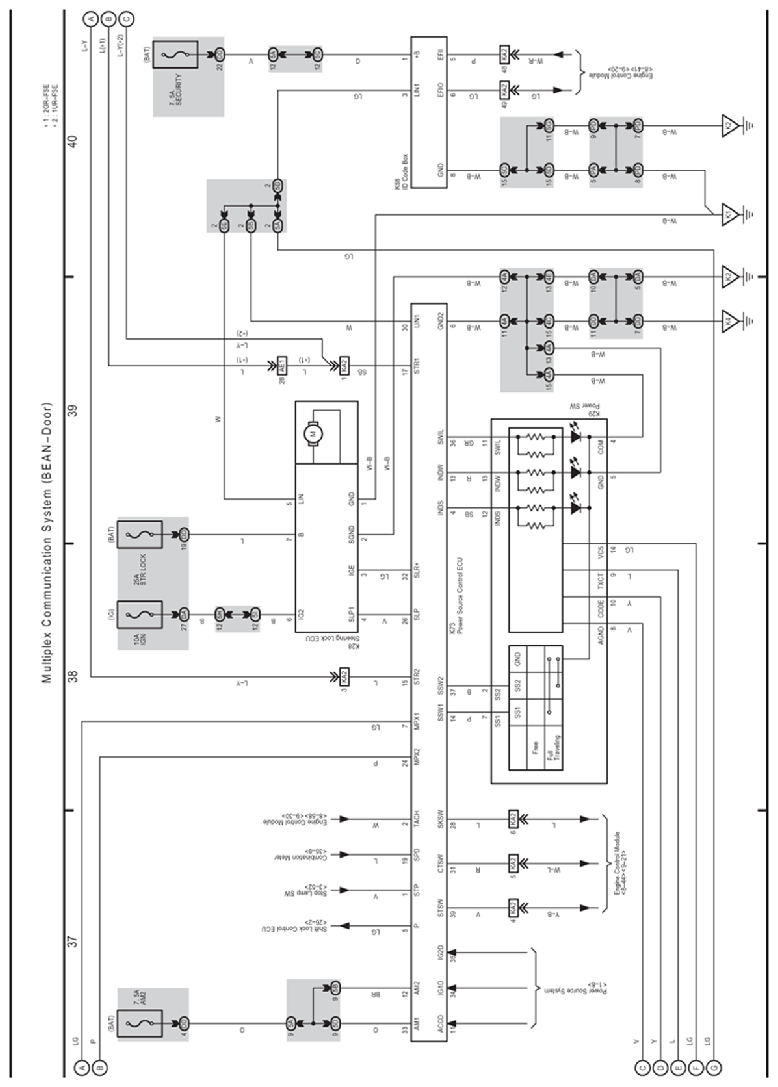

Fig 10: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (10 Of 11)

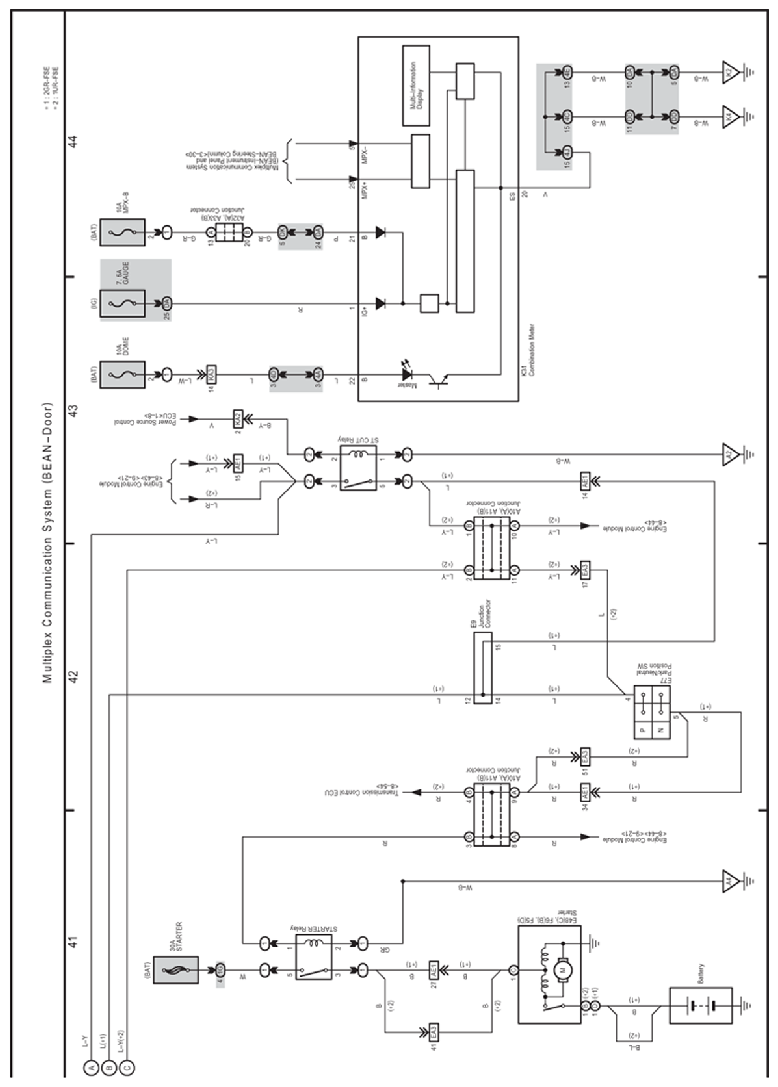

Fig 11: Multiplex Communication System (Bean-Door) Electrical Wiring Diagram (11 Of 11)
