Cruise Control (1UR-FSE), Dynamic Radar Cruse Control (1UR-FSE), Electronically Controlled Transmission and A/T Indicator (1UR-FSE), Engine Control (1UR-FSE)

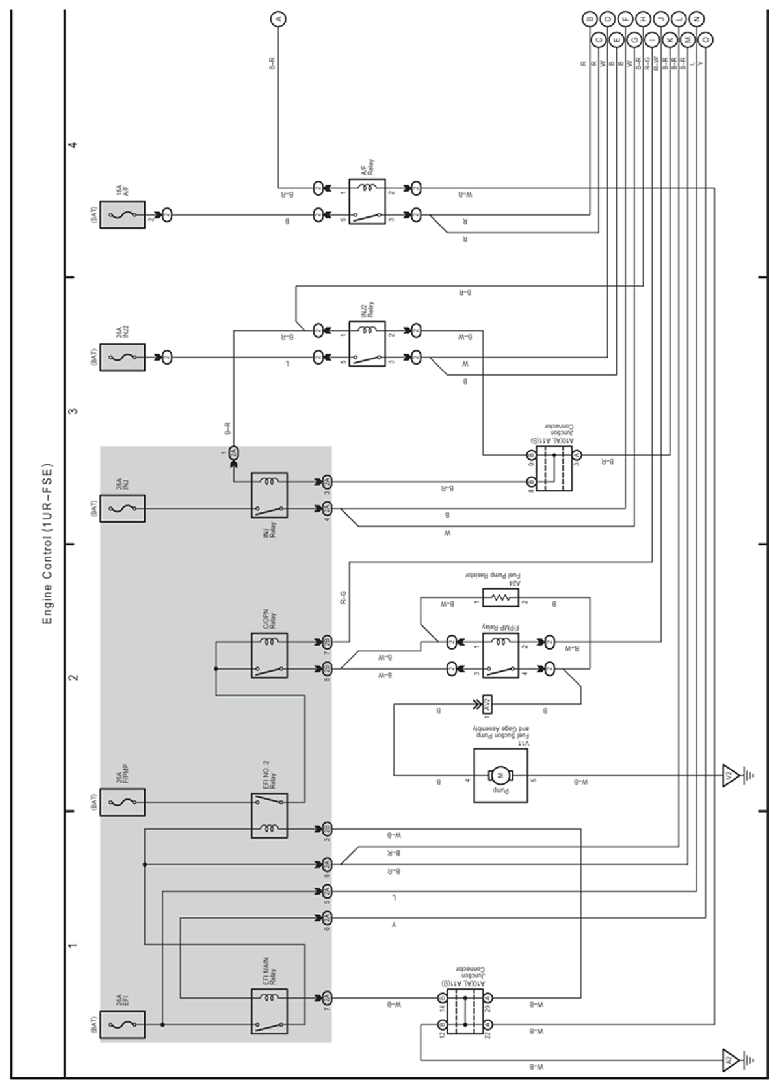

Fig 1: Engine Control (1UR-FSE) Electrical Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

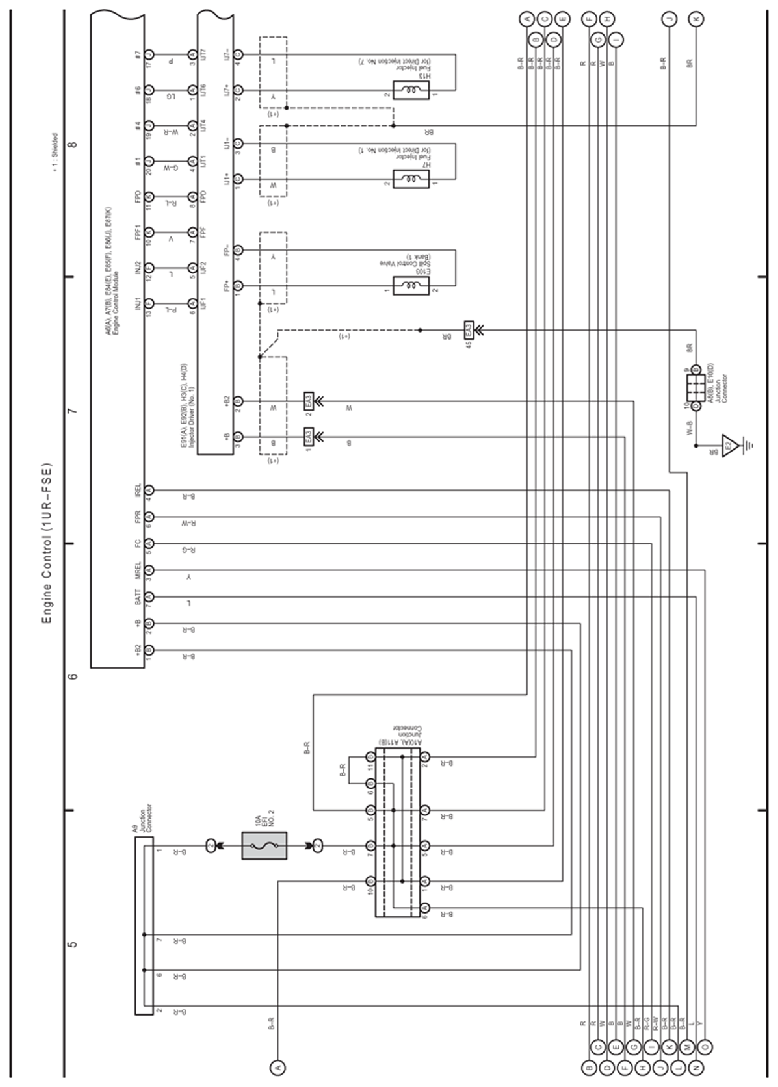

Fig 2: Engine Control (1UR-FSE) Electrical Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Control (1UR-FSE) Electrical Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

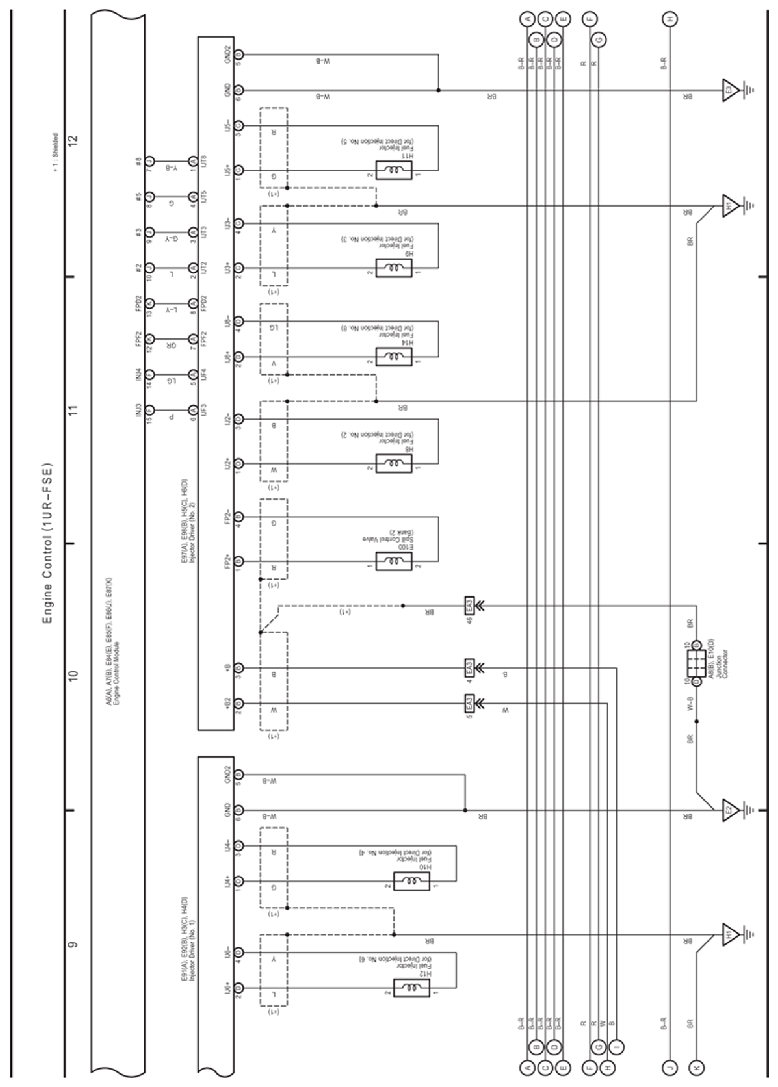

Fig 4: Engine Control (1UR-FSE) Electrical Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

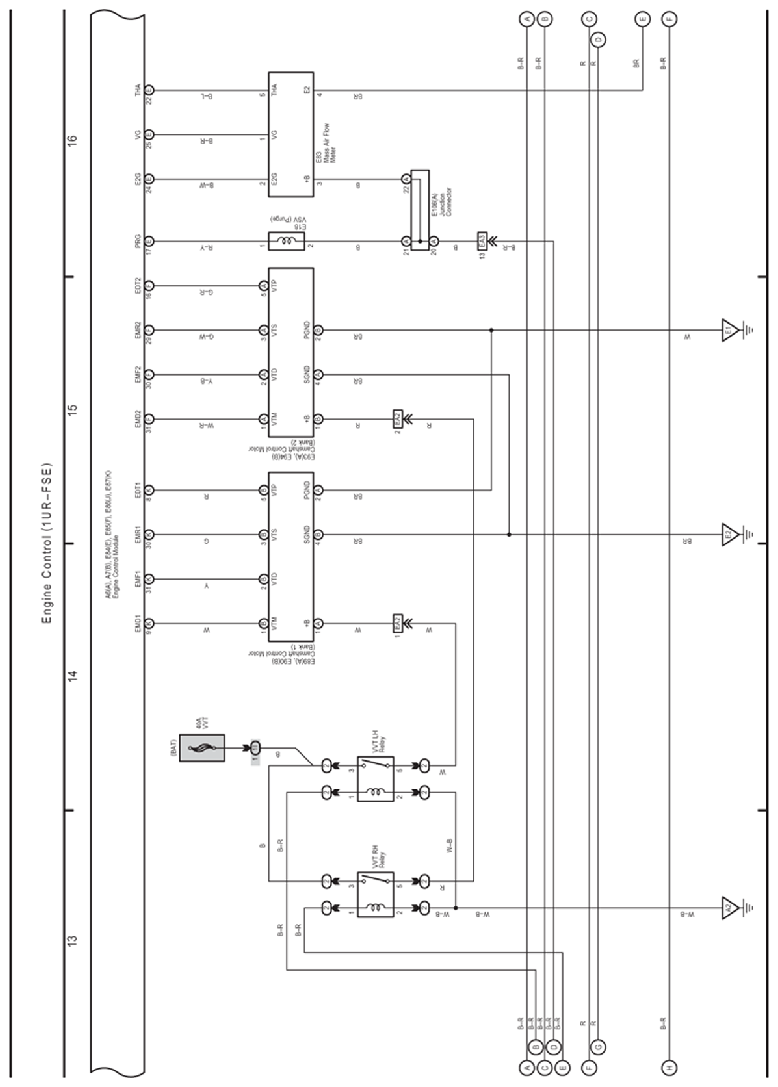

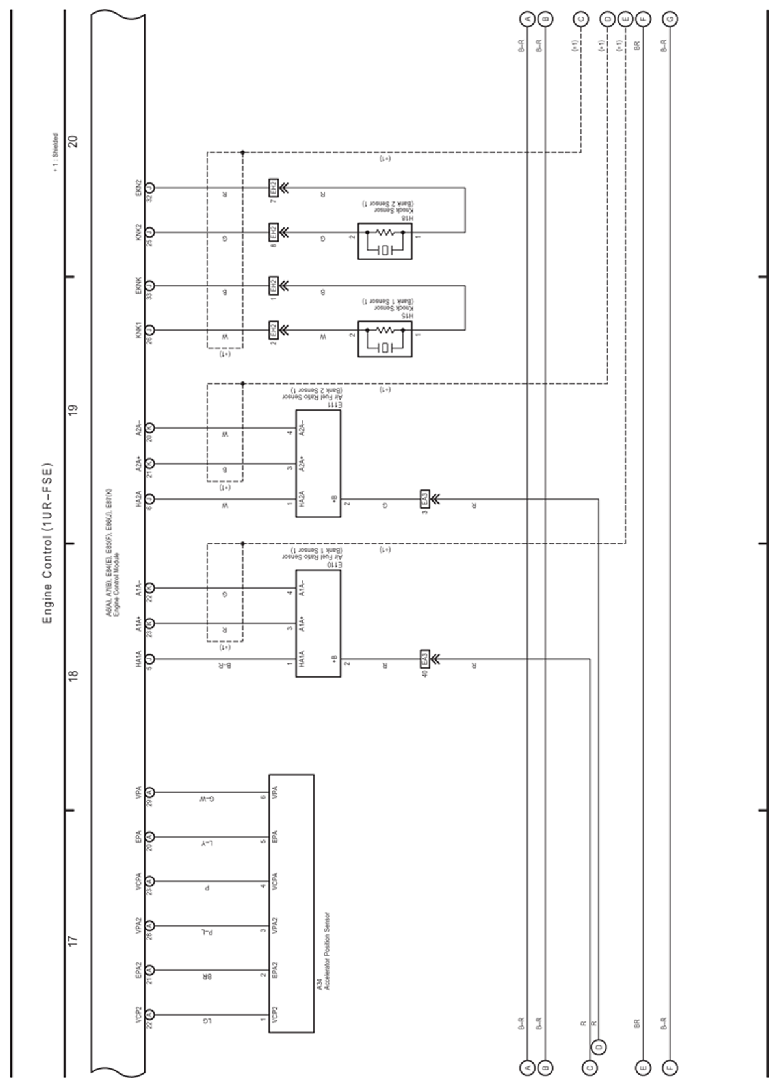

Fig 5: Engine Control (1UR-FSE) Electrical Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Control (1UR-FSE) Electrical Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

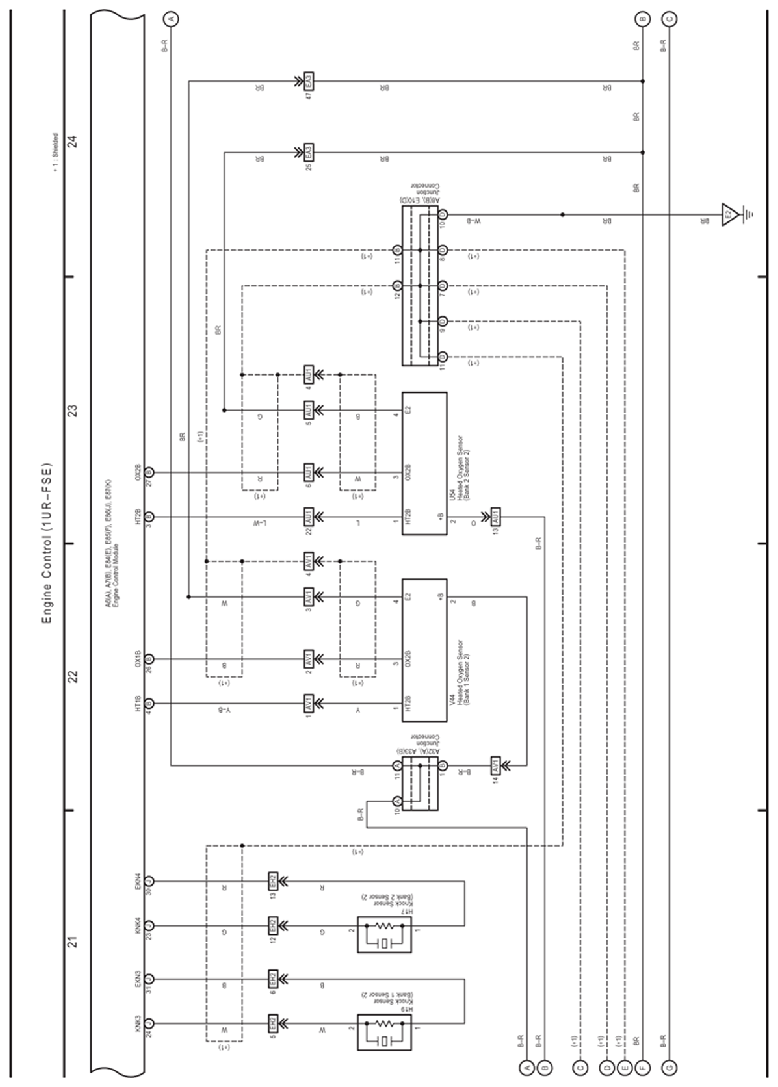

Fig 7: Engine Control (1UR-FSE) Electrical Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

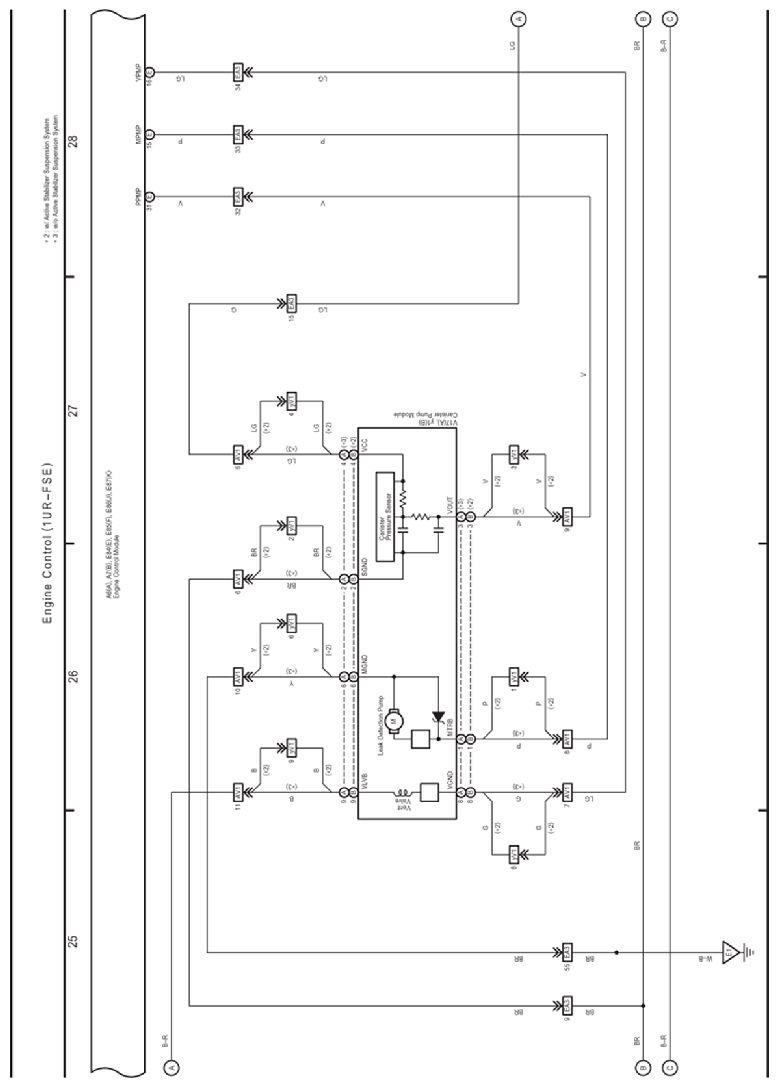

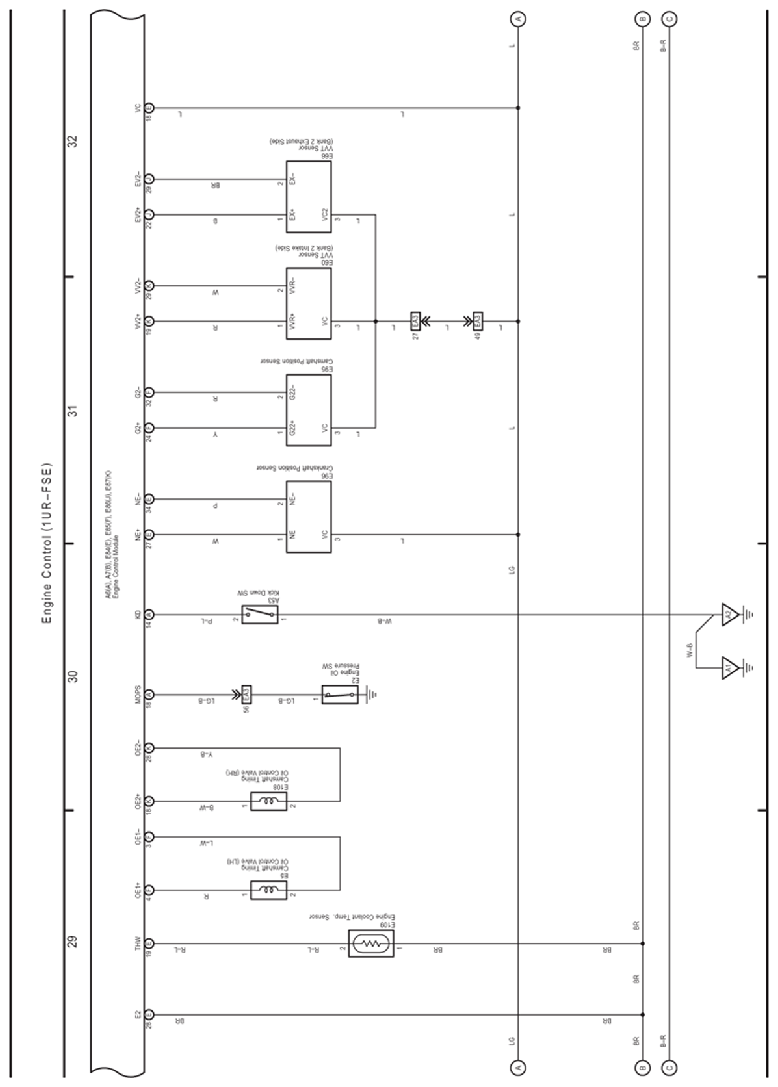

Fig 8: Engine Control (1UR-FSE) Electrical Wiring Diagram (8 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

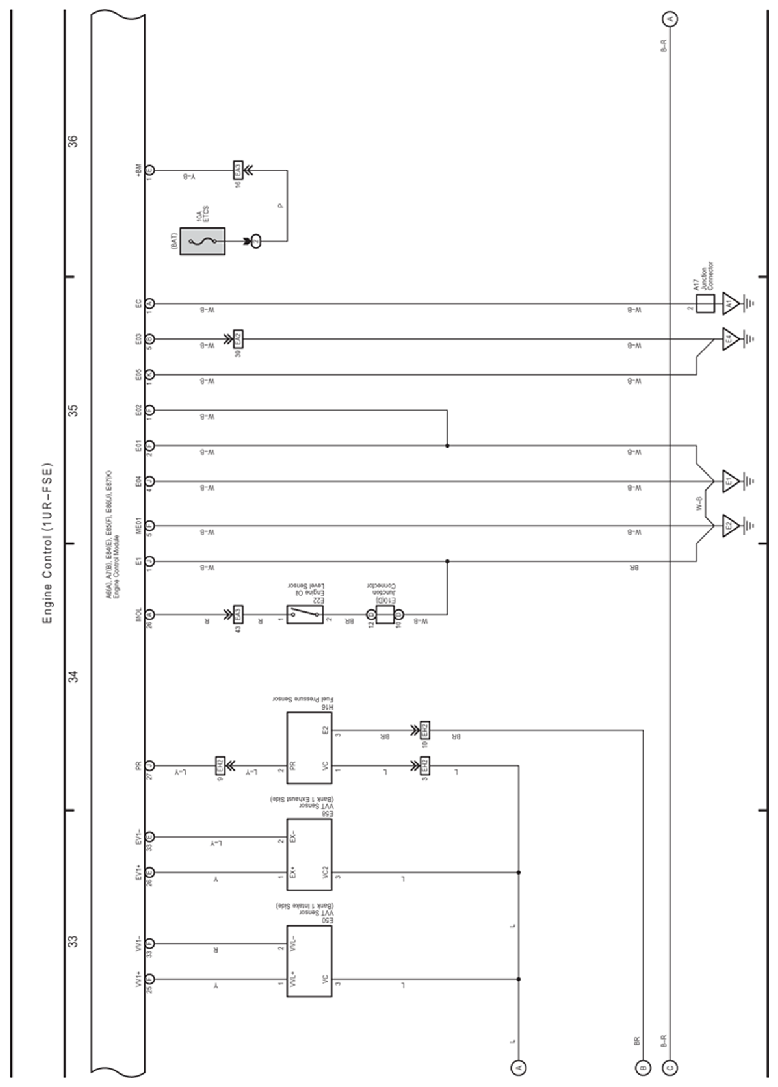

Fig 9: Engine Control (1UR-FSE) Electrical Wiring Diagram (9 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Control (1UR-FSE) Electrical Wiring Diagram (10 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

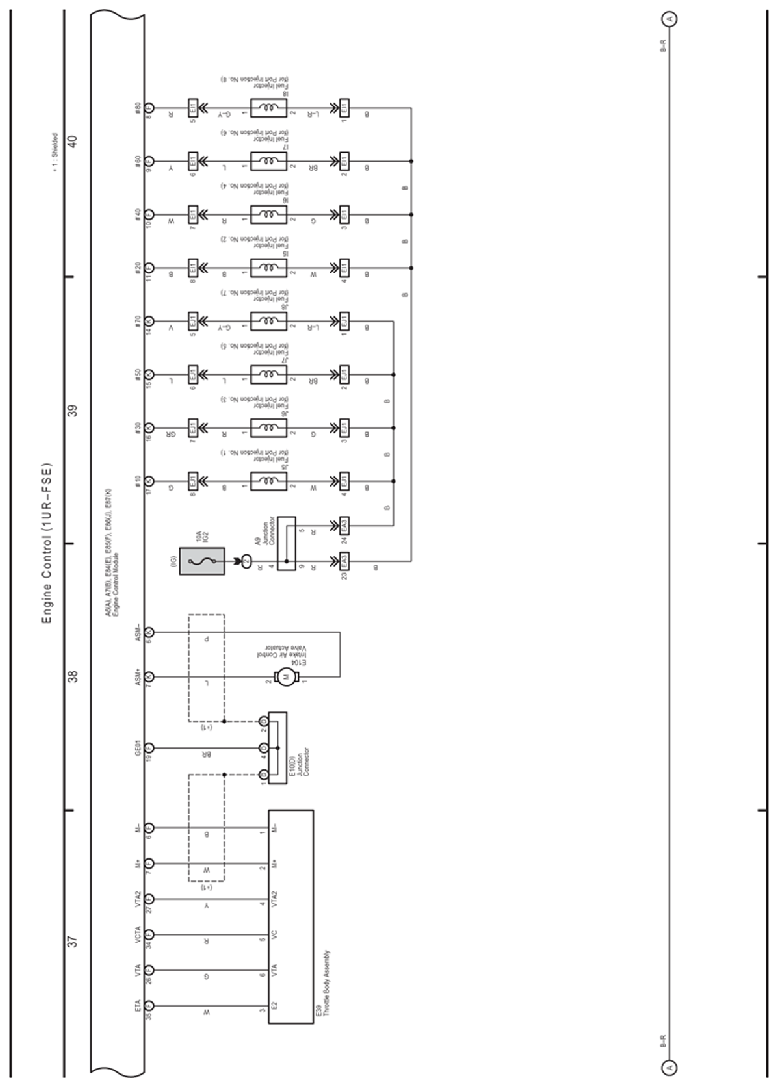

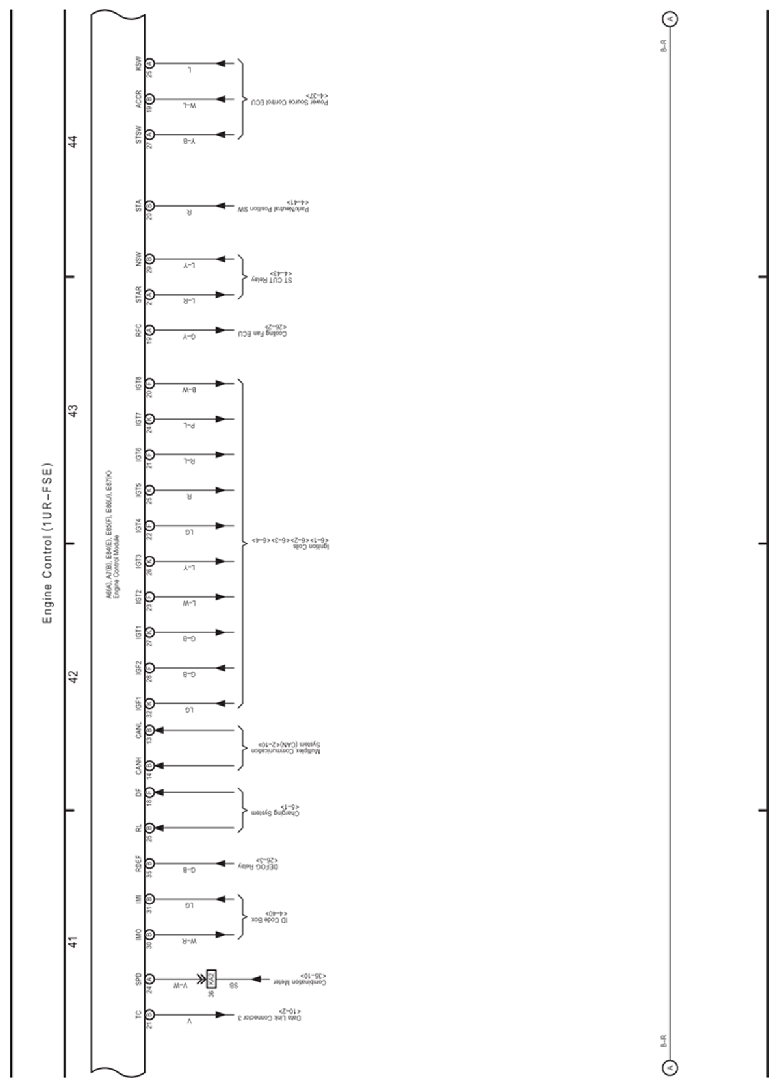

Fig 11: Engine Control (1UR-FSE) Electrical Wiring Diagram (11 Of 11)

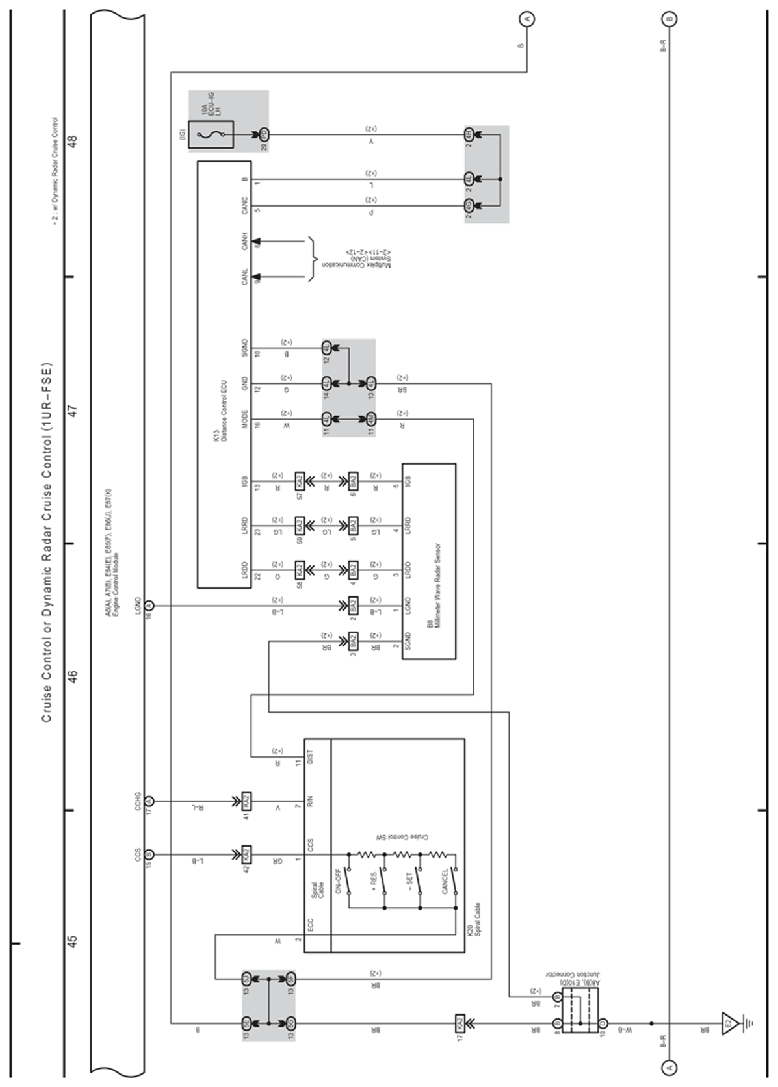

Fig 12: Cruise Control Or Dynamic Radar Cruise Control (1UR-FSE) Electrical Wiring Diagram

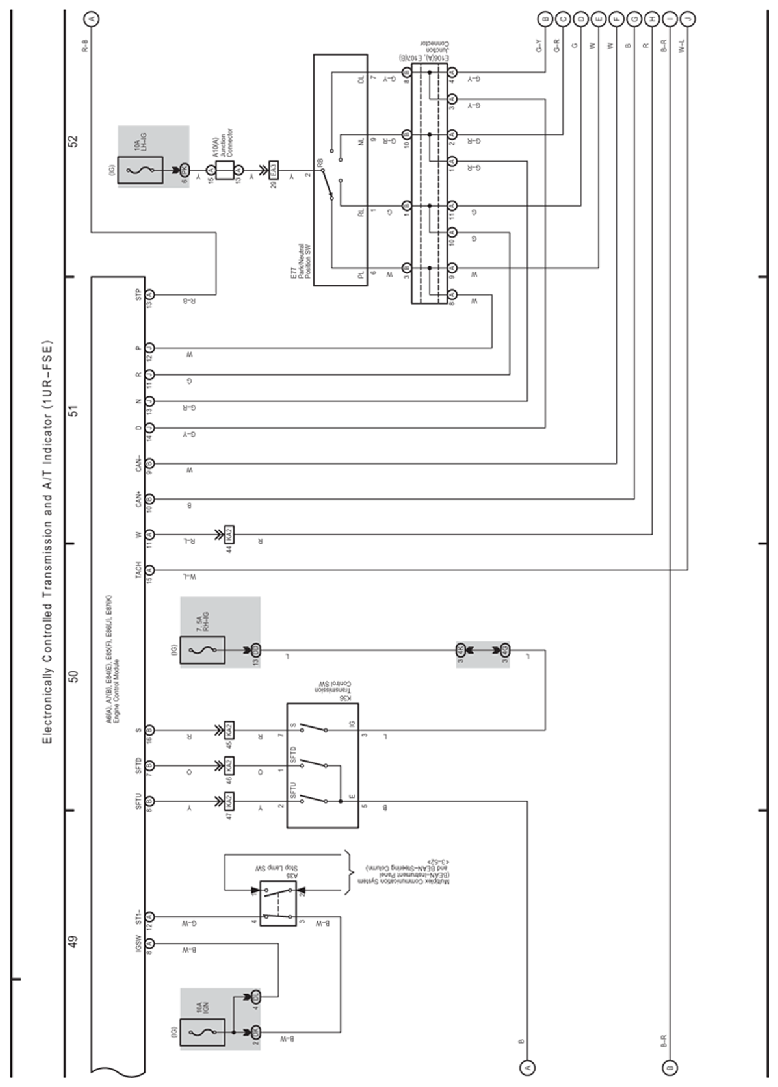

Fig 13: Electronically Controlled Transmission And A/T Indicator (1UR-FSE) Electrical Wiring Diagram (1 Of 3)

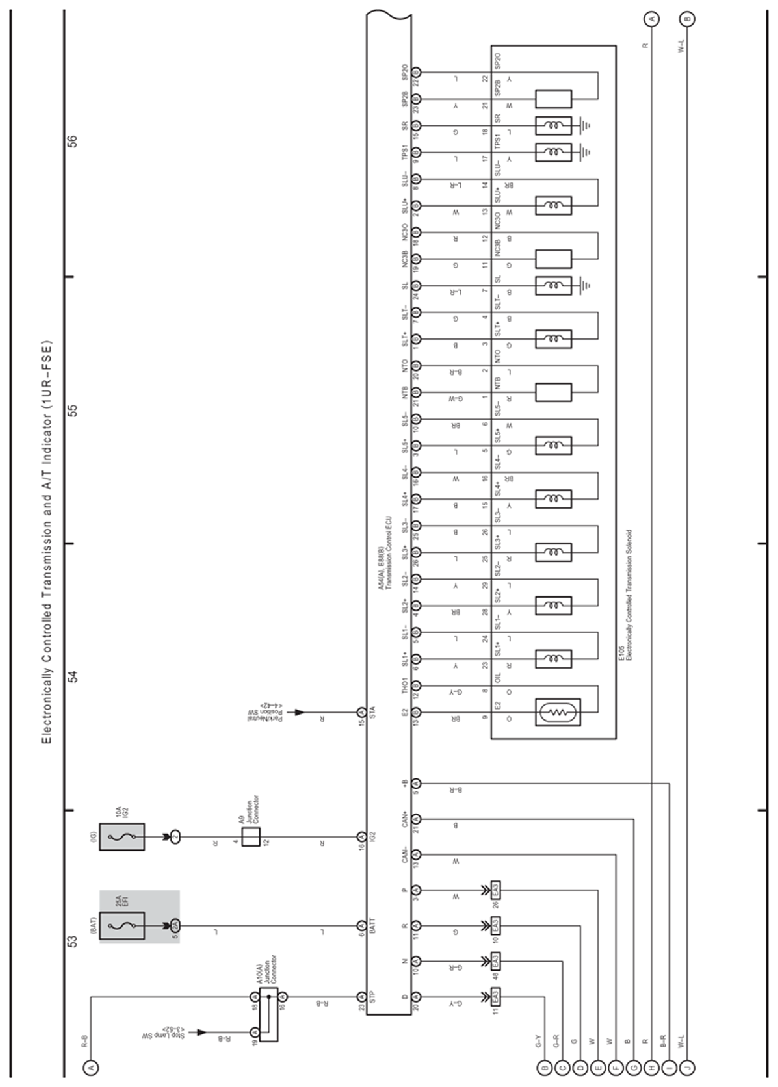

Fig 14: Electronically Controlled Transmission And A/T Indicator (1UR-FSE) Electrical Wiring Diagram (2 Of 3)

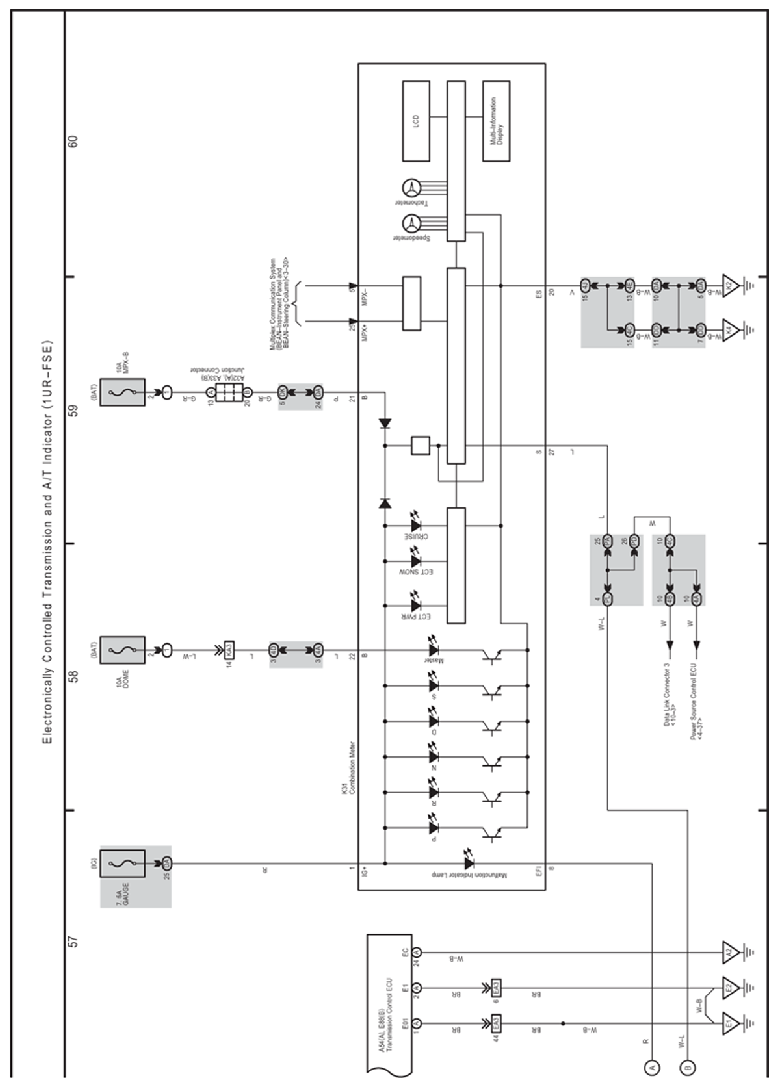

Fig 15: Electronically Controlled Transmission And A/T Indicator (1UR-FSE) Electrical Wiring Diagram (3 Of 3)
