Cooling Fan, Rear Window Defogger, Shift Lock

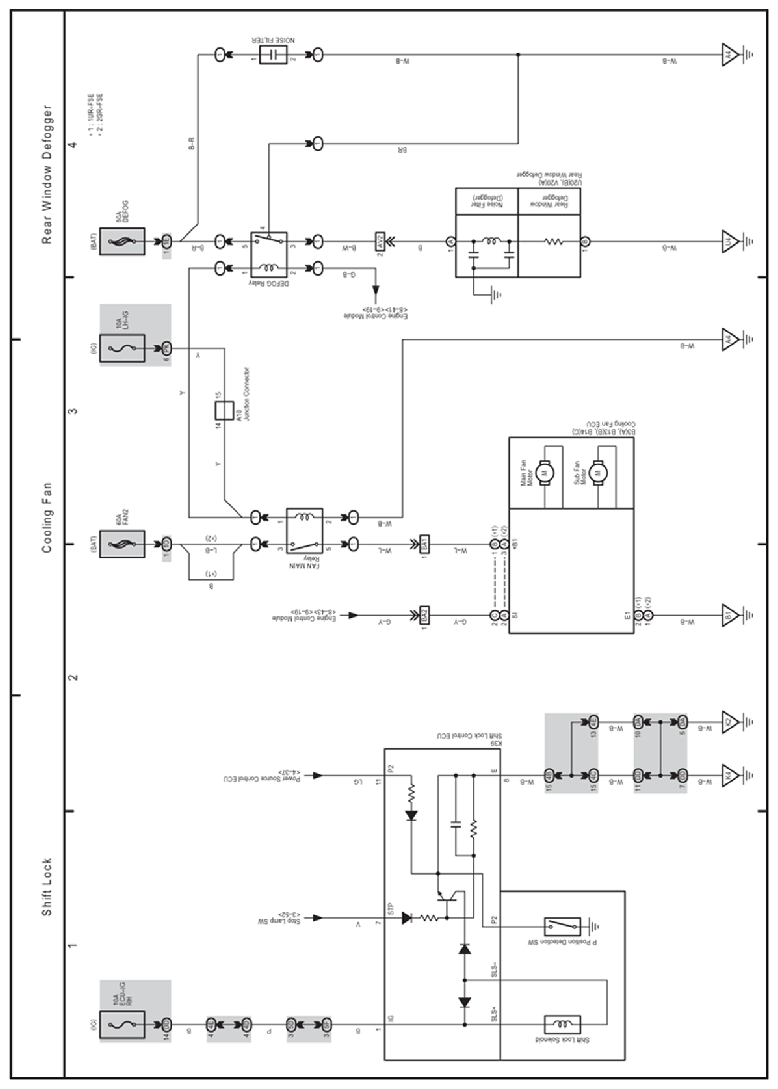

Fig 1: Cooling Fan Electrical Wiring Diagram

G07613228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
