Overall Electrical Wiring Diagram
>>
Automatic Glare-Resistant EC Mirror, Garage Door Opener
Automatic Glare-Resistant EC Mirror, Garage Door Opener

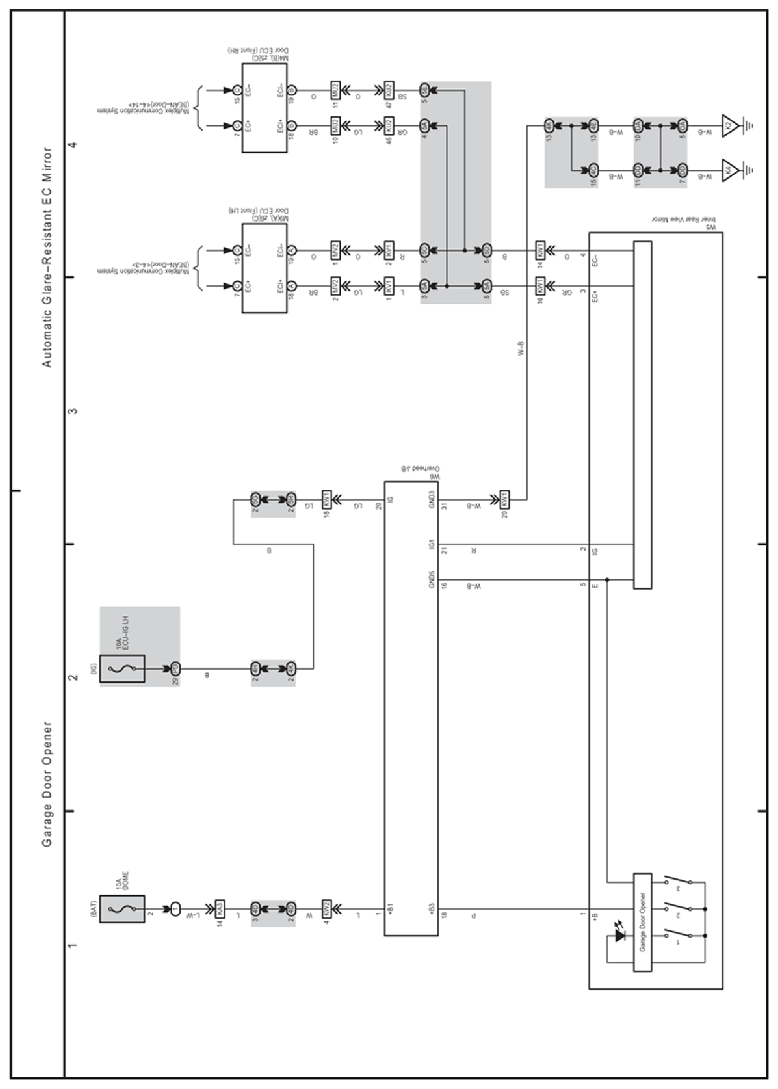

Fig 1: Automatic Glare-Resistant EC Mirror Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
