Adaptive Front-Lighting System

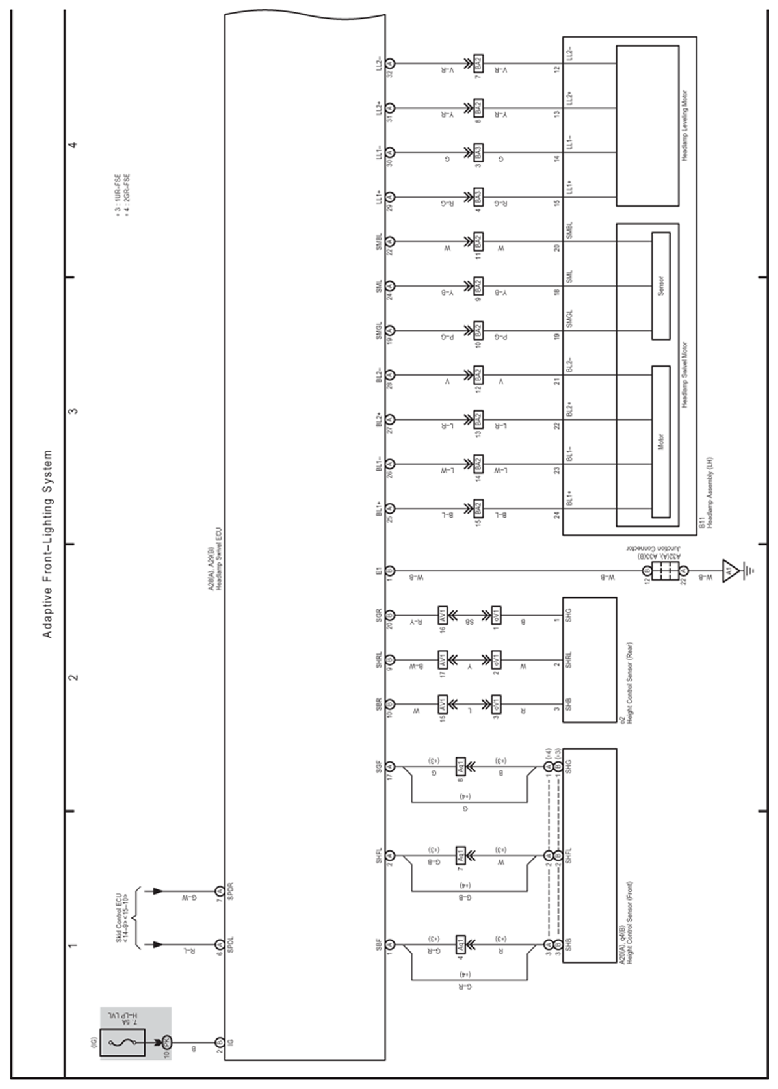

Fig 1: Adaptive Front-Lighting System Electrical Wiring Diagram (1 Of 3)
G07613220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

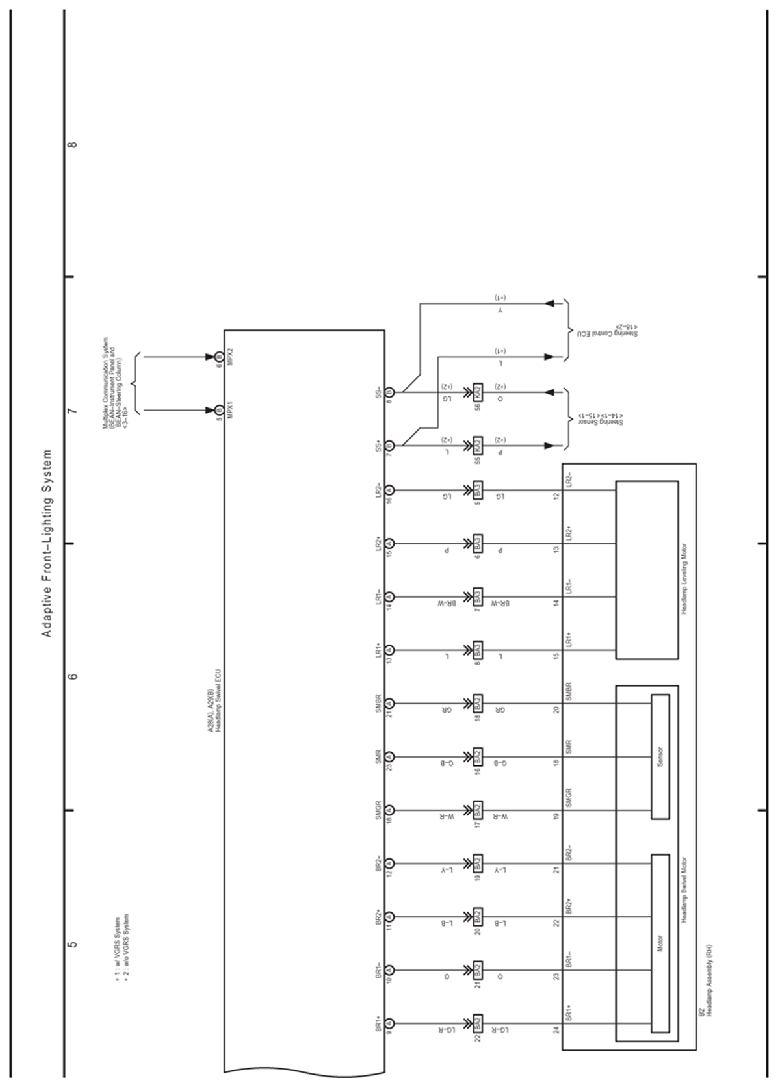

Fig 2: Adaptive Front-Lighting System Electrical Wiring Diagram (2 Of 3)
G07613221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

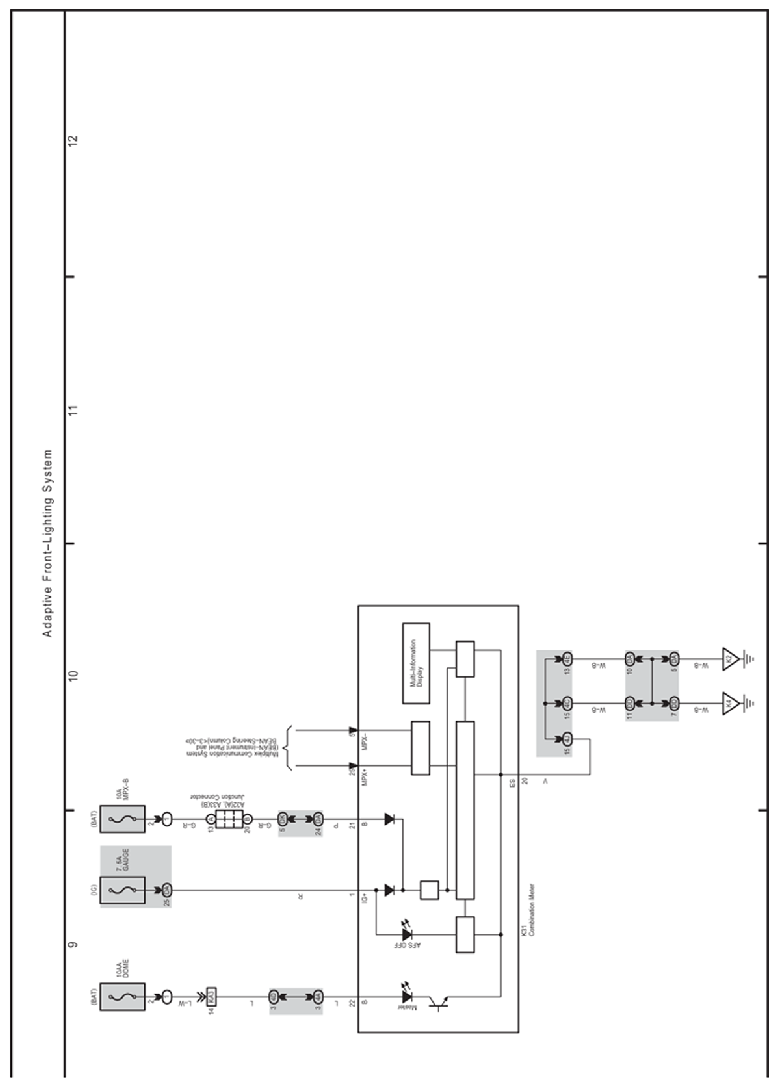

Fig 3: Adaptive Front-Lighting System Electrical Wiring Diagram (3 Of 3)
G07613222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
