Active Stabilizer Suspension System

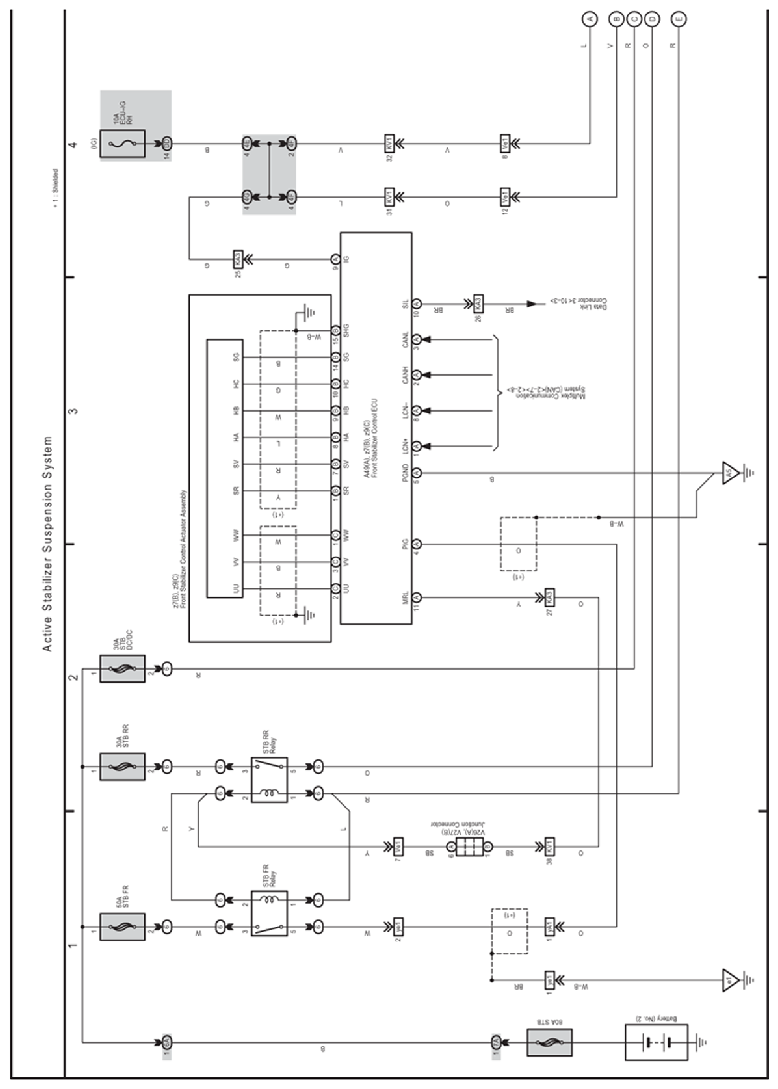

Fig 1: Active Stabilizer Suspension System Electrical Wiring Diagram (1 Of 2)
G07613248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

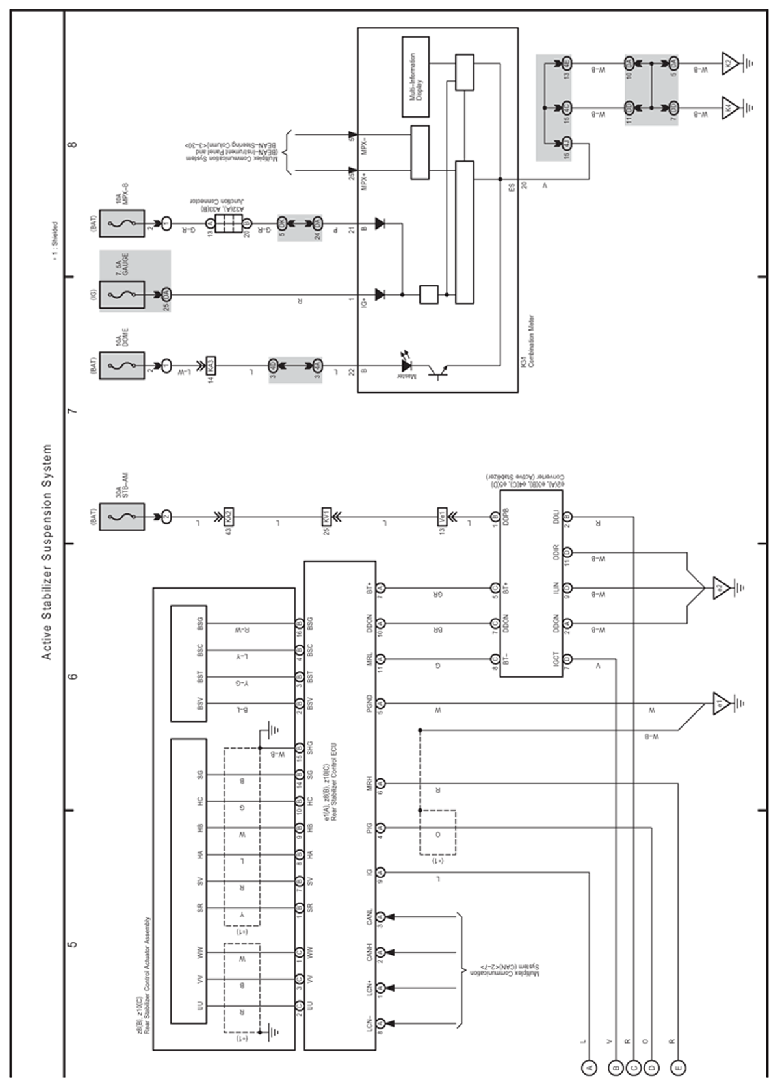

Fig 2: Active Stabilizer Suspension System Electrical Wiring Diagram (2 Of 2)
G07613249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
