Cluster Glass does not Become Tinted: Wiring Diagram

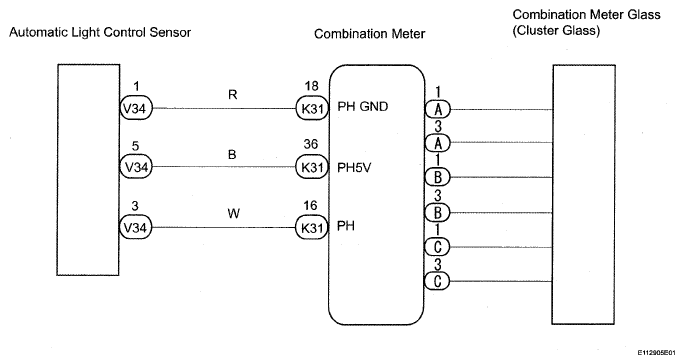

Fig 1: Cluster Glass Does Not Become Tinted - Wiring Diagram

G05299364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
