Instrument Panel Speaker: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY
   1. Connect the connector.
   2. Temporarily install the speaker by aligning the positioning pins of the speaker to the instrument panel.
   3. Install the speaker with the 2 bolts.

      HINT:

      Do not touch the cone part of the speaker.

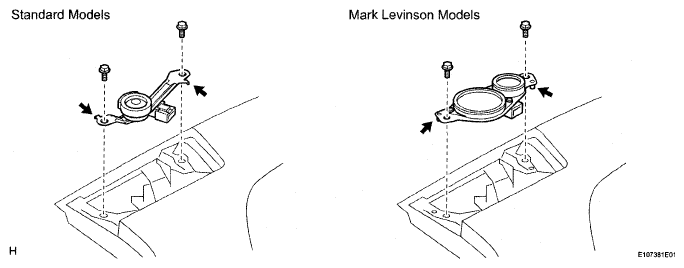

      Fig 1: Locating Front Stereo Component Speaker Assembly Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL SPEAKER HOLE COVER
   1. Attach the 4 clips to install the hole cover.
3. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
   1. Connect the connector.
      Fig 2: Locating Speaker Hole Cover Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Temporarily install the speaker by aligning the positioning pins of the speaker to the instrument panel.
      Fig 3: Locating Positioning Pins Of Speaker

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the speaker with the 2 bolts.

      HINT:

      Do not touch the cone part of the speaker.

4. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
   1. Attach the 2 clips and 2 claws to install the panel.
      Fig 4: Identifying No. 2 Instrument Panel Speaker Panel Sub-Assembly Clips And Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
