Monitor Description

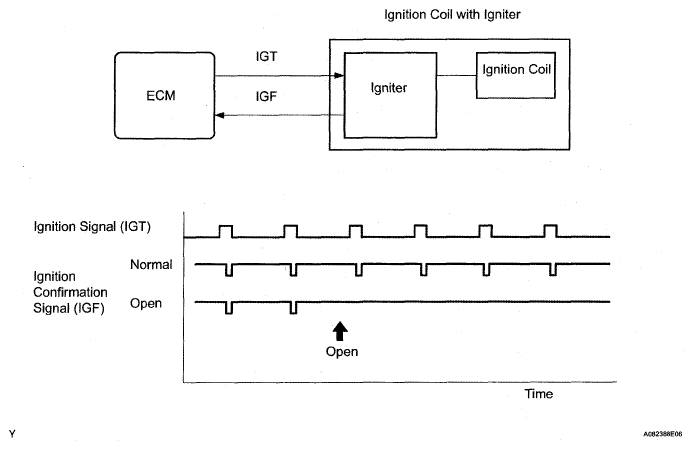

Fig 1: Ignition Coil Communication Diagram
G05291420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the ECM does not receive an IGF after sending an IGT, it interprets this as a fault in the igniter and sets a DTC. The monitor runs for 1 second (the first second of engine idle) after the engine is started.
