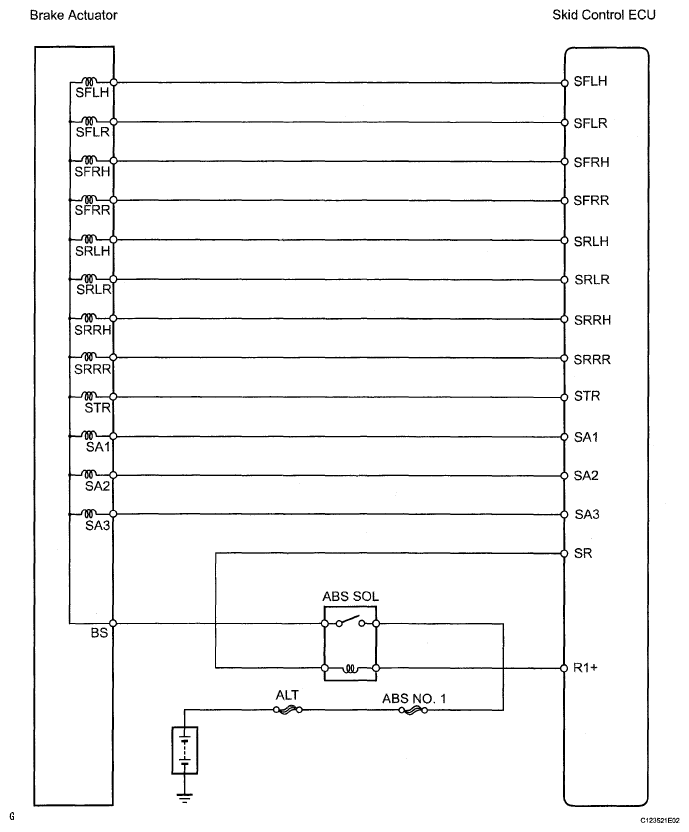

DTC C0226/21 SFR Solenoid Circuit; DTC C0236/22 SFL Solenoid Circuit; DTC C0246/23 SRR Solenoid Circuit; DTC C0256/24 SRL Solenoid Circuit; DTC C1225/25 SMC Solenoid Circuit; DTC C1226/26 SPC Solenoid Circuit; DTC C1227/27 SRC Solenoid Circuit; DTC C1228/28 STR Solenoid Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
