DTC C1252/52 Brake Booster Pump Motor on Time Abnormally Long; DTC C1253/53 Hydro Booster Pump Motor Relay Malfunction: Wiring Diagram

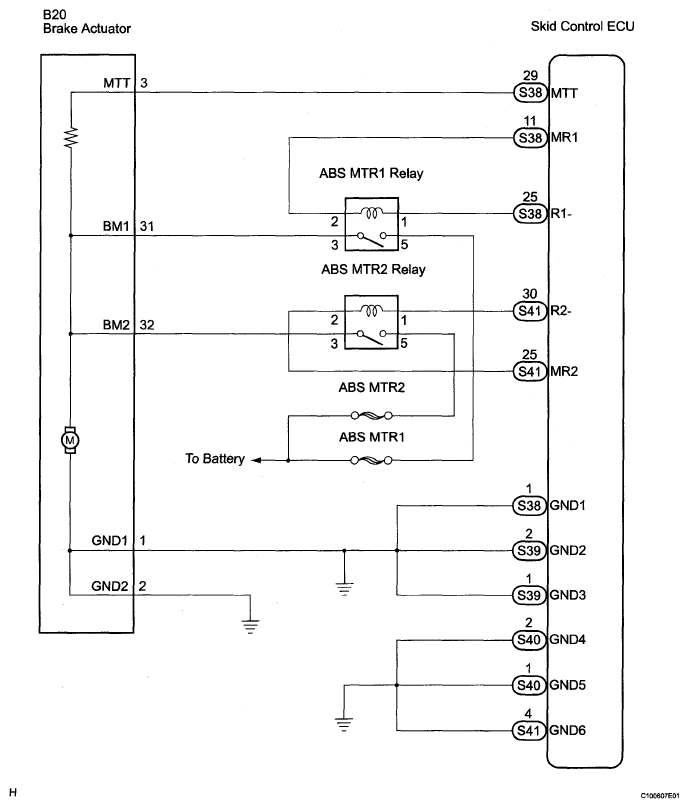

Fig 1: Hydro Booster Pump Motor Relay Malfunction - Wiring Diagram
G05276881Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
