DTC U0110-159 Lost Communication with Driver Motor Control Module; DTC U0110-656 Lost Communication with Driver Motor Control Module; DTC U0110-657 Lost Communication with Driver Motor Control Module: Wiring Diagram

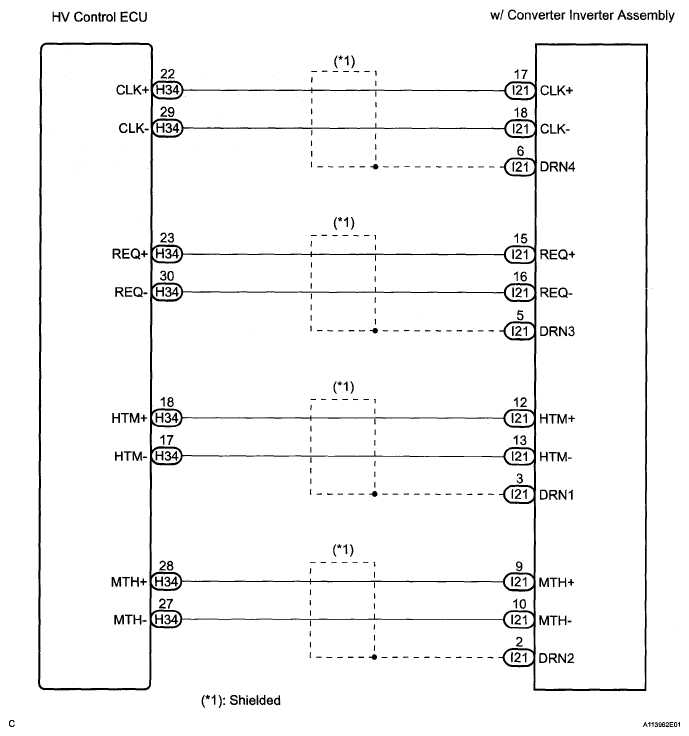

Fig 1: Lost Communication With Driver Motor Control Module - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
