DTC P0AE6-225 Hybrid Battery Positive Contactor Circuit Stuck Open; DTC P0AE7-224 Hybrid Battery Positive Contactor Circuit Stuck Closed: Wiring Diagram

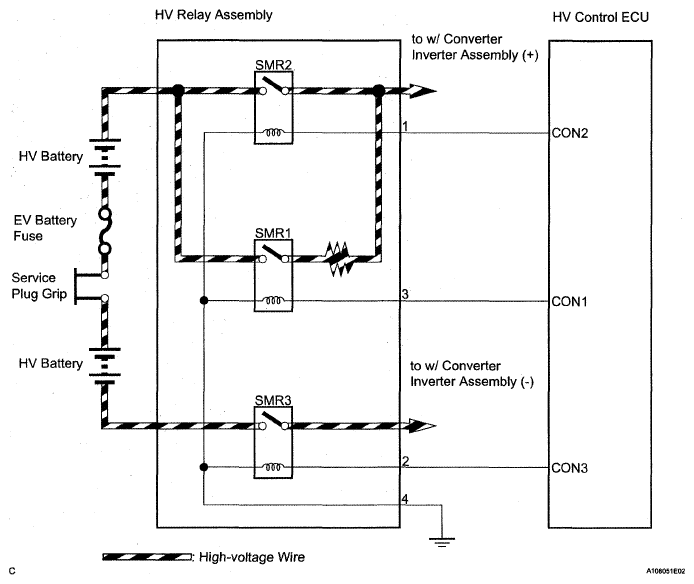

Fig 1: Hybrid Battery Positive Contactor Wiring Diagram
G05201624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
