DTC P0343-747 Camshaft Position Sensor "A" Circuit High Input: Wiring Diagram

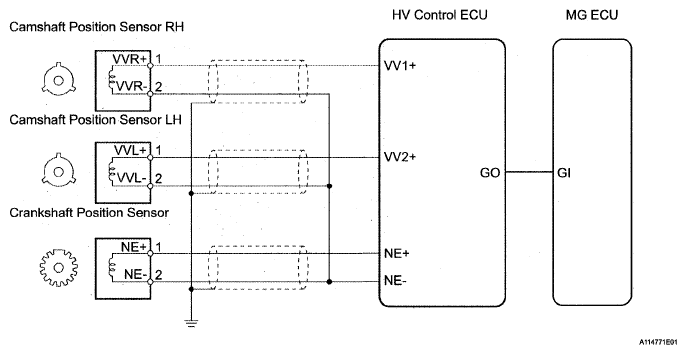

Fig 1: Camshaft Position Sensor - Wiring Diagram

G05201212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
