Radio Receiver: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL )
REMOVE CONSOLE PANEL UPPER FRONT (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See REMOVAL )
REMOVE RADIO RECEIVER
1. Remove the 4 bolts.

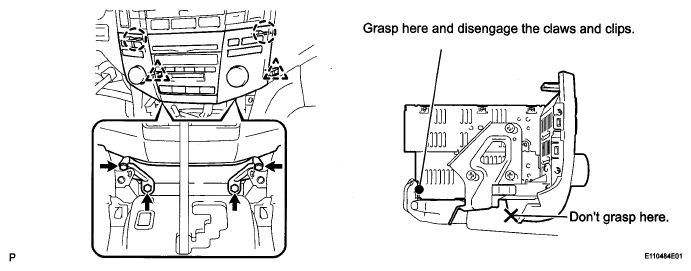

  Fig 1: Locating Radio Receiver Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and the 2 clips.
3. Disconnect the connectors.
4. Remove the radio receiver with bracket.
5. Remove the 3 screws and the No.1 radio bracket.

  Fig 2: Locating No.1 Radio Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 3 screws and the No.2 radio bracket.
Fig 3: Locating No.2 Radio Bracket Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
