Brake Pedal: Components

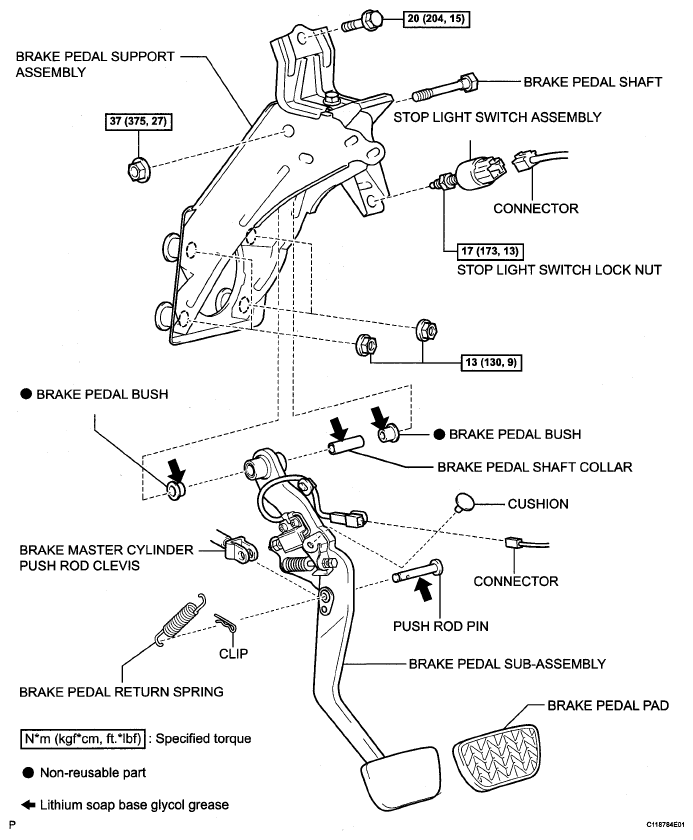

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications

G05272828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
