Drive Belt: Removal

  1. REMOVE DRIVE BELT
    1. Loosen the belt tension by turning the belt tensioner counterclockwise, and then remove the drive belt.

      HINT:

      The pulley bolt for the belt tensioner has a left-hand thread.

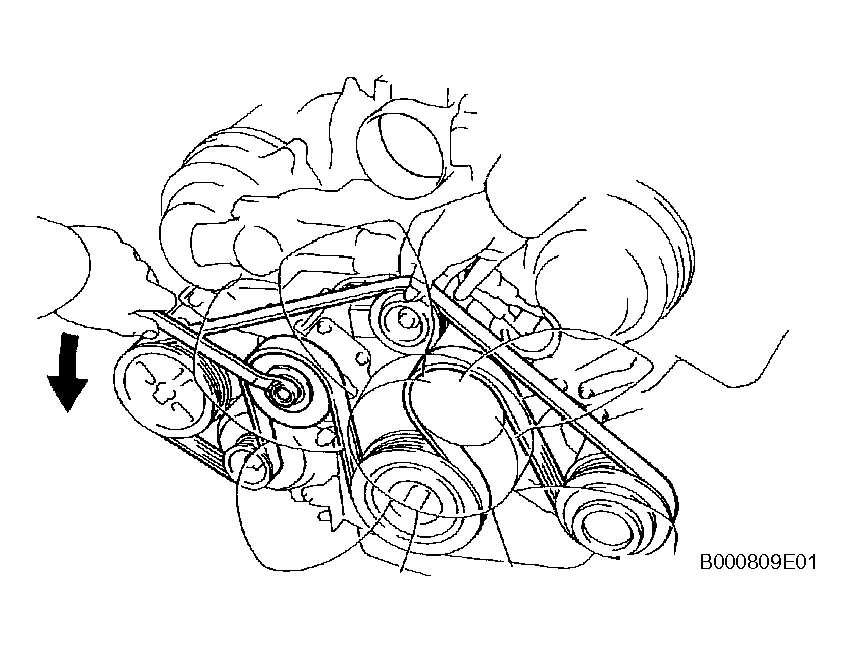

      Fig 1: Identifying Drive Belt
      G04061707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
