On-Vehicle Inspection

HINT:

As the belt tensioner coordinates belt tension automatically, you do not need to adjust it by yourself.

1. Check that the indicator mark on the automatic tensioner is within the A range as shown in the illustration.
2. When the mark is out of the standard range, replace the V belt with a new one.

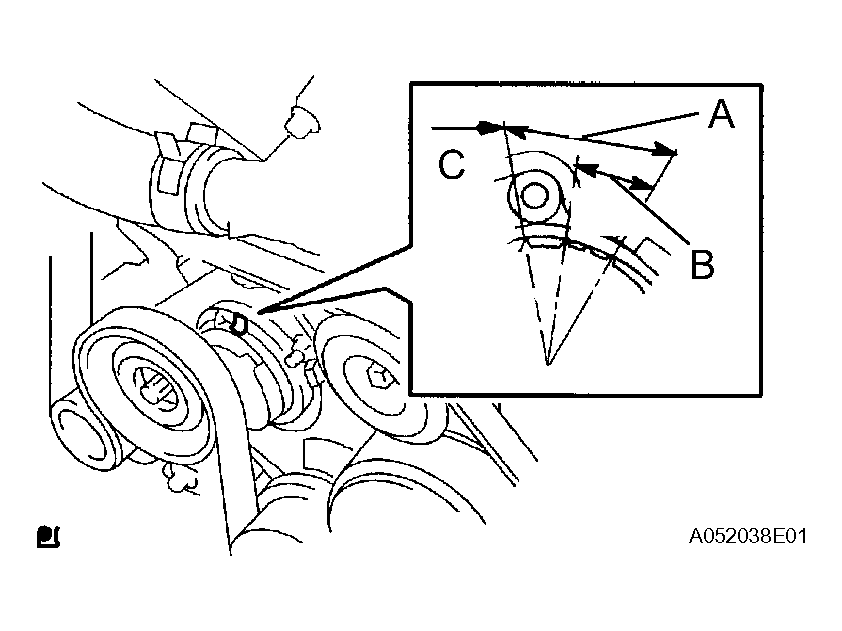

Fig 1: Checking Indicator Mark On Automatic Tensioner Is Within A Range

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
