Exhaust Pipe: Removal

REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
1. Disconnect the sensor connector.

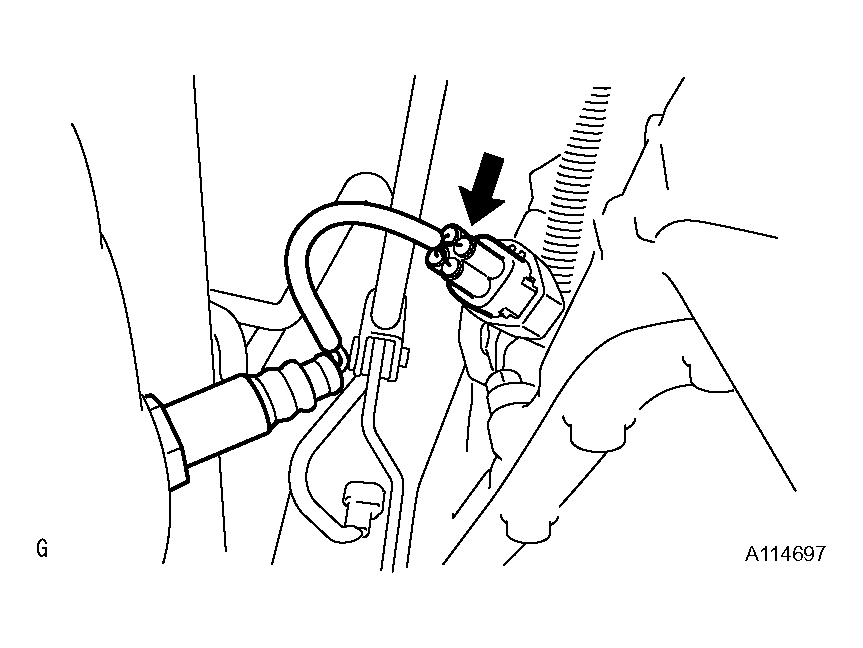

  Fig 1: Identifying Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the sensor.

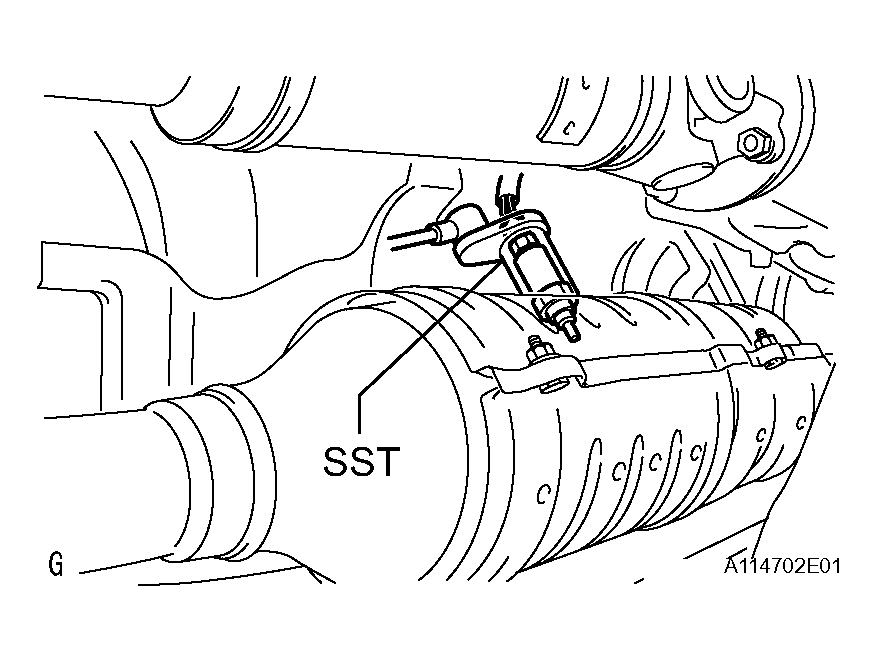

Fig 2: Removing Sensor Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09224-00010
REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
1. Disconnect the sensor connector.

  Fig 3: Identifying Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the sensor.
SST 09224-00010

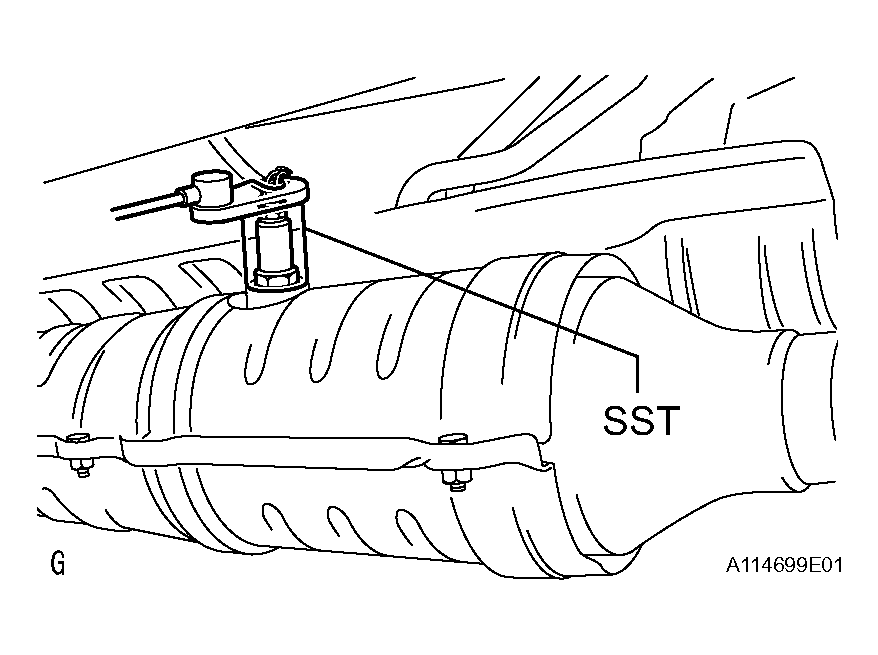

Fig 4: Removing Sensor Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TAILPIPE
1. Remove the clamp, 2 rings and gasket.
2. Disconnect the tailpipe from the center exhaust
Fig 5: Disconnecting Tailpipe From Center Exhaust
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER EXHAUST PIPE
1. Remove the 4 bolts, 4 nuts, 3 rings and exhaust pipe.
2. Remove the 2 gaskets.
REMOVE FRONT NO. 2 EXHAUST PIPE
1. Remove the 2 bolts, 2 nuts and gasket.
2. Remove the ring and front No. 2 exhaust pipe from the front exhaust pipe LH.

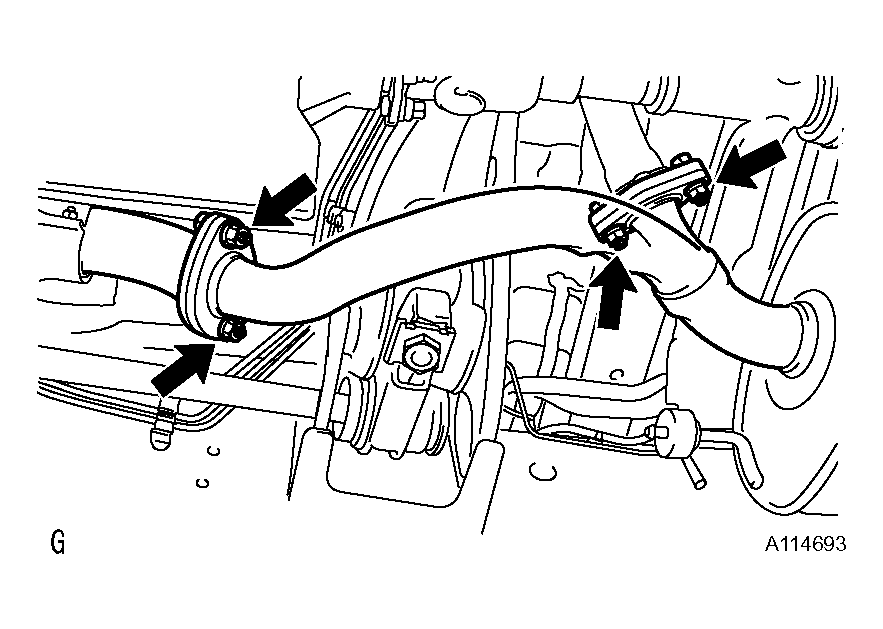

Fig 6: Identifying Bolts, Nuts And Gasket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT EXHAUST PIPE RH
1. Remove the 3 nuts, gasket and front exhaust pipe from the exhaust manifold.
Fig 7: Identifying Nuts, Gasket And Front Exhaust Pipe From Exhaust Manifold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT EXHAUST PIPE LH
1. Remove the 3 nuts, gasket and front exhaust pipe from the exhaust manifold.
Fig 8: Identifying Nuts, Gasket And Front Exhaust Pipe From Exhaust Manifold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
