Inspection Procedure

HINT:

The shift solenoid valve SL1, 2, 3, 4 and 5 turns ON/OFF normally when the shift lever is on D:

Shift Solenoid Valve Operation:

SHIFT SOLENOID VALVE OPERATION CHART

Gear Position 1st 2nd 3rd 4th 5th 6th 7th 8th
Shift Solenoid Valve SL1 ON ON ON ON ON OFF OFF OFF
Shift Solenoid Valve SL2 OFF OFF OFF OFF ON ON ON ON
Shift Solenoid Valve SL3 OFF OFF ON OFF OFF OFF ON OFF
Shift Solenoid Valve SL4 OFF OFF OFF ON OFF ON OFF OFF
Shift Solenoid Valve SL5 OFF ON OFF OFF OFF OFF OFF ON
  1. CHECK HARNESS AND TRANSMISSION WIRE (TRANSMISSION WIRE - TCM, TRANSMISSION WIRE (SHIFT SOLENOID VALVE SL1, 2, 3, 4 AND 5))
    Fig 1: Checking Harness And Transmission Wire (Transmission Wire - TCM, Transmission Wire
    G04948329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E6 and E7 TCM connectors.
    2. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      E6-6 (SL1+) - E6-5 (SL1-) Always 5.0 to 5.6 Ω
      E6-4 (SL2+) - E6-3 (SL2-) Always 5.0 to 5.6 Ω
      E6-2 (SL3+) - E6-1 (SL3-) Always 5.0 to 5.6 Ω
      E7-7 (SL4+) - E7-6 (SL4-) Always 5.0 to 5.6 Ω
      E7-5 (SL5+) - E7-4 (SL5-) Always 5.0 to 5.6 Ω
      E6-6 (SL1+) or E6-5 (SL1-) - Body ground Always 10 kΩ or higher
      E6-4 (SL2+) - E6-3 (SL2-) - Body ground Always 10 kΩ or higher
      E6-2 (SL3+) - E6-1 (SL3-) - Body ground Always 10 kΩ or higher
      E7-7 (SL4+) - E7-6 (SL4-) - Body ground Always 10 kΩ or higher
      E7-5 (SL5+) - E7-4 (SL5-) - Body ground Always 10 kΩ or higher

    NG: Go to step   3

    OK: GO TO NEXT STEP

  2. REPLACE TCM
    1. Replace the TCM (see REMOVAL  ).

    NEXT: PERFORM AT REGISTRATION (See  REGISTRATION   )

  3. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - TCM)

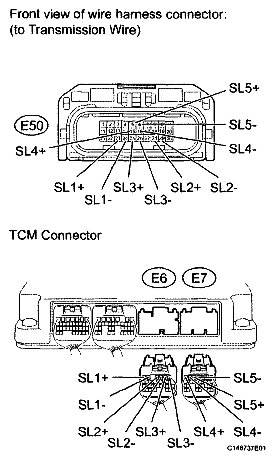

    Fig 2: Checking Harness And Connector (Transmission Wire - TCM)
    G04948330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E50 transmission wire connector.
    2. Disconnect the E6 and E7 TCM connectors.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      E50-23 (SL1+) - E6-6 (SL1+) Always Below 1 Ω
      E50-24 (SL1-) - E6-5 (SL1-) Always Below 1 Ω
      E50-28 (SL2+) - E6-4 (SL2+) Always Below 1 Ω
      E50-29 (SL2-) - E6-3 (SL2-) Always Below 1 Ω
      E50-25 (SL3+) - E6-2 (SL3+) Always Below 1 Ω
      E50-26 (SL3-) - E6-1 (SL3-) Always Below 1 Ω
      E50-15 (SL4+) - E7-7 (SL4+) Always Below 1 Ω
      E50-16 (SL4-) - E7-6 (SL4-) Always Below 1 Ω
      E50-5 (SL5+) - E7-5 (SL5+) Always Below 1 Ω
      E50-6 (SL5-) - E7-4 (SL5-) Always Below 1 Ω
      E50-23 (SL1+) or E6-6 (SL1+)-Body ground Always 10 kΩ or higher
      E50-24 (SL1-) or E6-5 (SL1-)- Body ground Always 10 kΩ or higher
      E50-28 (SL2+) or E6-4 (SL2+) - Body ground Always 10 kΩ or higher
      E50-29 (SL2-) or E6-3 (SL2-) - Body ground Always 10 kΩ or higher
      E50-25 (SL3+) or E6-2 (SL3+) - Body ground Always 10 kΩ or higher
      E50-26 (SL3-) or E6-1 (SL3-) - Body ground Always 10 kΩ or higher
      E50-15 (SL4+) or E7-7 (SL4+) - Body ground Always 10 kΩ or higher
      E50-16 (SL4-) or E7-6 (SL4-) - Body ground Always 10 kΩ or higher
      E50-5 (SL5+) or E7-5 (SL5+) - Body ground Always 10 kΩ or higher
      E50-6 (SL5-) or E7-4 (SL5-) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  4. INSPECT SHIFT SOLENOID VALVE SL1, 2, 3, 4 AND 5
    Fig 3: Checking Shift Solenoid Valve Sl1, 2, 3, 4 And 5
    G04948331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the shift solenoid valves (see REMOVAL  ).
    2. Measure the resistance of the shift solenoid valves.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      Terminal 1 of the shift solenoid valve SL1 -terminal 2 20°C (68°F) 5.0 to 5.6 Ω
      Terminal 1 of the shift solenoid valve SL2 -terminal 2 20°C (68°F) 5.0 to 5.6 Ω
      Terminal 1 of the shift solenoid valve SL3 -terminal 2 20°C (68°F) 5.0 to 5.6 Ω
      Terminal 1 of the shift solenoid valve SL4 -terminal 2 20°C (68°F) 5.0 to 5.6 Ω
      Terminal 1 of the shift solenoid valve SL5 -terminal 2 20°C (68°F) 5.0 to 5.6 Ω
    3. Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

      OK :

      Valve moves and makes operating noise.

    NG: REPLACE SHIFT SOLENOID VALVE (See  REMOVAL   )

    OK: REPAIR OR REPLACE TRANSMISSION WIRE (See  REMOVAL   )
