Position of Parts in Body — 2007 Lexus LS 460L Service Manual ~ LEMON Manuals

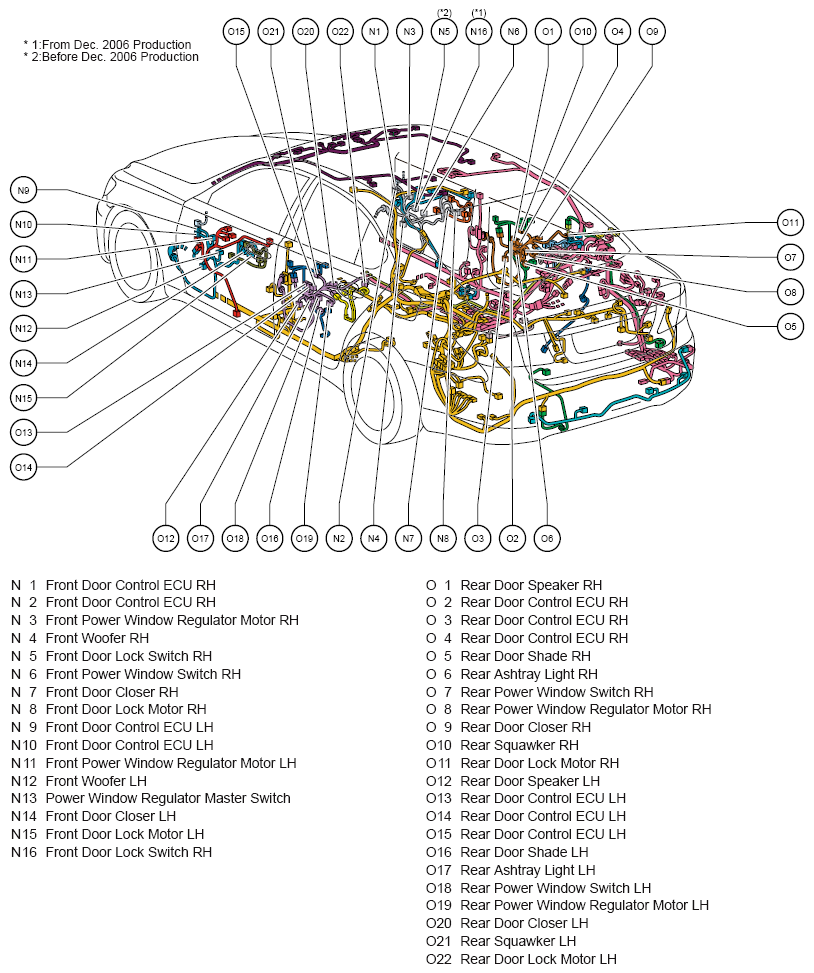

Fig 1: Body Parts (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

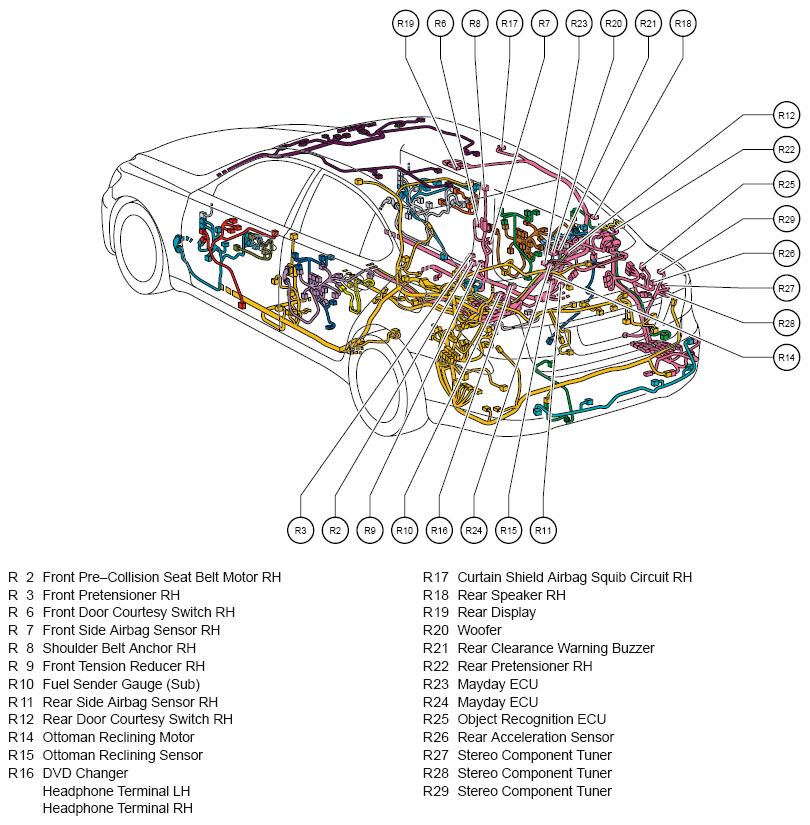

Fig 2: Body Parts (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

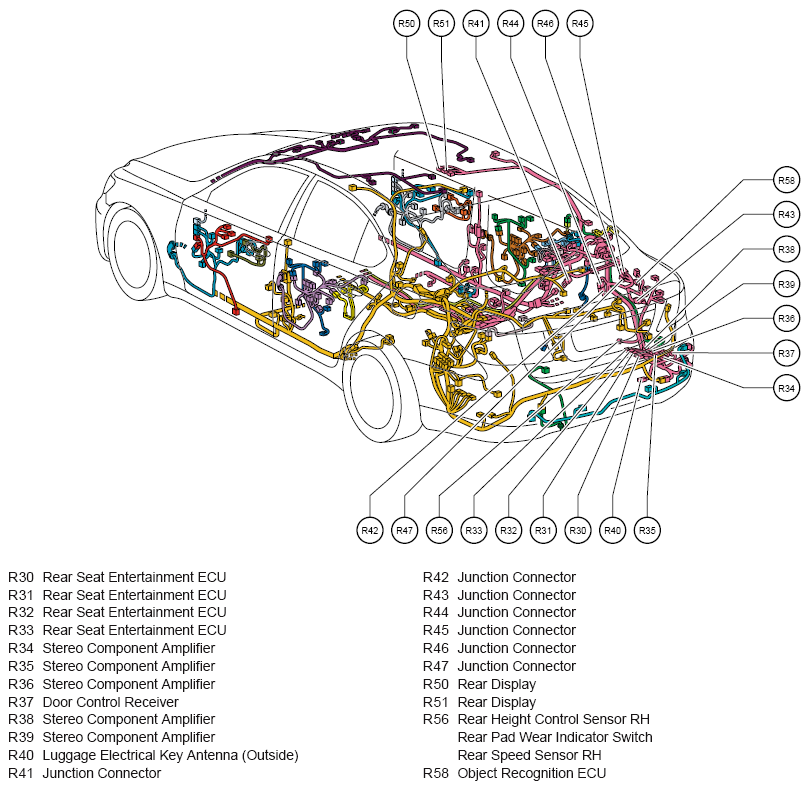

Fig 3: Body Parts (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

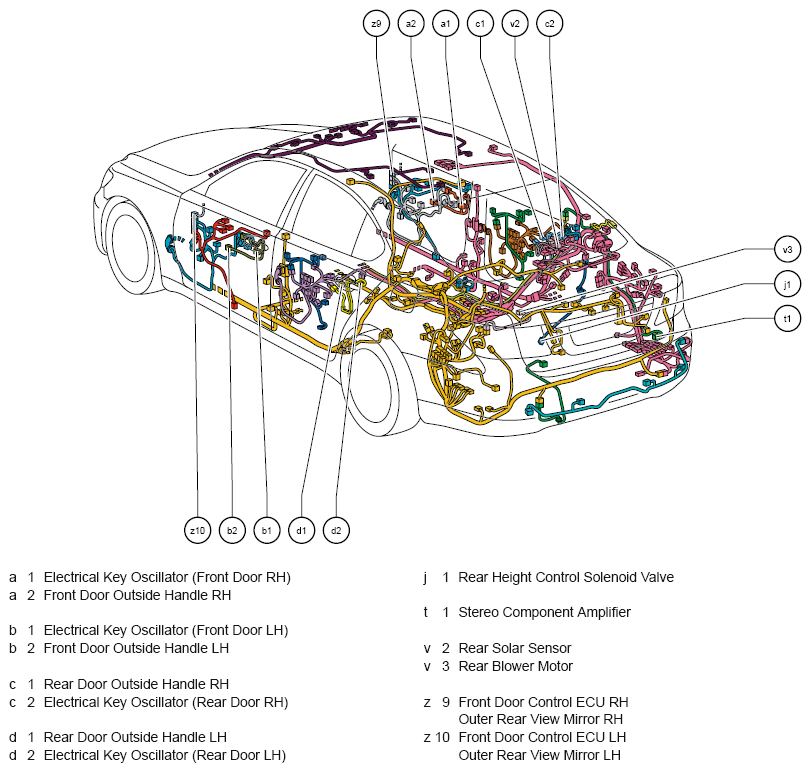

Fig 4: Body Parts (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

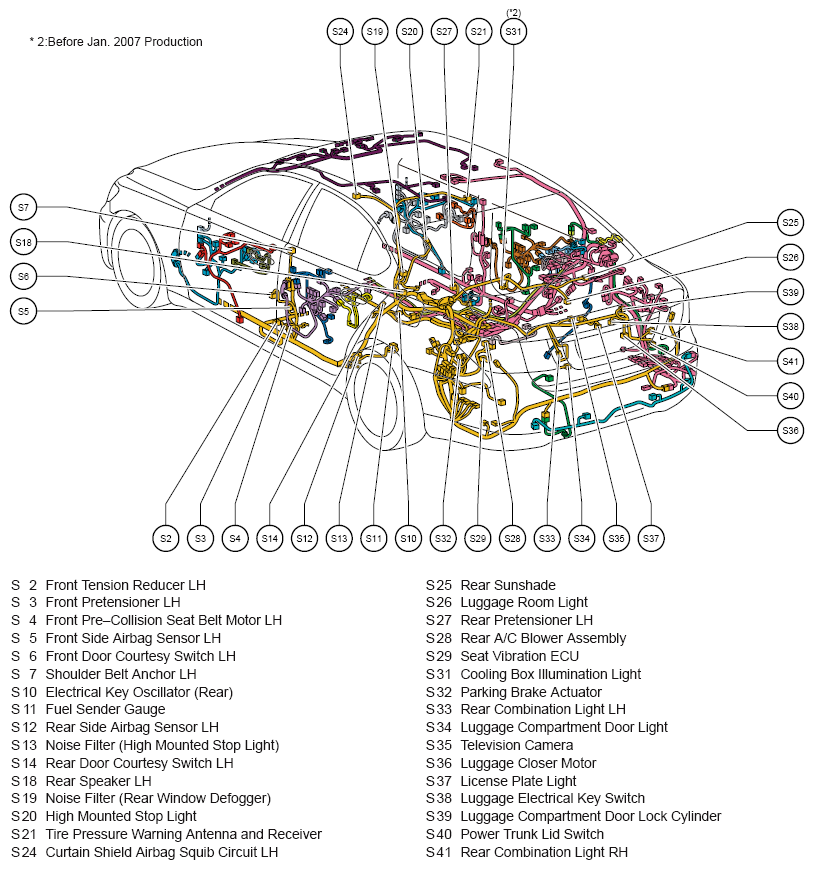

Fig 5: Body Parts (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

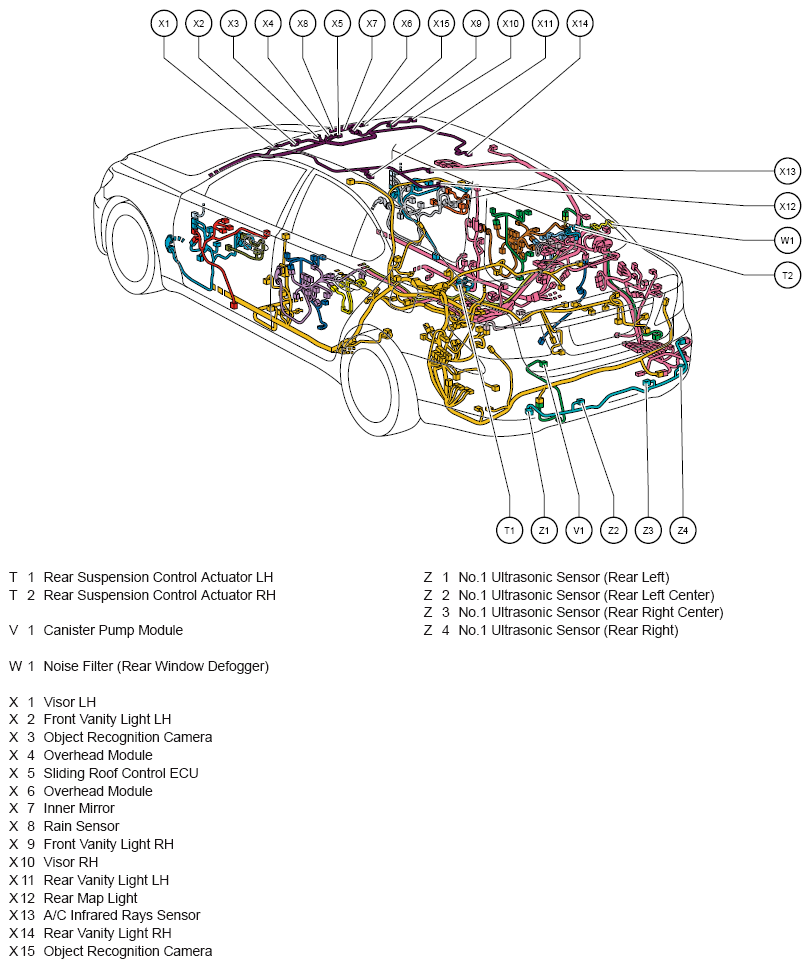

Fig 6: Body Parts (6 Of 8)

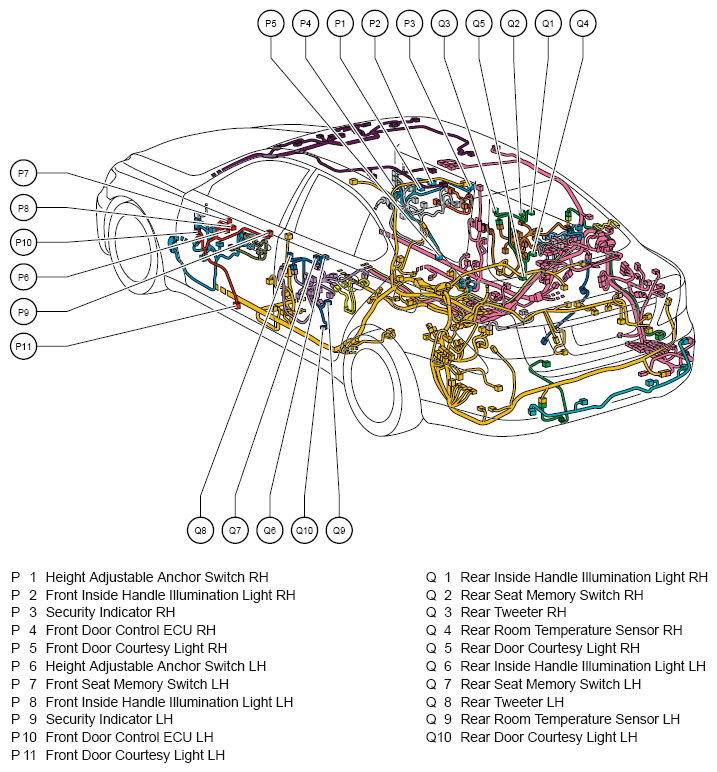

Fig 7: Body Parts (7 Of 8)

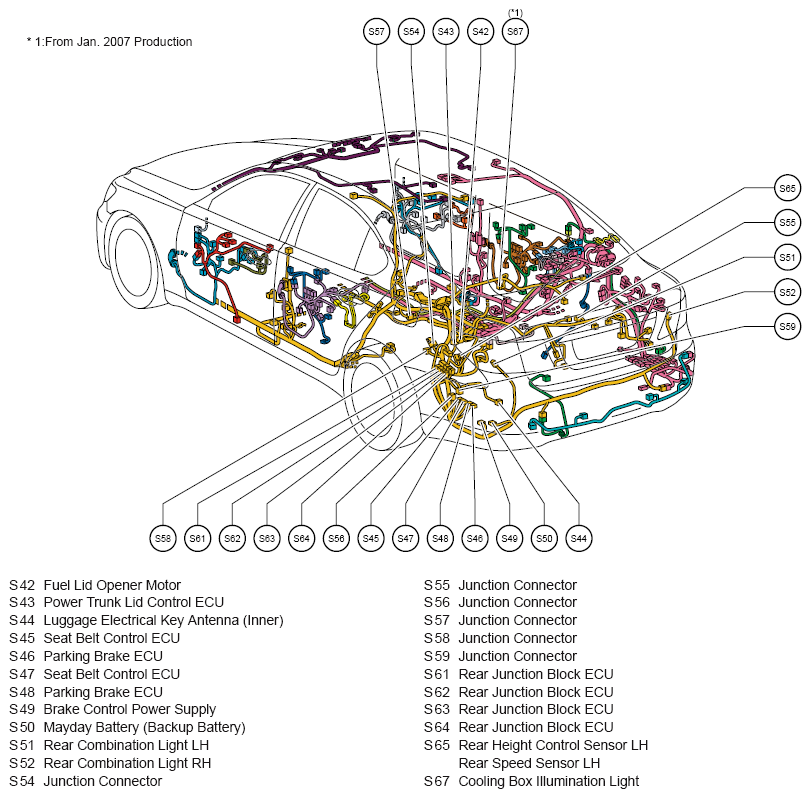

Fig 8: Body Parts (8 Of 8)
