: Location of Connector Joining Wire Harness and Wire Harness: [w/Ottoman]

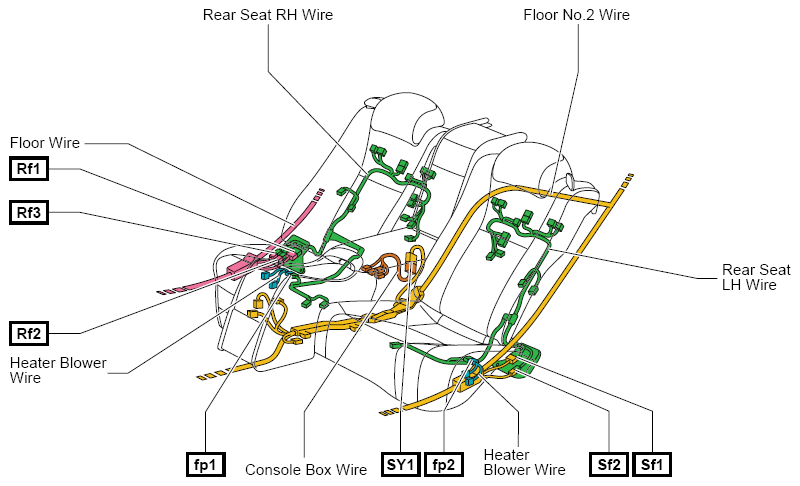

Fig 1: Locating Wiring Harnesses (W/Ottoman)

G08920495

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
