SEAT MEMORY SWITCH (for Rear Side): Inspection

  1. INSPECT REAR SEAT MEMORY SWITCH LH

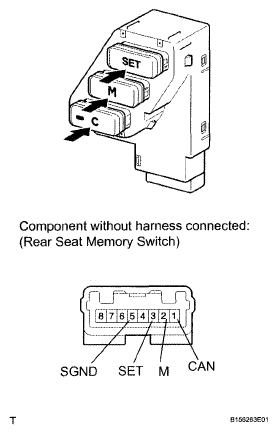

      Fig 1: Identifying Rear Seat Memory Switch LH Connector Terminals
      G04953092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      REAR SEAT MEMORY SWITCH LH

      Tester Connection Switch Condition Specified Condition
      3 (SET) - 5 (SGND) SET switch ON Below 1 Ω
      2 (M) - 5 (SGND) M switch ON Below 1 Ω
      1 (CAN) - 5 (SGND) C switch ON Below 1 Ω

      If the result is not as specified, replace the switch.

  2. INSPECT REAR SEAT MEMORY SWITCH RH

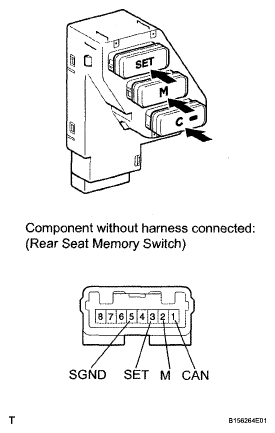

      Fig 2: Identifying Rear Seat Memory Switch RH Connector Terminals
      G04953093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      REAR SEAT MEMORY SWITCH RH

      Tester Connection Switch Condition Specified Condition
      3 (SET) - 5 (SGND) SET switch ON Below 1 Ω
      2 (M) - 5 (SGND) M switch ON Below 1 Ω
      1 (CAN) - 5 (SGND) C switch ON Below 1 Ω

      If the result is not as specified, replace the switch.
