SEAT CLIMATE CONTROL SWITCH (for Rear Side): Components

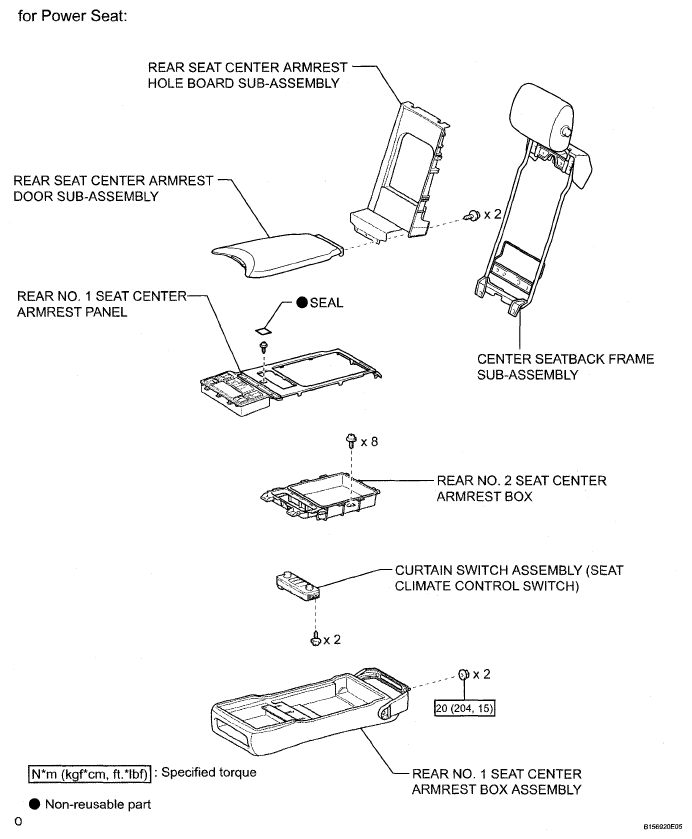

Fig 1: Seat Climate Control Switch Replacement Components With Torque Specifications (For Rear Side)
G04953186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
