REAR SEATBACK HEATER (for Power Seat): Components

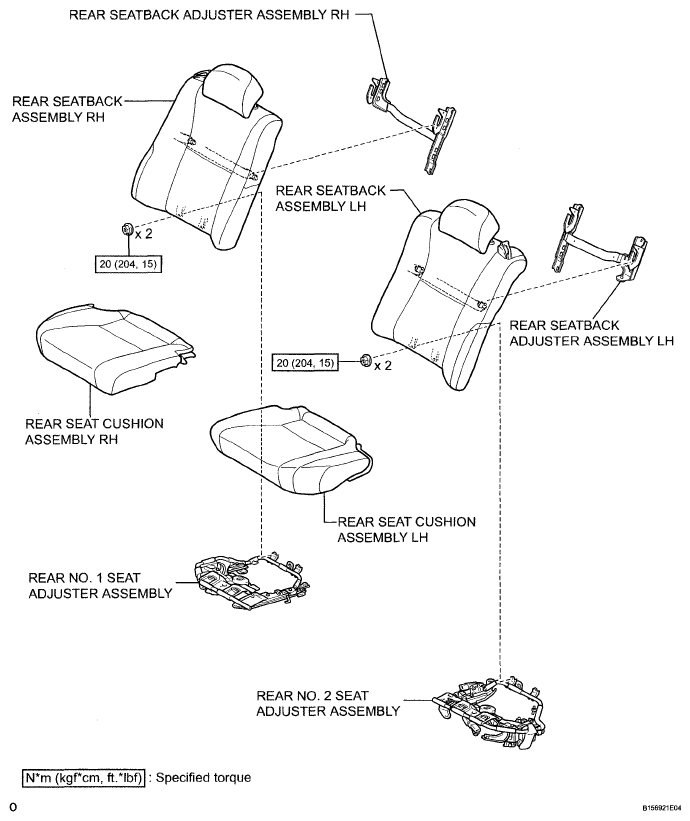

Fig 1: Rear Seatback Heater Replacement Components With Torque Specifications (For Power Seat) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

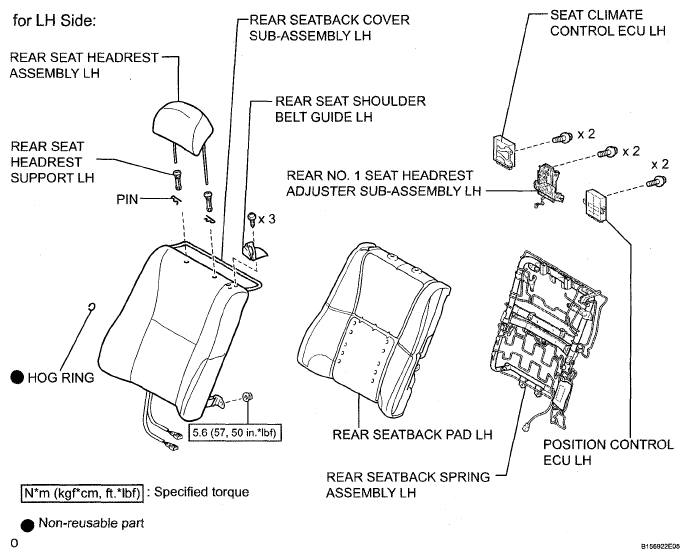

Fig 2: Rear Seatback Heater Replacement Components With Torque Specifications (For Power Seat) (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

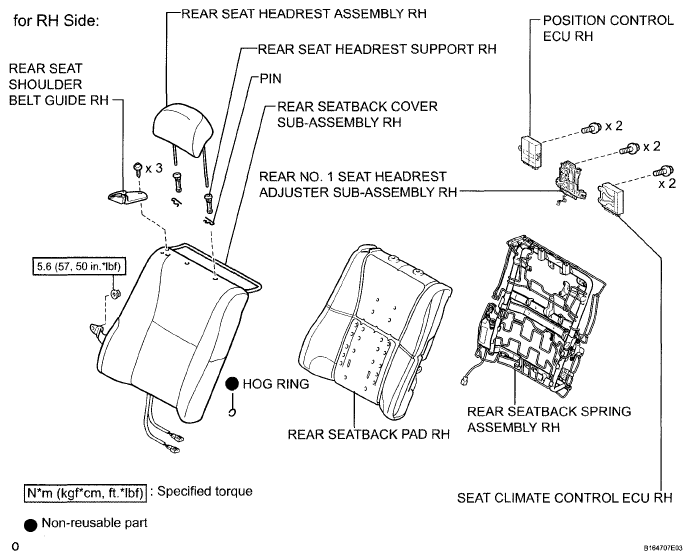

Fig 3: Rear Seatback Heater Replacement Components With Torque Specifications (For Power Seat) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
