REAR SEATBACK HEATER (for Ottoman): Components

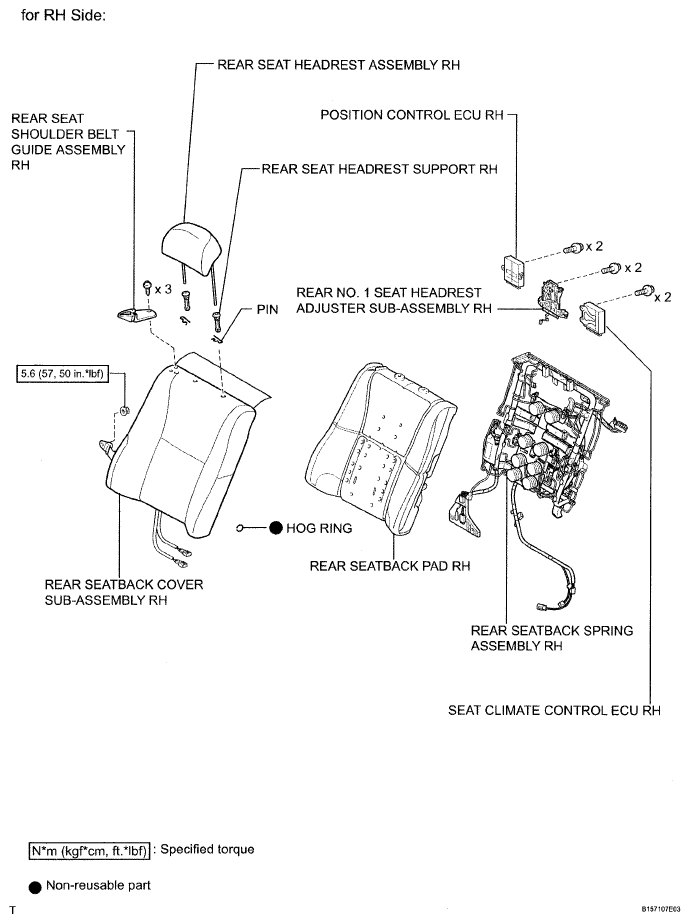

Fig 1: Rear Seatback Heater Replacement Components With Torque Specifications (For Ottoman) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Seatback Heater Replacement Components With Torque Specifications (For Ottoman) (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

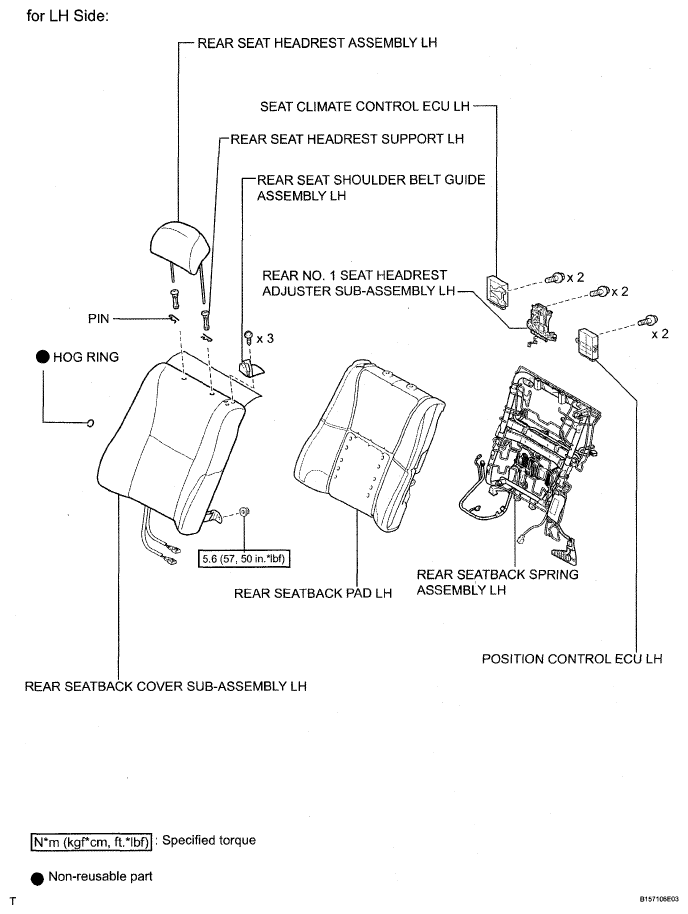

Fig 3: Rear Seatback Heater Replacement Components With Torque Specifications (For Ottoman) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
