REAR POWER SEAT MOTOR ASSEMBLY (for Power Seat): Components

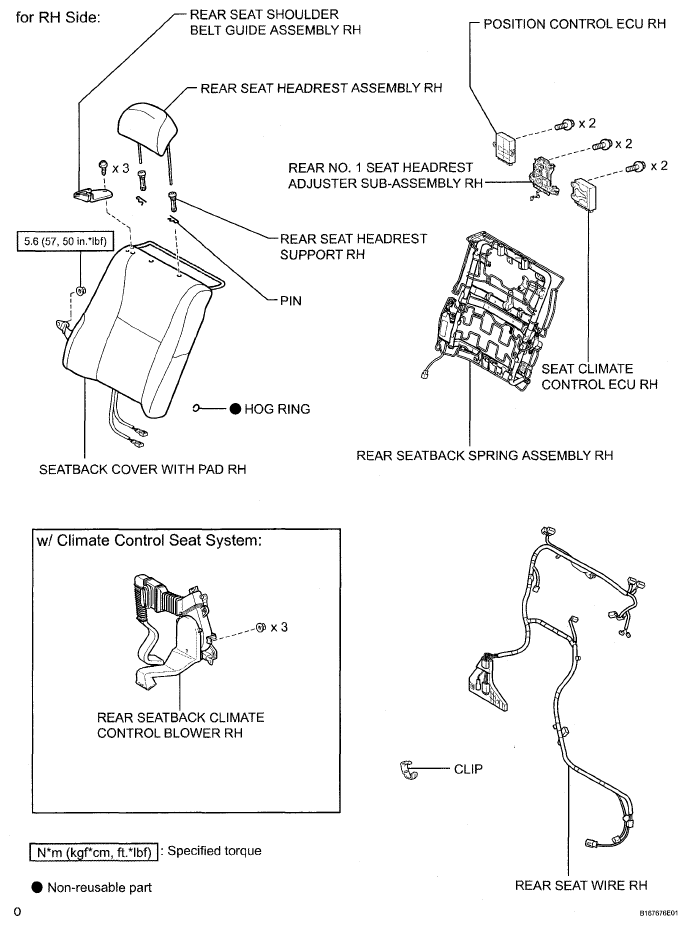

Fig 1: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Power Seat) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

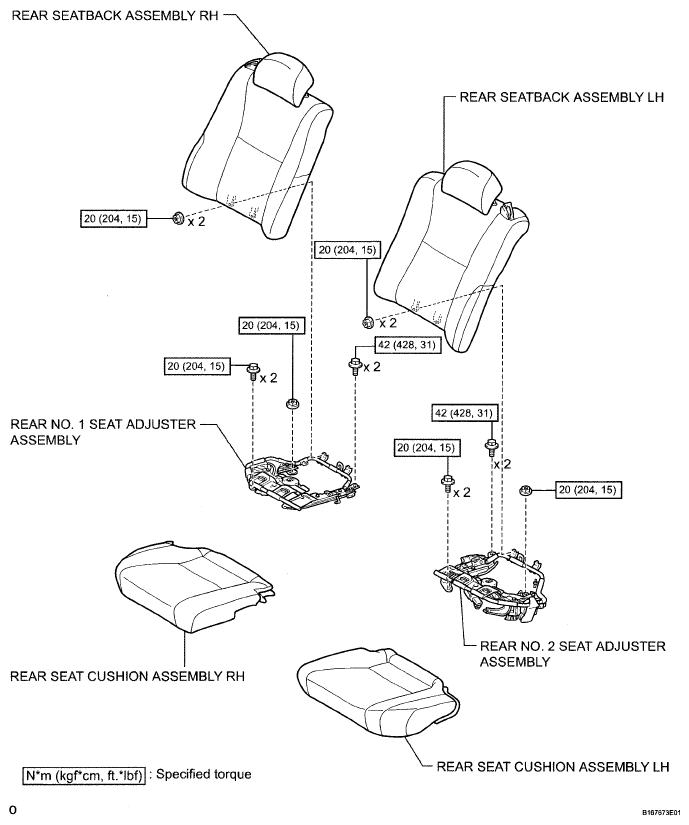

Fig 2: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Power Seat) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

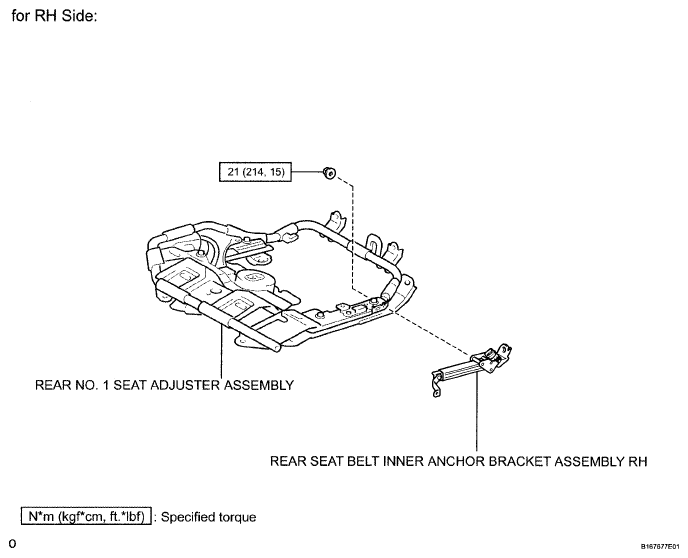

Fig 3: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Power Seat) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

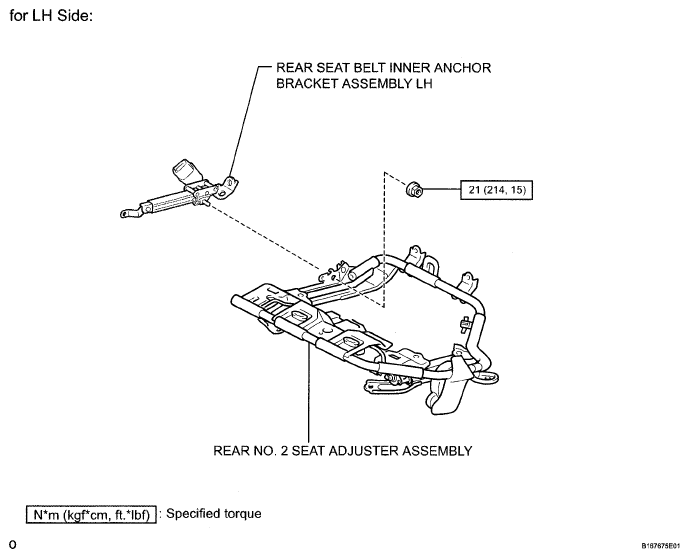

Fig 4: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Power Seat) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

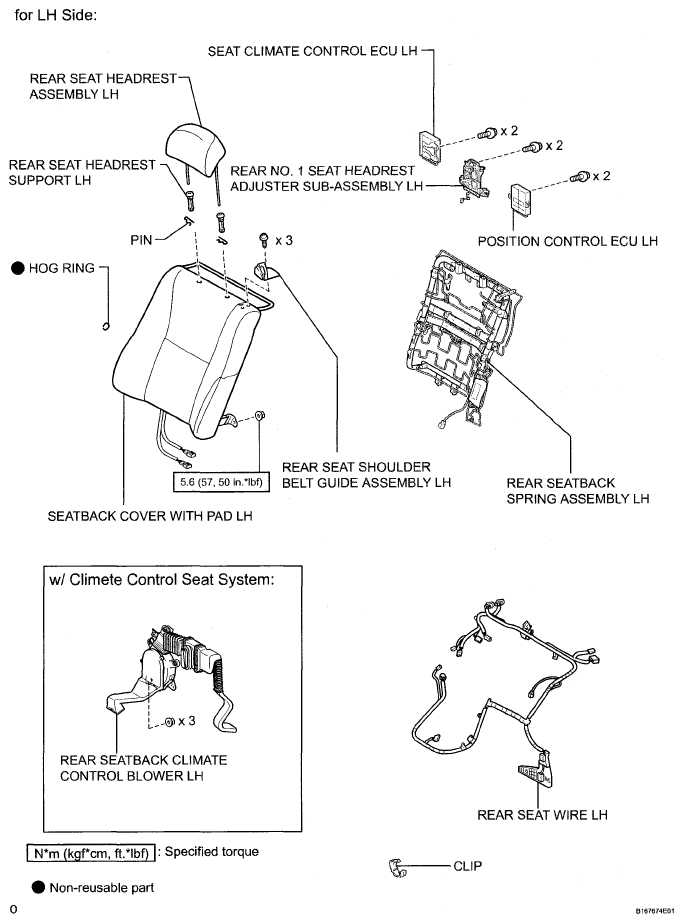

Fig 5: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Power Seat) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
